Chapter 18: Setting LLDP and LLDP-MED

220

Enabling LLDP-

MED TLV

To enable LLDP-MED TLV, do the following:

1. Select the Discovery & Monitoring tab.

The Discovery & Monitoring tab is displayed. See Figure 68 on page

201.

2. From the Discovery & Monitoring tab, select LLDP and then select

TLV.

The LLDP TLV tab is displayed. See Figure 81 on page 217.

3. From the LLDP TLV tab, select TLV-MED.

The LLDP MED TLV page is displayed. See Figure 84.

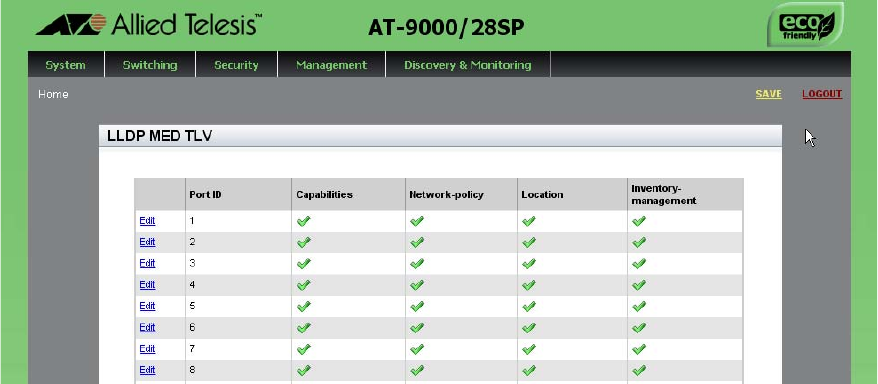

Figure 84. LLDP MED TLV Page

The following fields are displayed:

 Port Id— Indicates the port number.

 Capabilities— Indicates the device’s router and bridge functions,

and whether or not these functions are currently enabled.

 Network-policy— The network policy information configured on

the port for connected media endpoint devices. The switch

supports Application Type 1: Voice, including the following network

policy for connected voice devices to use for voice data:

- Voice VLAN ID

- Voice VLAN Class of Service (CoS) priority

- Voice VLAN Diffserv Code Point (DSCP)
