AlliedWare Plus Version 2.1.2 Management Software Web Browser User’s Guide
213
The LLDP Port Config page is displayed. See Figure 77.

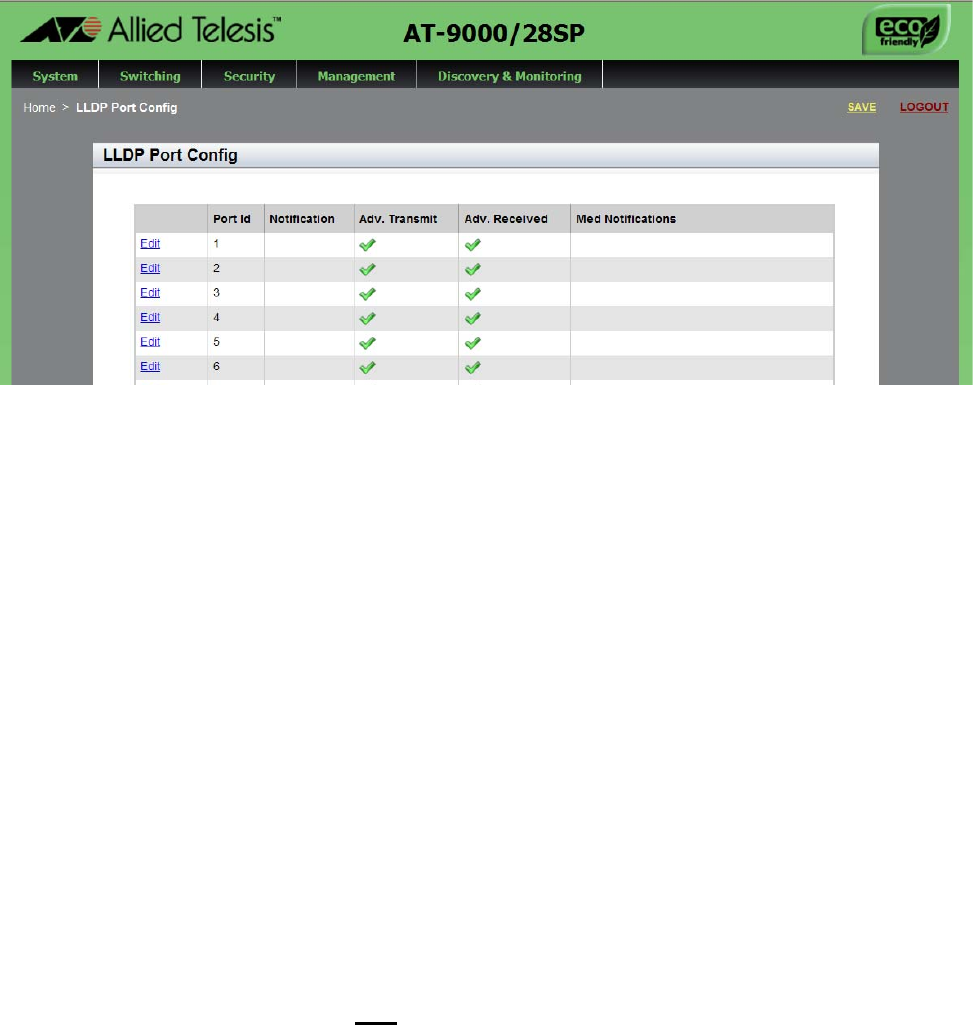

Figure 77. LLDP Port Config Page
The following fields are displayed:
Port Id— Indicates the port number.
Notification— Configures the switch to send LLDP-MED topology
change notifications when devices are connected to or
disconnected from the specified ports. By default, this field is not
selected.
Adv. Transmit— Configures ports to send LLDP advertisements.
Ports configured to transmit LLDP advertisements send the
mandatory TLVs and any optional LLDP TLVs they have been
configured to send. By default, this field is selected.
Adv. Receive— Configures ports to accept LLDP advertisements.
Ports configured to receive LLDP advertisements accept all
advertisements from their neighbors. By default, this field is
selected.
Med Notifications— Indicates the switch sends LLDP-MED
topology change notifications when devices are connected to or
disconnected from the specified ports. By default, this field is not
selected.
3. Select Edit
next to the port that you want to modify.
