Chapter 18: Setting LLDP and LLDP-MED

206

The LLDP Coordinate Location page is displayed. See Figure 73.

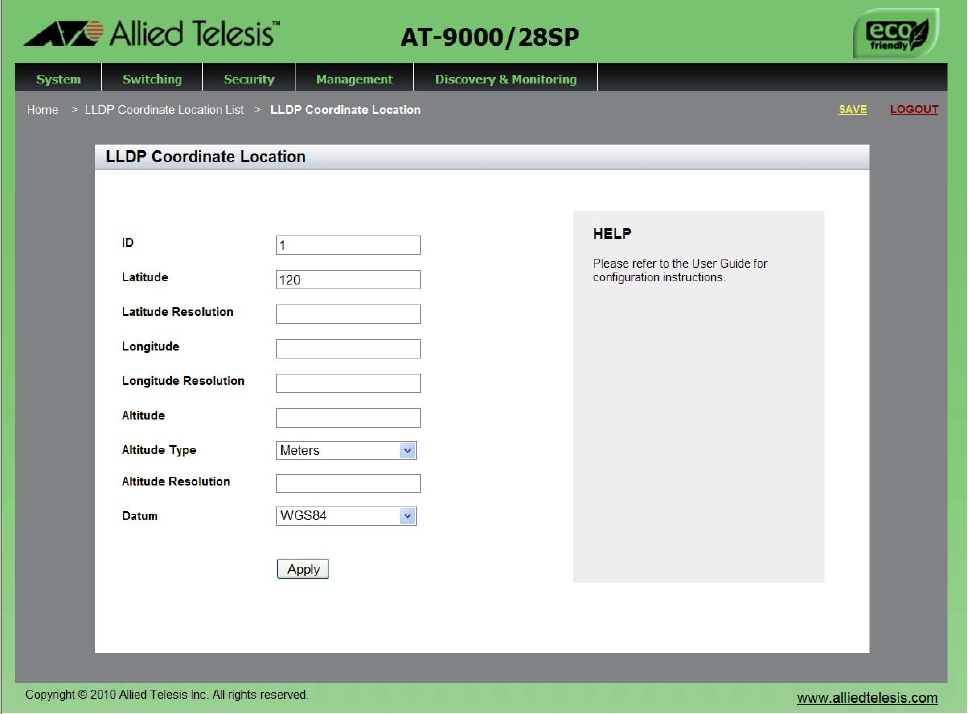

Figure 73. LLDP Coordinate Location Page— Modify

6. Change the following fields as needed:

 Id— Specifies the LLDP Coordinate Location ID.

 Latitude— Indicates the latitude value in decimal degrees. The

range is -90.0º to 90.0º. The field accepts up to two digits to the

right of the decimal point.

 Latitude Resolution— Indicates the latitude resolution as the

number of valid bits. The range is 0 to 34 bits.

 Longitude— Specifies the longitude value in decimal degrees.

The range is -180.0º to 180.0º. The field accepts up to two digits to

the right of the decimal point.

 Longitude Resolution— Specifies the longitude resolution as the

number of valid bits. The range is 0 to 34 bits.

 Altitude— Specifies the altitude in meters or floors. For the

altitude in meters, the range is -2097151.0 to 2097151.0 meters.

The parameter accepts up to eight digits to the right of the decimal
