AlliedWare Plus Version 2.1.2 Management Software Web Browser User’s Guide

191

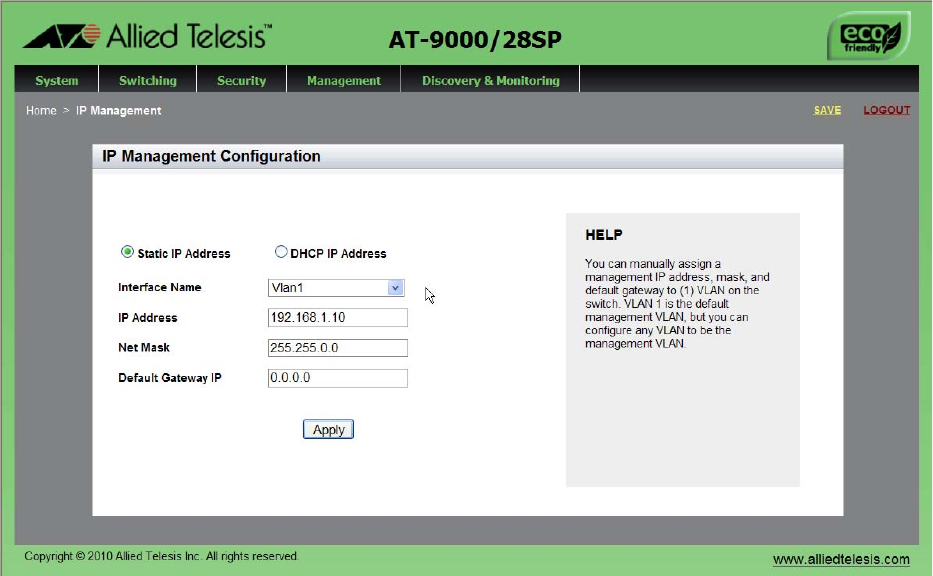

The IP Management Configuration page with the Static IP Address

field selected is displayed. See Figure 65.

Figure 65. IP Management Configuration Page with Static IP Address

3. Click the box next to the Static IP Address field. This is the default

setting.

4. Assign a VLAN to the IPv4 address by using the pull-down menu next

to the Interface Name field.

You can only select a VLAN that you have configured previously. For

information about how to assign a VLAN, see Chapter 11, “Setting

Port-based and Tagged VLANs” on page 127.

5. Enter an IPv4 address in the IP Address field in the following format:

xxx.xxx.xxx.xxx

where x is a number from 0 to 255. There are four groups of numbers

that are separated by periods.

6. Enter a value in the Net Mask field to assign a subnet mask to the

switch.
