AlliedWare Plus Version 2.1.2 Management Software Web Browser User’s Guide

171

4. Change the following fields as needed:

 Timeout Value— Indicates the length of the time, in seconds, that

the switch waits for a response from a RADIUS server to an

authentication request, before querying the next server in the

list.The default value is 10.

 Key Value— Indicates the value of the global encryption key of the

RADIUS servers. You can define a global encryption key if you

have one RADIUS server or if there is more than one server and

they all use the same encryption key. This value is used by the

RADIUS clients. The maximum length is 39 characters. Spaces

and special characters are not permitted. The default value is

“ATI.”

Note

To define two or three servers that use different encryption keys, do

not enter a global encryption key value on this web page. Instead,

define the individual keys when you add the IP addresses of the

servers to the client on the RADIUS Server Configuration Page. See

the following steps.

5. Click Add

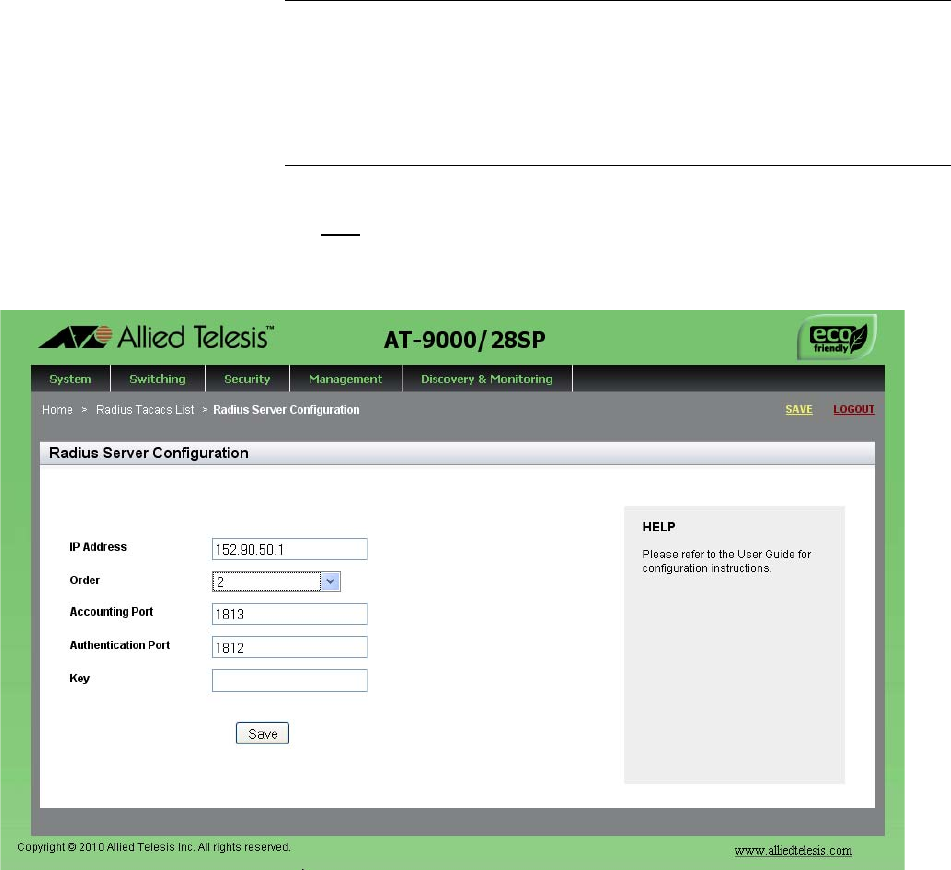

The Radius Server Configuration page is displayed. See Figure 58.

Figure 58. Radius Server Configuration Page
