AlliedWare Plus Version 2.1.2 Management Software Web Browser User’s Guide

169

Note

To define two or three servers that use different encryption keys, do

not enter a global encryption key value on this web page. Instead,

define the individual keys when you add the IP addresses of the

servers to the client on the TACACS+ Add Page. See the following

steps.

5. Click Apply.

Choose the Apply button nearest the Key Value field.

6. Click Add

at the bottom of the page.

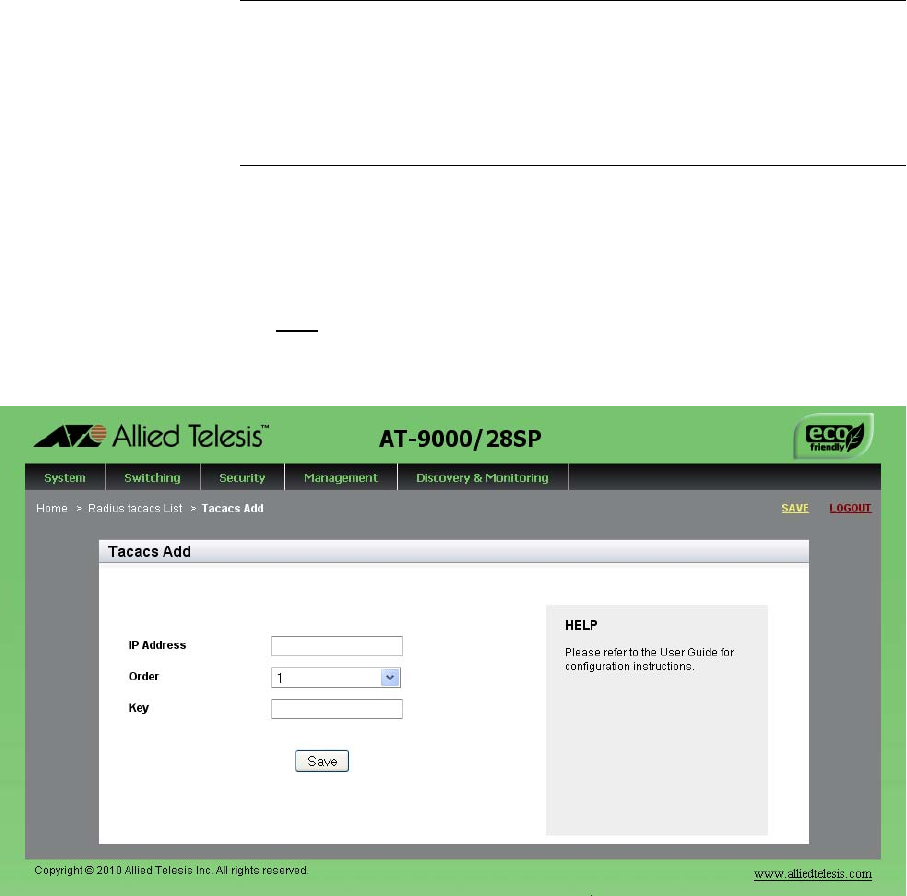

The Tacacs Add page is displayed. See Figure 56.

Figure 56. Tacacs Add Page

7. Change the following settings as needed:

 IP Address— Enter the IP address of the TACACS+ server. The IP

address must be in the following IPv4 format: xxx.xxx.xxx.xxx.

 Order— Select an index number for the IP address which indicates

the priority of the TACACS+ server. The switch queries the servers

in the order in which they are listed in its table, starting with 1. The

range is 1 to 3.
