Chapter 15: Setting RADIUS and TACACS+ Clients

166

Selecting the Authentication Method

To choose either RADIUS or TACACS+ as the authentication method for

the switch, do the following:

1. Select the Security tab.

The Security tab is displayed. See Figure 52 on page 158.

2. From the Security tab, select Authentication Servers.

The Authentication Server Configuration page is displayed. By default,

the TACACS+ tab is selected. See Figure 55.

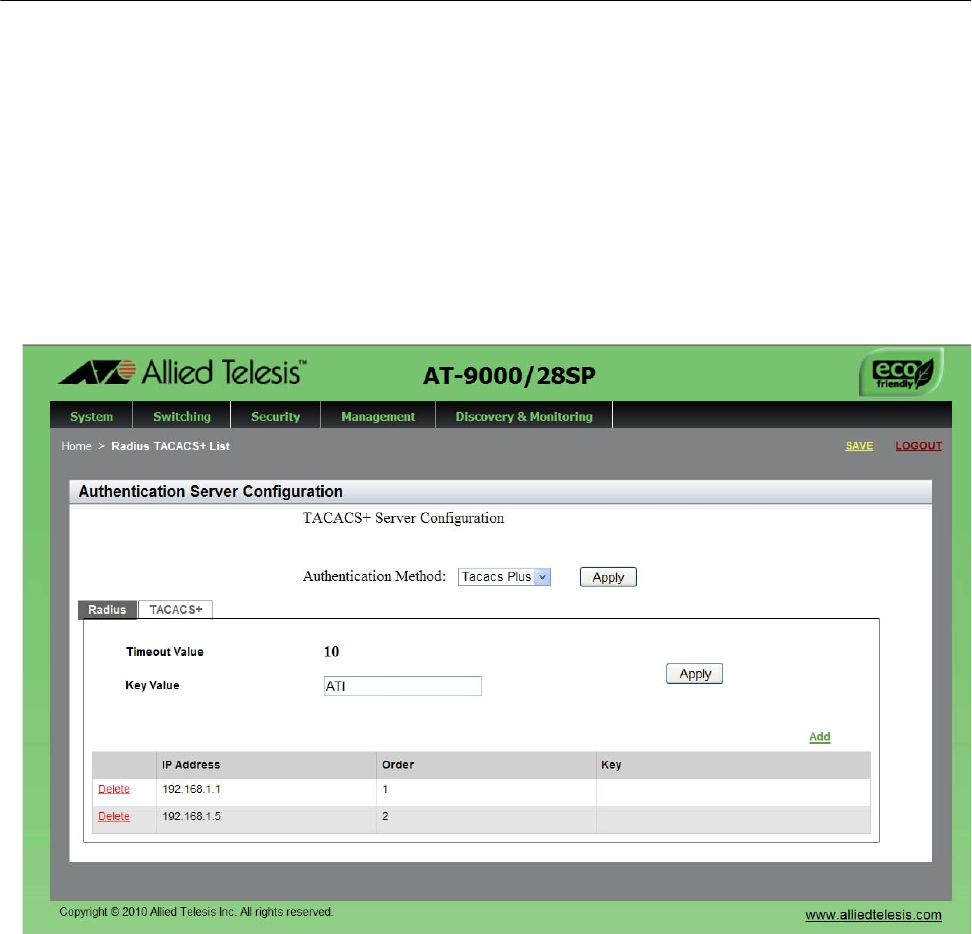

Figure 55. Authentication Server Configuration Page with TACACS+ Tab

3. Use the pull-down menu next to the Authentication Method field to

choose from the following:

 None— Indicates there is no authentication method assigned to

the switch.

 Tacacs Plus— Selects Tacacs+ as the authentication method.

 Radius— Selects RADIUS as the authentication method.
