AlliedWare Plus Version 2.1.2 Management Software Web Browser User’s Guide

153

Displaying the Hosts List

To display the IGMP Hosts List, do the following:

1. Select the Switching tab.

The Switching tab is displayed. See Figure 19 on page 58.

2. From the Switching tab, select IGMP.

The IGMP Snooping page is displayed with the Configuration tab

selected by default. See Figure 49 on page 147.

3. Click the Hosts List tab.

The Hosts List page is displayed. See Figure 51.

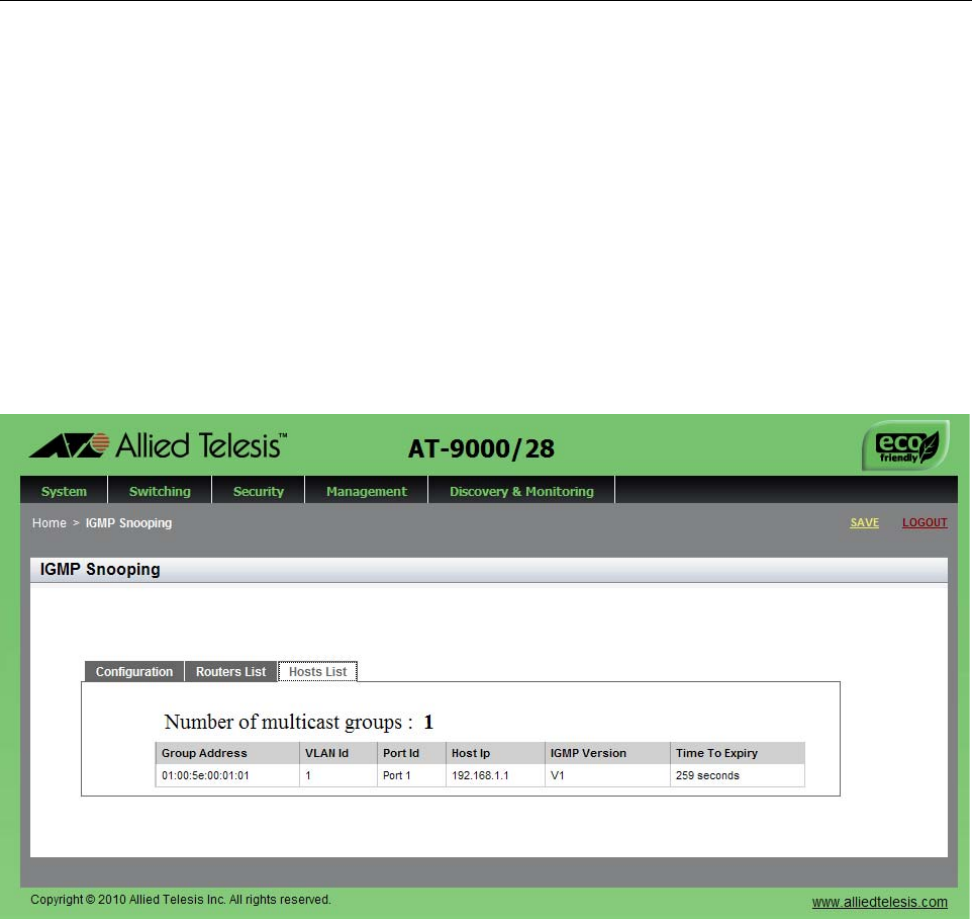

Figure 51. IGMP Snooping Page with Hosts List Tab

The following settings are displayed:

 Group Address— Indicates the multicast addresses of the

groups.

 VLAN ID— Indicates the VLAN ID of the host nodes.

 Port ID— Specifies the ports of the host nodes. If the host nodes

are on port trunks, this field displays the trunk ID numbers instead

of the port numbers.

 Host IP— Specifies the IP addresses of the host nodes.
