AlliedWare Plus Version 2.1.2 Management Software Web Browser User’s Guide

139

Displaying Switch Spanning Tree Protocol Settings

To display the switch Spanning Tree Protocol settings do the following:

1. Select the Switching tab.

The Switching tab is displayed. See Figure 19 on page 58.

2. From the Switching tab, select Spanning Tree.

The Spanning Tree Settings page is displayed. See Figure 48.

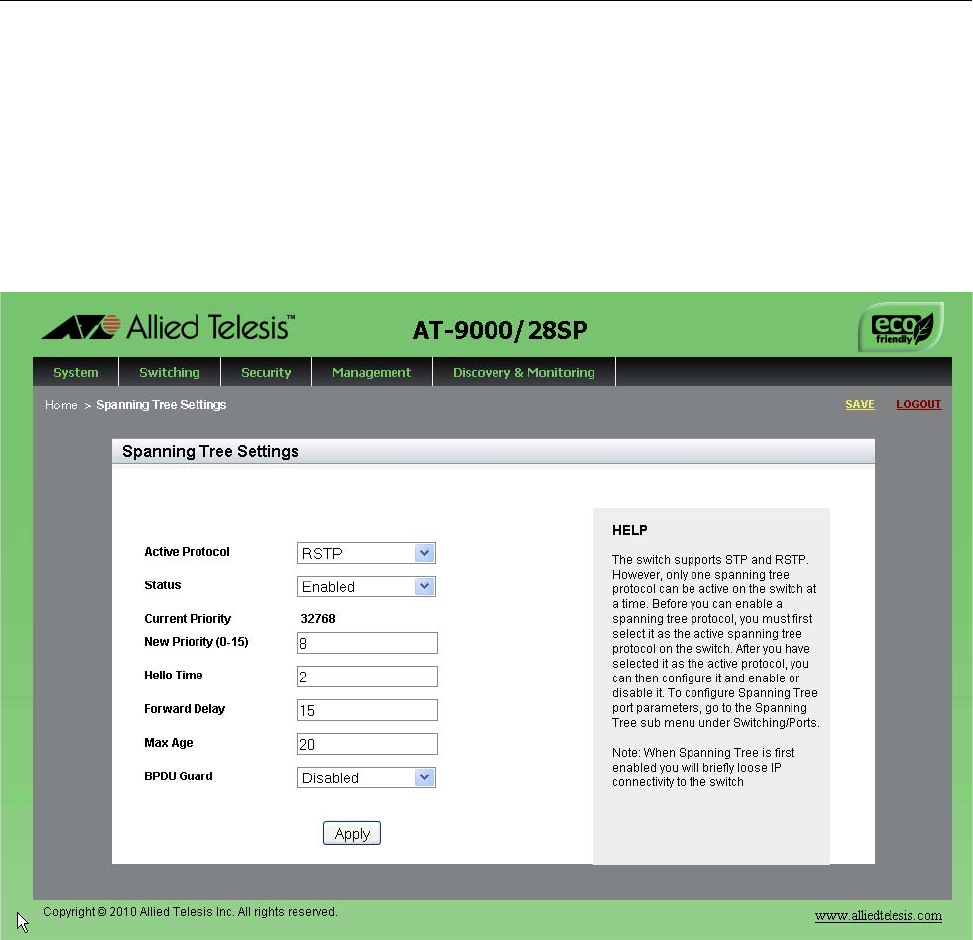

Figure 48. Spanning Tree Settings Page

The following fields are displayed:

 Active Protocol— Indicates if the active spanning tree protocol is

STP or RSTP. The default setting is RSTP.

 Status— Indicates if the spanning tree protocol is enabled or

disabled on the switch.

 Current Priority— By default, the current priority is set to 32,768.

You cannot change this field.
