Chapter 11: Setting Port-based and Tagged VLANs

134

Modifying VLANs

To modify the LACP Trunk settings, see the following procedure:

1. Select the Switching tab.

The Switching tab is displayed. See Figure 19 on page 58.

2. From the Switching tab, select Virtual LANs.

The Virtual LANs page is displayed. See Figure 45 on page 130.

3. From the VLANs page, click Edit

next to the VLAN ID that you want to

modify.

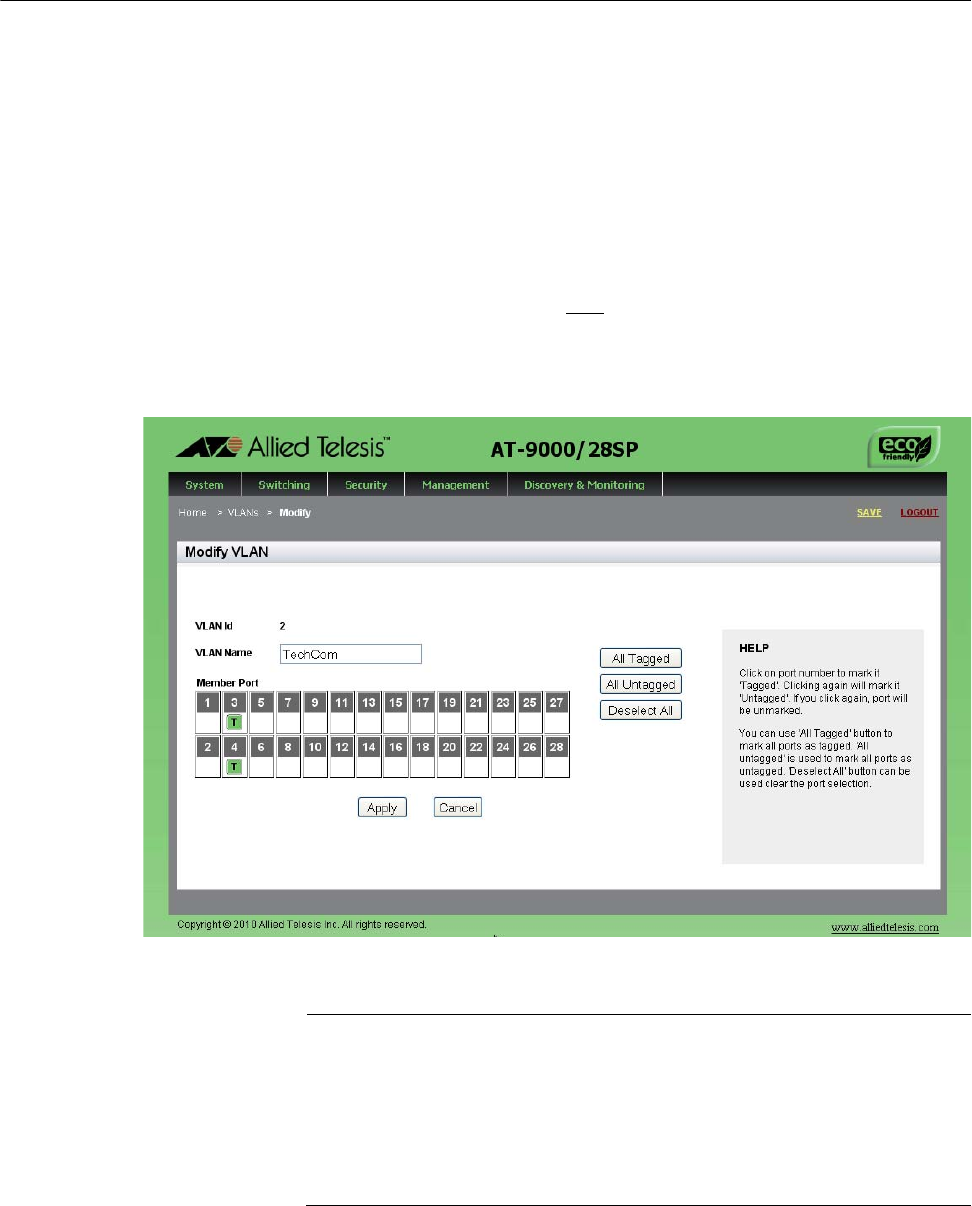

The Modify VLAN page is displayed. See Figure 47.

Figure 47. Modify VLAN Page

Note

The Vlan ID specifies a VLAN identifier. The range is 2 to 4094. The

VID 1 is reserved for the Default_VLAN. The VID cannot be the

same as the VID of an existing VLAN on the switch. If this VLAN is

unique in your network, its VID must also be unique. However, if this

VLAN is part of a larger VLAN that spans multiple switches, the VID

value for the VLAN must be the same on each switch.
