AlliedWare Plus Version 2.1.2 Management Software Web Browser User’s Guide
111
Modifying an LACP Trunk
To modify the LACP Trunk settings, see the following procedure:
1. Select the Switching tab.
The Switching tab is displayed. See Figure 19 on page 58.
2. From the Switching tab, select Link Aggregation.
For an example of the Link Aggregation selection, see Figure 37 on
page 107.
3. Move the cursor to the right and select LACP.
The LACP Trunks page is displayed. See Figure 38 on page 107.
4. From the LACP Trunks page, click Edit
next to the Aggregator ID that
you want to change.
The Modify LACP Trunk page is displayed. See Figure 40.

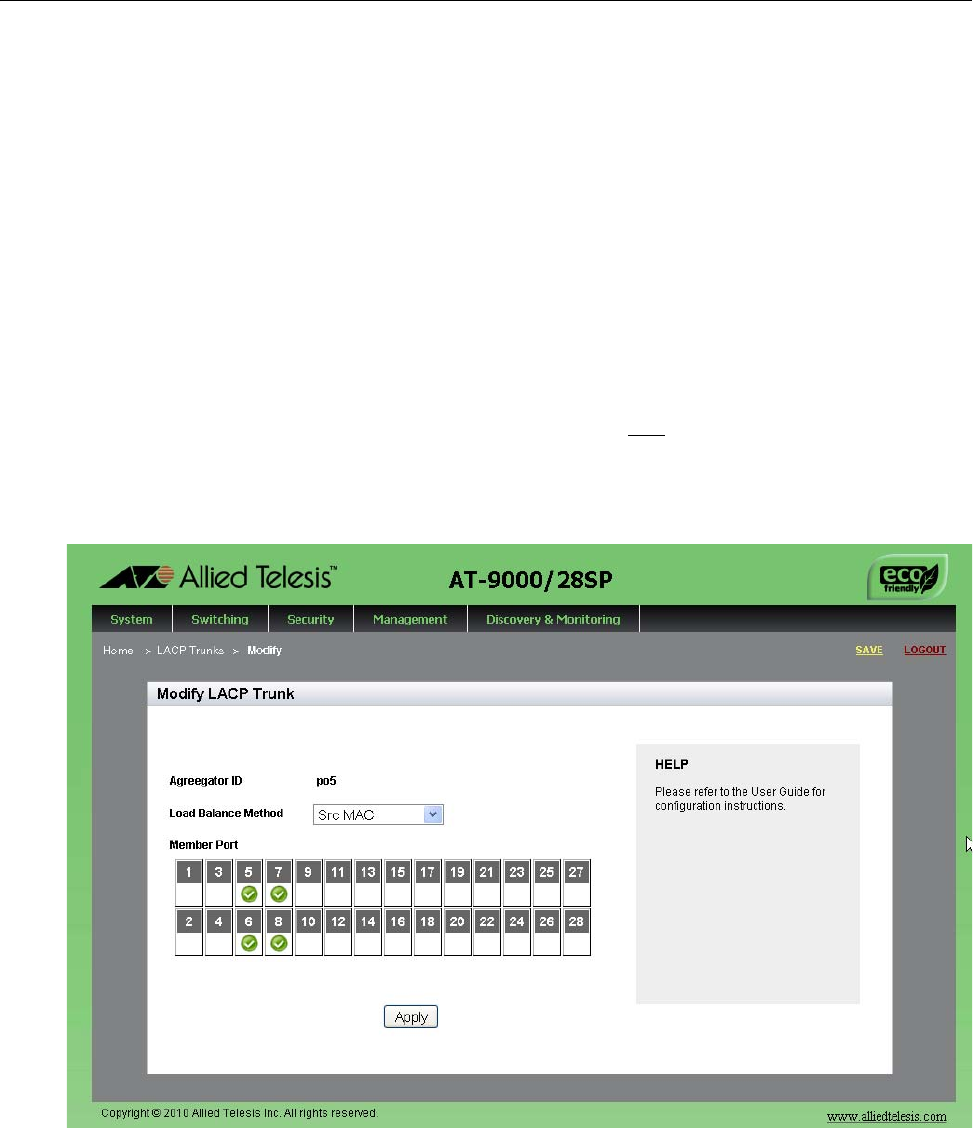

Figure 40. Modify LACP Trunk Page
