x600 Layer 3 Gigabit Ethernet Switch Installation Guide
83
Installing an XFP
Transceiver
To install an XFP transceiver in an x600 switch, perform the following
procedure:
1. Remove the dust plug from a transceiver slot on the switch. Refer to

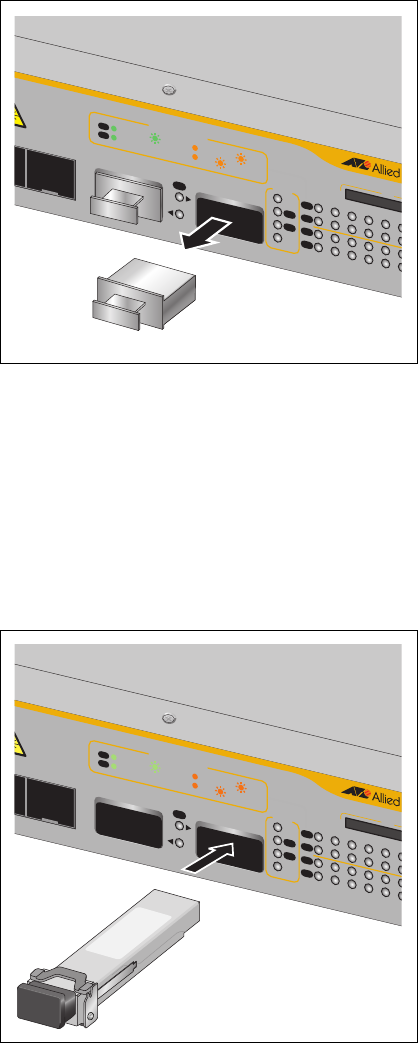

Figure 43.
Figure 43. Removing an XFP Dust Plug
2. Remove the transceiver from its shipping container and store the
packaging material in a safe location.
3. Position the transceiver with the label facing down.
4. Slide the transceiver into the slot until it clicks into place.
Figure 44. Installing an XFP Transceiver
