Chapter 3: Installing the Hardware
70
5. Install the second rack-mount bracket on the other side of the switch
with the four remaining screws.
6. Mount the switch in a 19-inch rack using standard screws (not
provided), as shown in Figure 32.

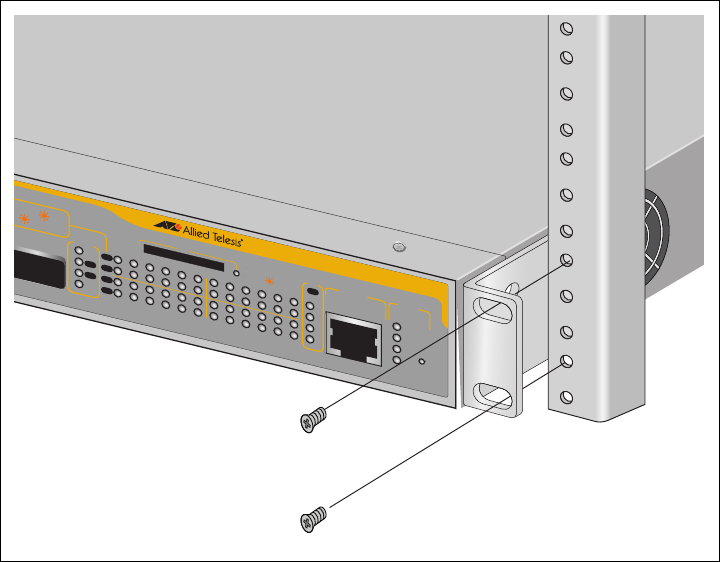

Figure 32. Mounting the Switch in a Rack
1328
x600-24Ts/XP
Layer 3 Gigabit Ethenet Switch
