x600 Series Layer 3 Gigabit Ethernet Switches Installation Guide
37
STACK LEDs
The STACK LEDs reflect the link status of the two stack ports on the
AT-StackXG Stacking Module and if the switch is the master unit of the
stack. To locate the STACK LEDs for any of the non-PoE x600 switches,
see Figure 17. To locate the STACK LEDs for the x600-24/Ts-POE switch,
see Figure 18.

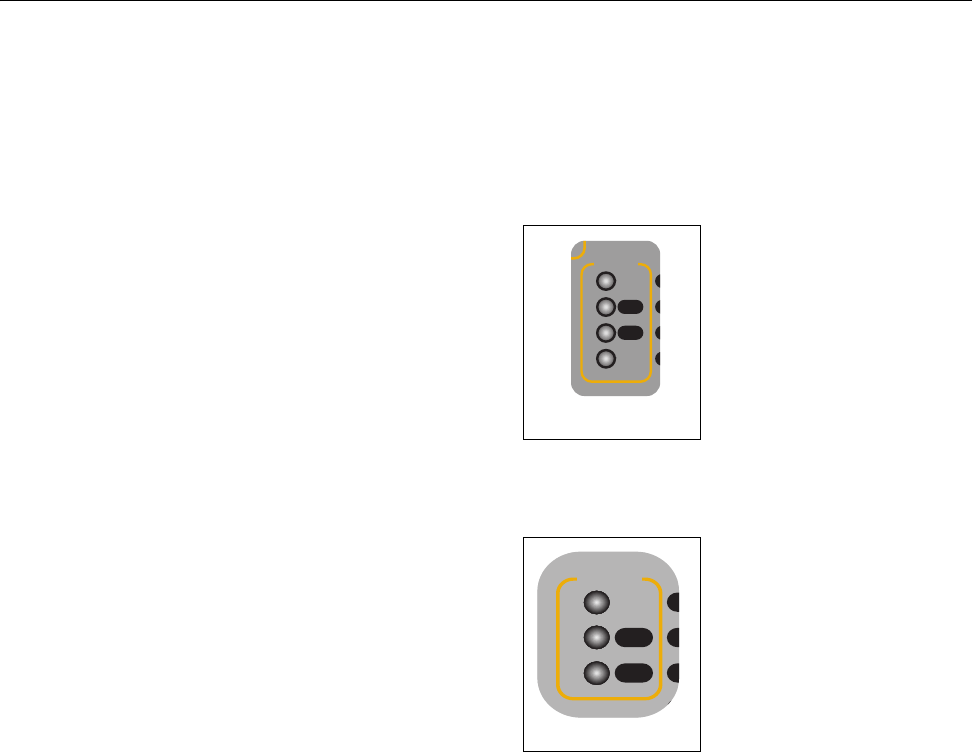

Figure 17. Non PoE Switch STACK LEDs
Figure 18. x600-24/Ts-POE STACK LEDs
These LEDs remain off if the module or the stack cables are not installed.
See Table 7 on page 38 for a description of the STACK LEDs.
1623
