x600 Series Layer 3 Gigabit Ethernet Switches Installation Guide
35
Figure 14. SFP LEDs - x600-48 Port Switch
XFP Transceiver
Slot LEDs
Each 10 Gigabit Ethernet transceiver slot on the x600-24Ts/XP and x600-
48Ts/XP switches has one LED as shown in Figure 15 and defined in
Table 5 on page 35.

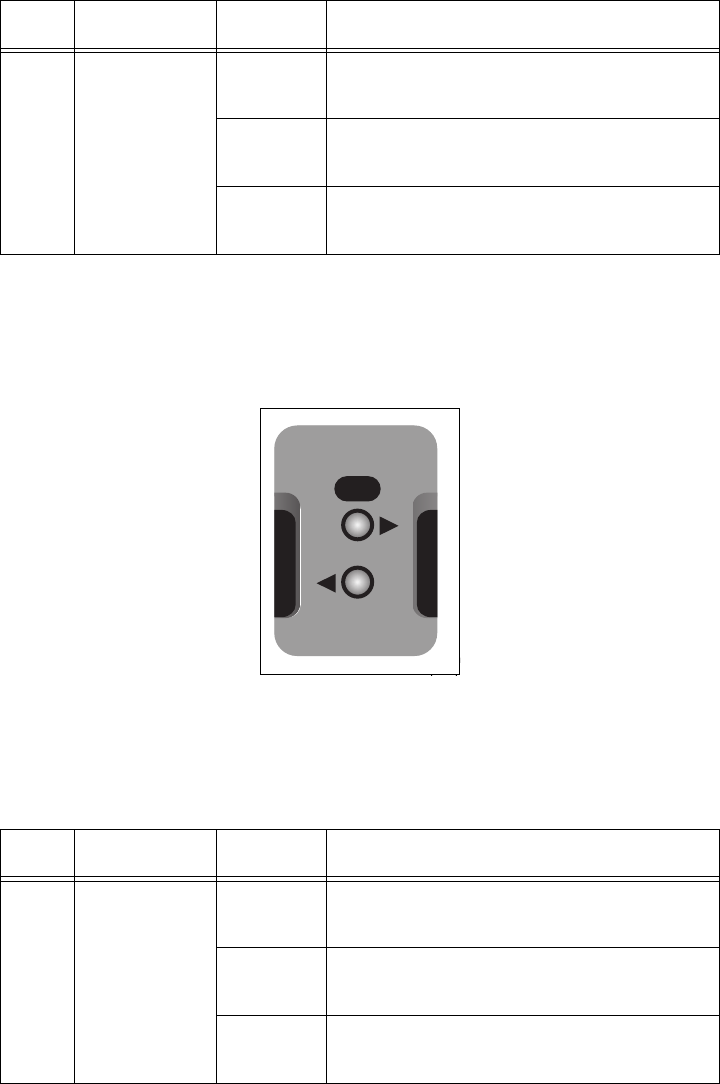

Figure 15. XFP LEDs on x600-24Ts/XP and x600-48Ts/XP Switches
Table 4. SFP Slot LED Descriptions
LED Function State Description
L/A
Link Status
and Activity
Off No link has been established between
the port and the end node.
Solid
Green
The port has established a link at 1
Gbps.
Flashing
Green
Packets are being received or
transmitted at 1 Gbps.
Table 5. XFP Slot LED
LED Function State Description
L/A Link Status
and Activity
Off No link has been established between
the port and the end node.
Solid
Green
The port has established a link at 10
Gbps.
Flashing
Green
Packets are being received or
transmitted at 10 Gbps.
L/A
