x600 Series Layer 3 Gigabit Ethernet Switches Installation Guide
25
x600-24TS-POE The x600-24Ts-POE switch has the following hardware features:
24 10/100/1000Base-T ports with Power over Ethernet (PoE)
capability.
Four Gigabit Ethernet small form-factor pluggable (SFP) transceiver
slots
An RJ-45 style serial terminal port for local (out-of-band) management
One SD slot supporting 512KB and 1GB SD cards
Status LEDs for the ports, transceiver slots, and system
Redundant power supply connector
Two VCS Stacking ports on rear panel

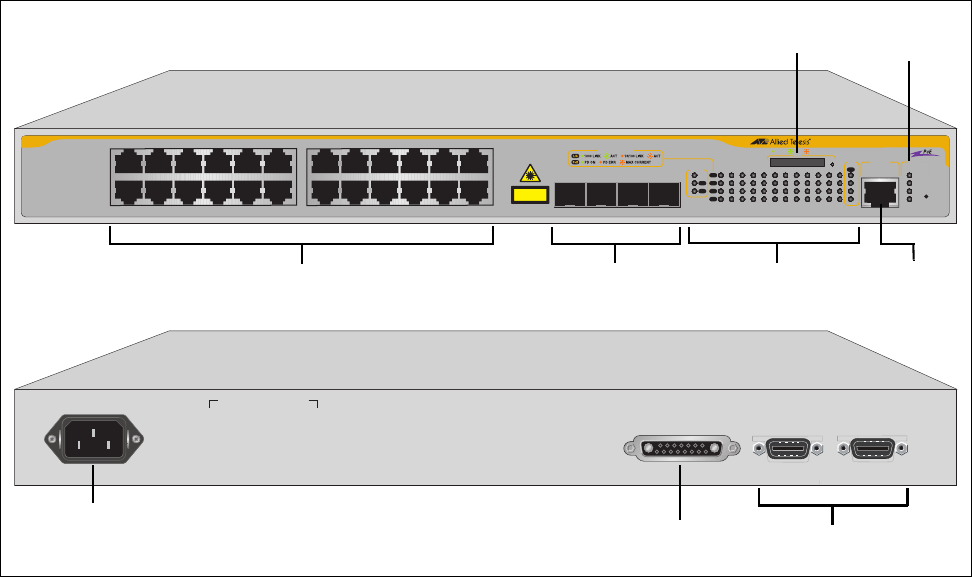

Figure 5 shows the x600-24Ts-POE switch front and rear panel.
Figure 5. x600-24Ts-POE Switch
1596
x600-24Ts-POE
Layer 3 Gigabit Ethernet Switch
1 3 5 7 9 11 13 15 17 19 21R 23R
2 4 6 8 10 12 14 16 18 20 22R 24R
CLASS 1
LASER PRODUCT
SFP
21 22 23 24
L/A
PoE
PoE
L/AL/A
MSTR
L/A
1
2
STACK
1 3 5 7 9 11 13 15 17 19 21R 23R
2 4 6 8 10 12 14 16 18 20 22R 24R
STATUSCONSOLE
FAULT
RPS
MASTER
PWR
21
22
23
24
SFP
L/A
PORT ACTIVITY
RESET
READY BUSY FAULT
SD
Stack, Port, SFP
and SD Slot LEDs
SFP
Transceiver
Slots
RPS INPUT
100-240VAC~
1597
STACK PORT 1
STACK PORT 2
System
LEDs
RPS Connector
10/100/1000Base-T Ports
RJ-45
Console
Port
VCS
Stacking Ports
AC Power
Connector
SD Slot
SFP
Transceiver
Slots
