Chapter 1: Overview
24
x600-48Ts/XP
Switch
The x600-48Ts/XP switch has the following hardware features:
44 10/100/1000Base-T ports
Four Gigabit Ethernet small form-factor pluggable (SFP) transceiver
slots
Two 10 Gigabit Ethernet small form factor pluggable (XFP) transceiver
slots
An RJ-45 style serial terminal port for local (out-of-band) management
One SD slot supporting 512KB and 1GB SD cards
Status LEDs for the ports, transceiver slots, and system
Redundant power supply connector
AT-LBM (Loop Back) module installed in the rear of the switch

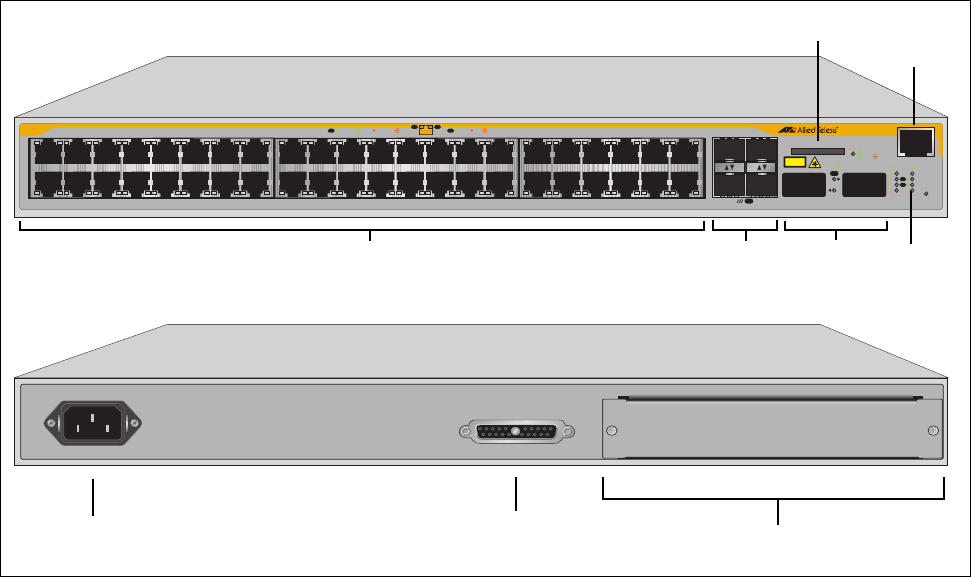

Figure 4 shows the x600-48Ts/XP switch front and rear panel.
Figure 4. x600-48Ts/XP Switch
L/A
49 50
XFP XFP
CLASS 1
LASER PRODUCT
LINK / ACT
15135791113 17 3331 473519 21 23 25 27 29 37 39 41 43 45
34
4836 38 40 42 44 46
3216
2 4 6 8 10 12 14 22 24 26 28 30
18
20
STATUS
FAULT
MASTER
RPS
PWR
PRES
MSTR
L/A
L/A
1
2
STACK
CONSOLE
L/A
SFP
x600-44Ts/XP
BUSY
READY
FAULT
SD
RESET
Layer 3 Gigabit Ethernet Switch
1308
FDX
HDX / COL
D/C
1000 LINK / ACT
10/100 LINK / ACT
L/A
L/A D/C
System
AC Power
Connector
Expansion Slot with AT-LBM Module
RPS INPUT
100-240VAC~
AT-LBM
1309
RJ-45
10/100/1000Base-T Ports and LEDs
SFP Slots
XFP Slots
LEDs
RPS Connector
SD Slot
Port
Console
SFP Slots
