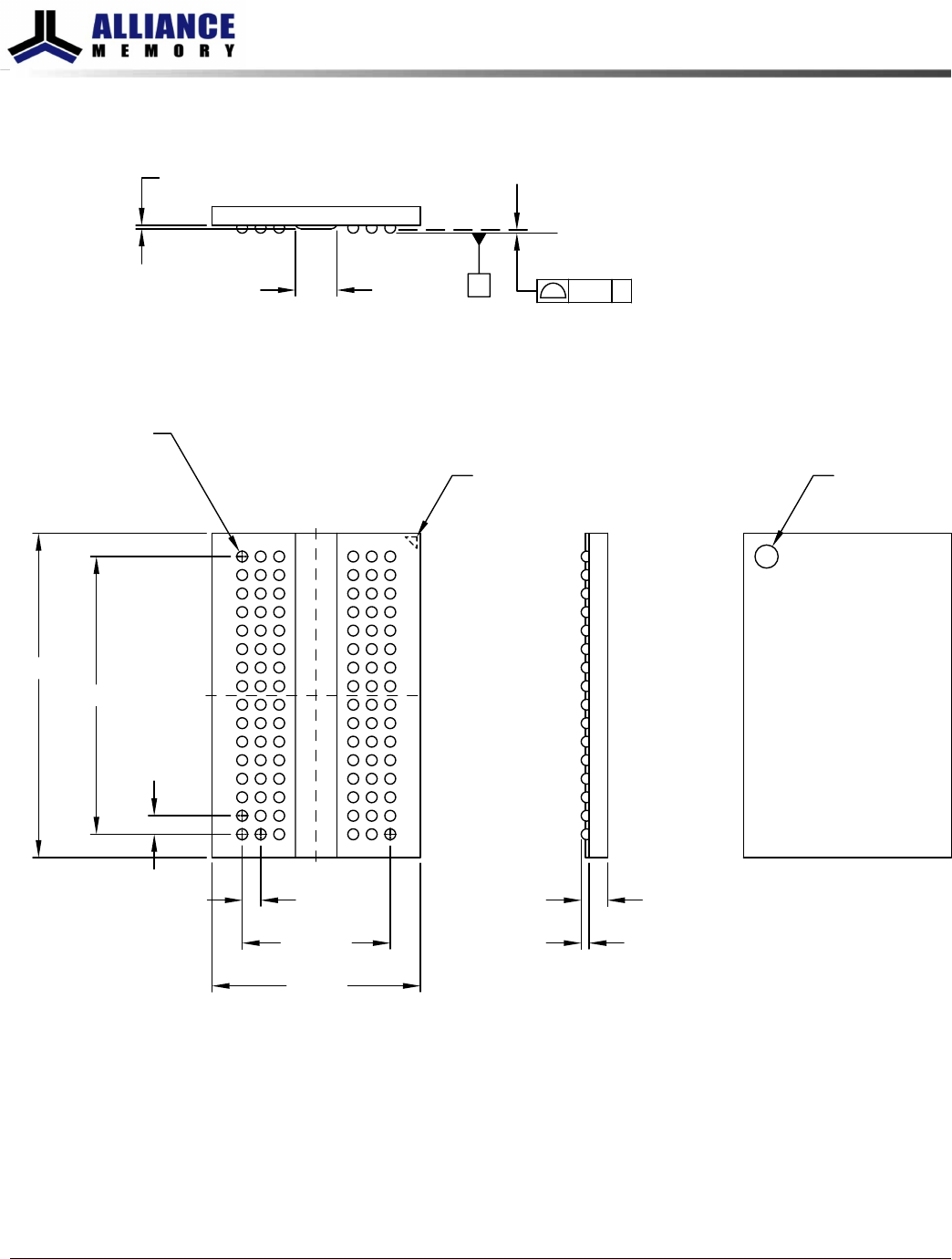

Figure 9: 96-Ball FBGA – x16 (HA)

1.8 CTR

Nonconductive

overmold

0.155

Seating plane

0.12 A

Ball A1 ID

(covered by SR)

Ball A1 ID

0.29 MIN

1.1 ±0.1

6.4 CTR

9 ±0.1

0.8 TYP

12 CTR

14 ±0.1

96X Ø0.47

Dimensions apply

to solder balls post-

reflow on Ø0.42 SMD

ball pads.

0.8 TYP

123789

Notes:

1. All dimensions are in millimeters.

2. Solder ball material: SAC302 (96.8% Sn, 3% Ag, 0.2% Cu).

8Gb: x4, x8, x16 DDR3L SDRAM

Package Dimensions

Rev.2.0 June 2016
