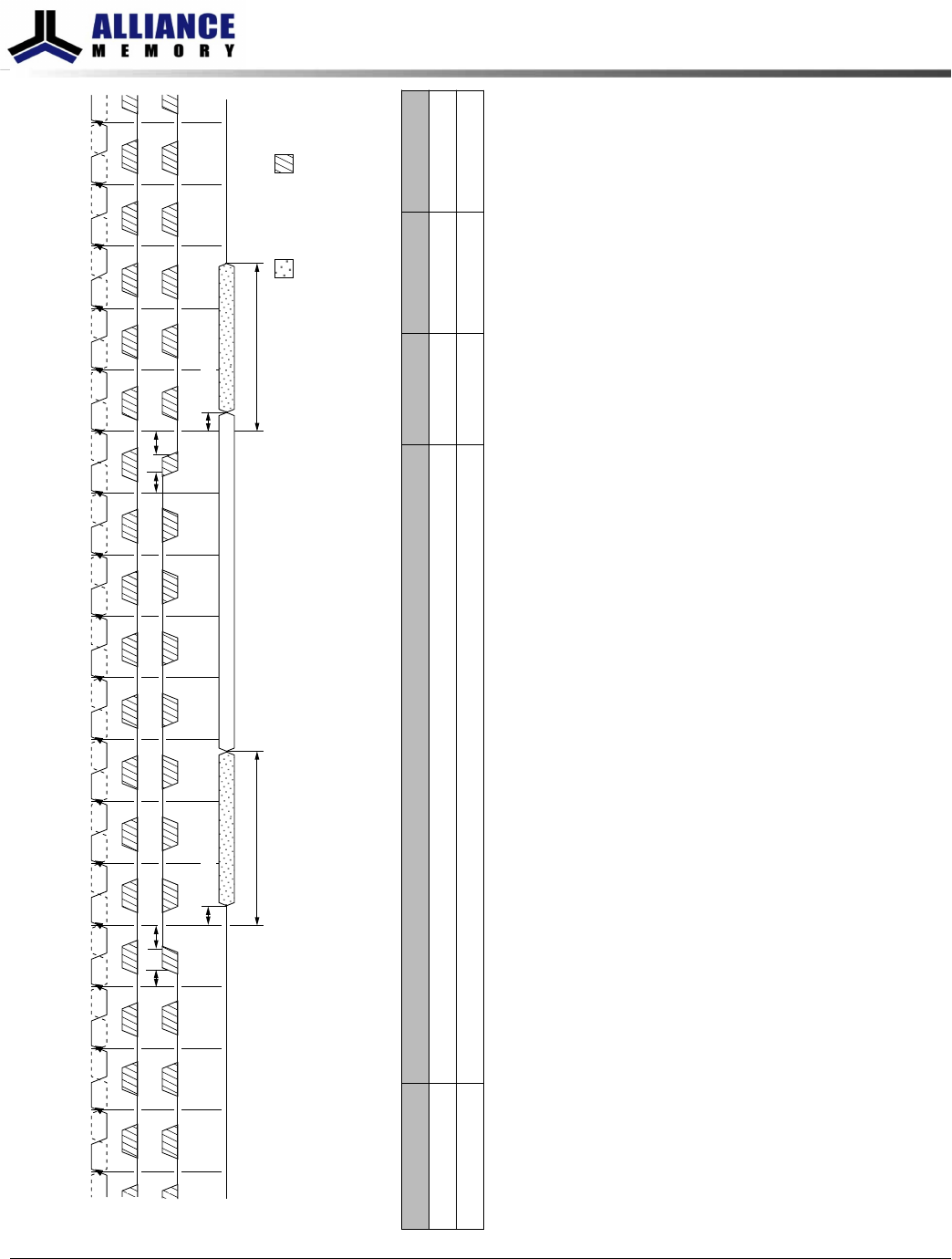

Figure 115: Asynchronous ODT Timing with Fast ODT Transition

T0 T1 T2 T3 T4 T5 T6 T7 T8 T9

AONPD (MAX)

AOFPD (MAX)

T10 T11 T12 T13 T14 T15

T17

T16

CK#

ODT

TT,nom

Don’t CareTransitioning

CKE

AOFPD (MIN)

AONPD (MIN)

Note:

1. AL is ignored.

Table 88: Asynchronous ODT Timing Parameters for All Speed Bins

Symbol Description Min Max Unit

AONPD Asynchronous R

turn-on delay (power-down with DLL off) 2 8.5 ns

AOFPD Asynchronous R

turn-off delay (power-down with DLL off) 2 8.5 ns

8Gb: x4, x8, x16 DDR3L SDRAM

Asynchronous ODT Mode

201

Rev.2.0 June 2016
