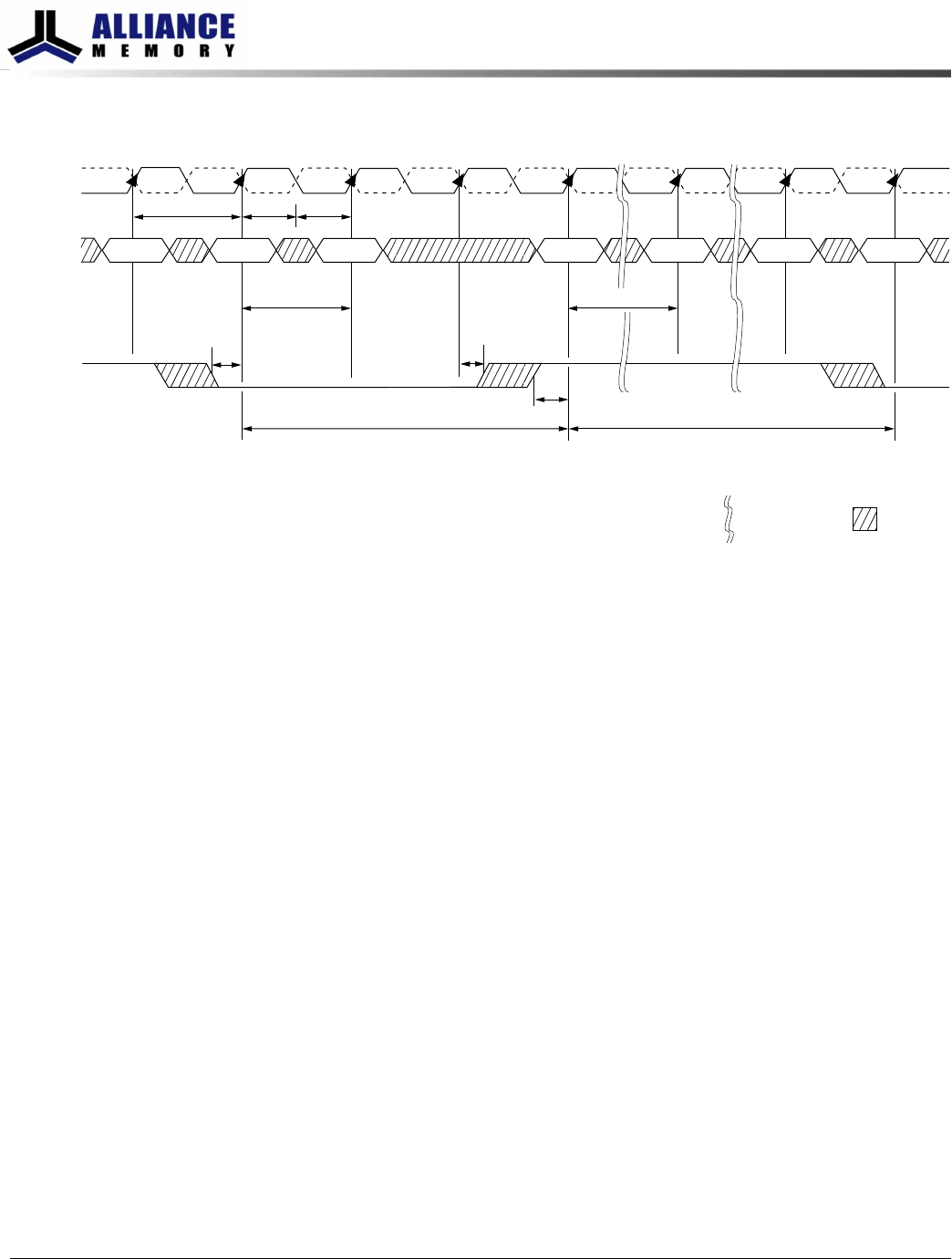

Figure 104: Power-Down Exit to Refresh to Power-Down Entry

CK#

CKE

Enter power-down

mode

Enter power-down

mode

Exit power-down

mode

CPDED

T0 T1 T2 T3 T4 Ta0 Ta1 Tb0

Don’t Care

Indicates break

in time scale

Command NOP NOP NOP NOPREFRESH NOPNOP

XPDLL

Notes:

XP must be satisfied before issuing the command.

XPDLL must be satisfied (referenced to the registration of power-down exit) before the

next power-down can be entered.

8Gb: x4, x8, x16 DDR3L SDRAM

Power-Down Mode

184

Rev.2.0 June 2016
