Instruction manual

Programming NetMaster
97
511210
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
60. Low Temperature “+060”
This option allows the owner to set the temperature of
the Low Temperature cycle.
How to Program Low Temperature
1. Control must be in Manual Mode. Refer to
Entering the Manual Mode.
2. Press the LOW TEMP (+) or the NO HEAT (-)
keypad until “PrOg” appears in the VFD. Press
the START (enter) keypad and “+001” will
appear in the VFD.

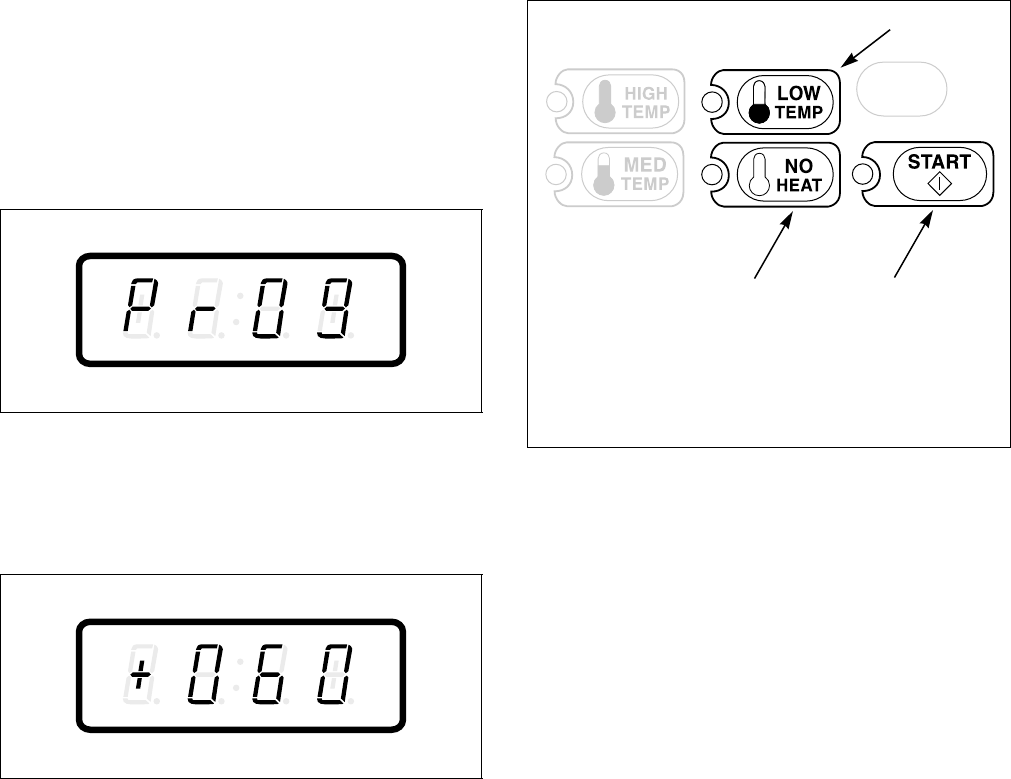

Figure 207
3. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to scroll through the programmable
options until “+060” appears in the VFD. Refer
to Figure 208.
Figure 208
4. When “+060” appears in the VFD, press the
START (enter) keypad. The current number of
degrees set for the Low Temperature will appear
in the VFD.
5. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to increase or decrease the current
number of degrees displayed in the VFD to the
desired number of degrees. Refer to Figure 209.
Figure 209
6. Press the START (enter) keypad when the correct
number of degrees appears in the VFD. The next
option, “+061”, will appear in the VFD.
NOTE: To program “+061” (Lucky Option), refer
to option 61. To program other options, refer to the
appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option,
not a value.
2. While pressing and holding the MED TEMP
keypad with one hand, press the LOW TEMP
keypad with the other hand. The control will
revert back to the Ready Mode. Refer to Figure 2.
C762I
C831I
C831I
C848I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
