59. Medium Temperature “+059”
This option allows the owner to set the temperature of
the Medium Temperature cycle.
How to Program Medium Temperature
1. Control must be in Manual Mode. Refer to
Entering the Manual Mode.

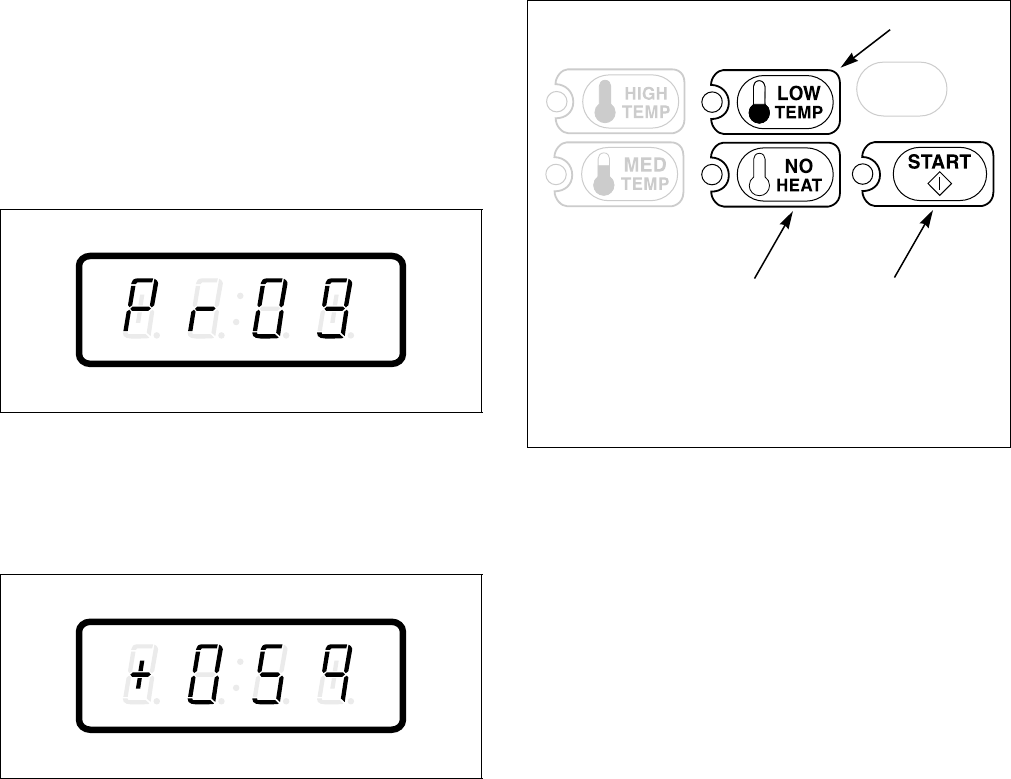

2. Press the LOW TEMP (+) or the NO HEAT (-)
keypad until “PrOg” appears in the VFD. Press
the START (enter) keypad and “+001” will
appear in the VFD.
Figure 204
3. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to scroll through the programmable
options until “+059” appears in the VFD. Refer
to Figure 205.
Figure 205
4. When “+059” appears in the VFD, press the START
(enter) keypad. The current number of degrees
set for the Medium Temperature will appear in
the VFD.
5. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to increase or decrease the current
number of degrees displayed in the VFD to the
desired number of degrees. Refer to Figure 206.
Figure 206
6. Press the START (enter) keypad when the correct
number of degrees appears in the VFD. The next
option, “+060”, will appear in the VFD.
NOTE: To program “+060” (Low Temperature),
refer to option 60. To program other options, refer
to the appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option,
not a value.
2. While pressing and holding the MED TEMP
keypad with one hand, press the LOW TEMP
keypad with the other hand. The control will
revert back to the Ready Mode. Refer to Figure 2.
C762I
C820I
C820I
C860I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
