56. Configuration #2 “+056”
This option allows the owner to turn ON or turn OFF
preprogrammed capabilities within NetMaster.
How to Program Configuration #2
1. Control must be in Manual Mode. Refer to
Entering the Manual Mode.

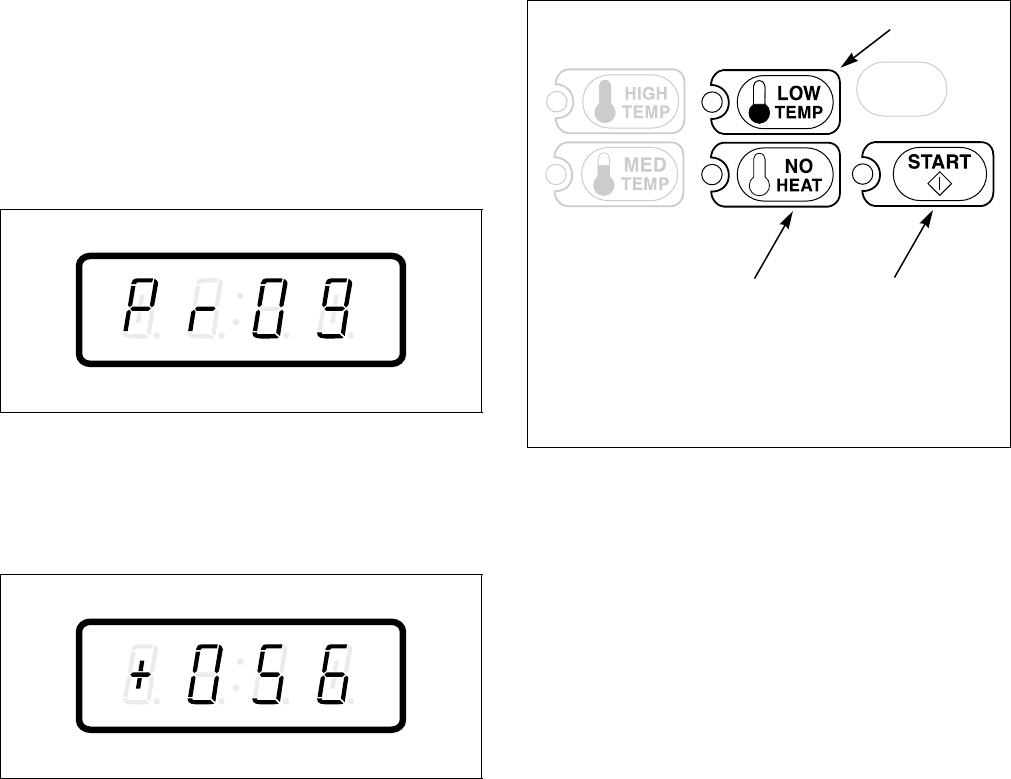

2. Press the LOW TEMP (+) or the NO HEAT (-)
keypad until “PrOg” appears in the VFD. Press
the START (enter) keypad and “+001” will
appear in the VFD.
Figure 195
3. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to scroll through the programmable
options until “+056” appears in the VFD. Refer
to Figure 196.
Figure 196
4. When “+056” appears in the VFD, press the
START (enter) keypad. A number will appear in
the VFD. This number corresponds to the current
Configuration #2 Value.
5. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to increase or decrease the current
number to the desired number selected from
Table 6. Refer to Figure 197.
Figure 197
6. Press the START (enter) keypad when the correct
number appears in the VFD. The next option,
“+057”, will appear in the VFD.
NOTE: To program “+057” (Configuration #3),
refer to option 57. To program other options, refer
to the appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option,
not a value.
2. While pressing and holding the MED TEMP
keypad with one hand, press the LOW TEMP
keypad with the other hand. The control will
revert back to the Ready Mode. Refer to Figure 2.
C762I
C817I
C817I
C848I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
