Instruction manual

Programming NetMaster
511210
84
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
52. Coin #1 Bonus Time (Seconds
Per Coin) “+052”
This option allows the owner to set the amount of
bonus time in seconds when using Coin #1 option.
How to Program Coin #1 Bonus Time
(Seconds Per Coin)
1. Control must be in Manual Mode. Refer to
Entering the Manual Mode.

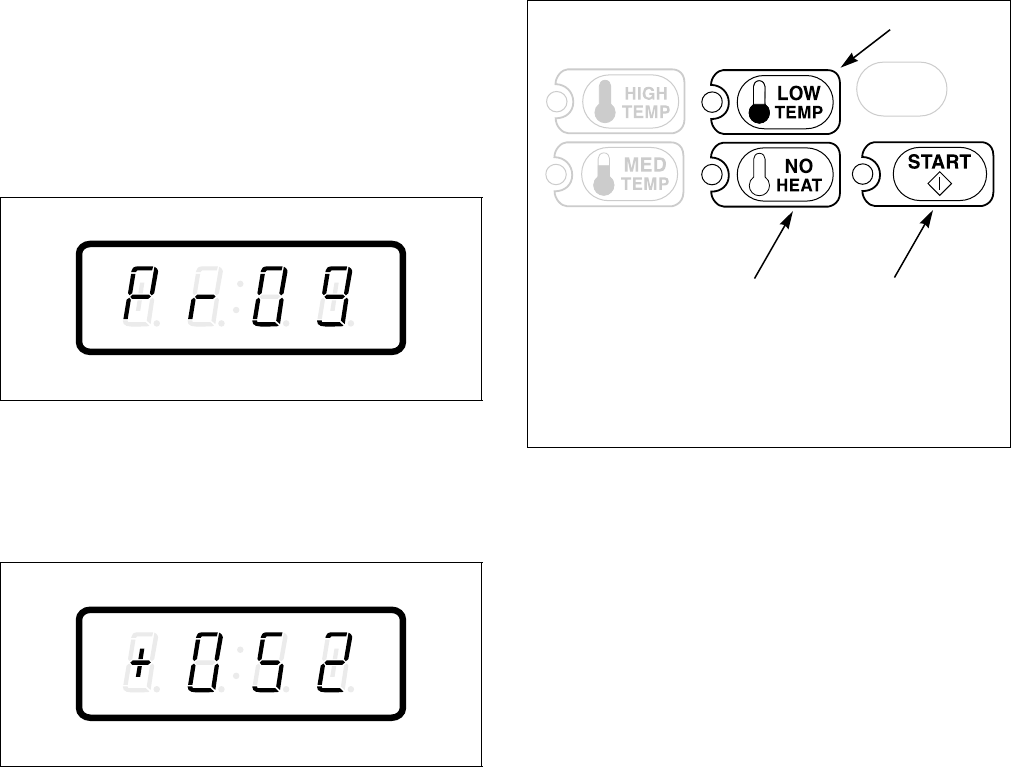

2. Press the LOW TEMP (+) or the NO HEAT (-)
keypad until “PrOg” appears in the VFD. Press
the START (enter) keypad and “+001” will
appear in the VFD.
Figure 183
3. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to scroll through the programmable
options until “+052” appears in the VFD. Refer
to Figure 184.
Figure 184
4. When “+052” appears in the VFD, press the
START (enter) keypad. The current number of
seconds set for the Coin #1 Bonus Time will
appear in the VFD.
5. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to increase or decrease the current number
of seconds displayed in the VFD to the desired
number of seconds. Refer to Figure 185.
NOTE: The Coin #1 Bonus Time can be set from
zero (0) to 59 seconds.
Figure 185
6. Press the START (enter) keypad when the correct
number of seconds appears in the VFD. The next
option, “+053”, will appear in the VFD.
NOTE: To program “+053” (Coin #2 Bonus Time
[Minutes Per Coin]), refer to option 53. To program
other options, refer to the appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option,
not a value.
2. While pressing and holding the MED TEMP
keypad with one hand, press the LOW TEMP
keypad with the other hand. The control will
revert back to the Ready Mode. Refer to Figure 2.
C762I
C813I
C813I
C848I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
