Instruction manual

Programming NetMaster
83
511210
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
51. Coin #1 Bonus Time (Minutes
Per Coin) “+051”
This option allows the owner to set the amount of
bonus time in minutes when using Coin #1 option.
How to Program Coin #1 Bonus Time
(Minutes Per Coin)
1. Control must be in Manual Mode. Refer to
Entering the Manual Mode.

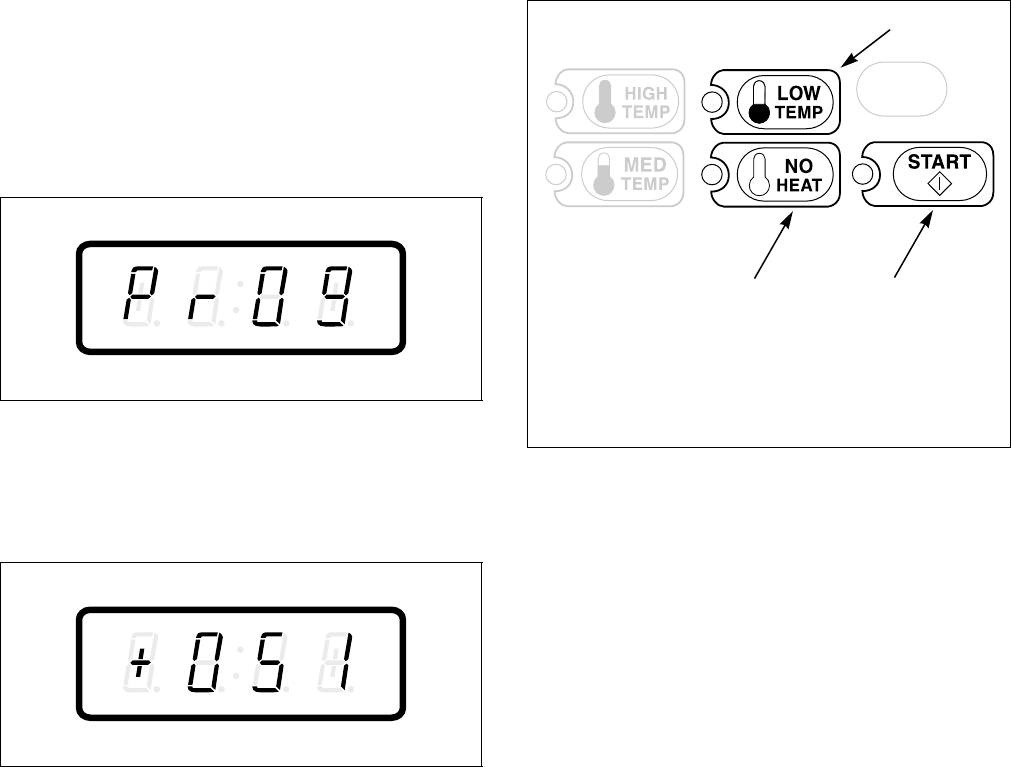

2. Press the LOW TEMP (+) or the NO HEAT (-)
keypad until “PrOg” appears in the VFD. Press
the START (enter) keypad and “+001” will
appear in the VFD.
Figure 180
3. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to scroll through the programmable
options until “+051” appears in the VFD. Refer
to Figure 181.
Figure 181
4. When “+051” appears in the VFD, press the
START (enter) keypad. The current number of
minutes set for the Coin #1 Bonus Time will
appear in the VFD.
5. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to increase or decrease the current
number of minutes displayed in the VFD to the
desired number of minutes. Refer to Figure 182.
NOTE: The Coin #1 Bonus Time can be set from
one (1) to 60 minutes.
Figure 182
6. Press the START (enter) keypad when the correct
number of minutes appears in the VFD. The next
option, “+052”, will appear in the VFD.
NOTE: To program “+052” (Coin #1 Bonus Time
[Seconds Per Coin]), refer to option 52. To program
other options, refer to the appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option,
not a value.
2. While pressing and holding the MED TEMP
keypad with one hand, press the LOW TEMP
keypad with the other hand. The control will
revert back to the Ready Mode. Refer to Figure 2.
C762I
C812I
C812I
C848I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
