Instruction manual

Programming NetMaster
81
511210
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
49. Card TopOff Minutes “+049”
This option allows the owner to set the amount of
topoff time in minutes for Card Reader machines.
How to Program Card TopOff Minutes
1. Control must be in Manual Mode. Refer to
Entering the Manual Mode.
2. Press the LOW TEMP (+) or the NO HEAT (-)
keypad until “PrOg” appears in the VFD. Press
the START (enter) keypad and “+001” will
appear in the VFD.

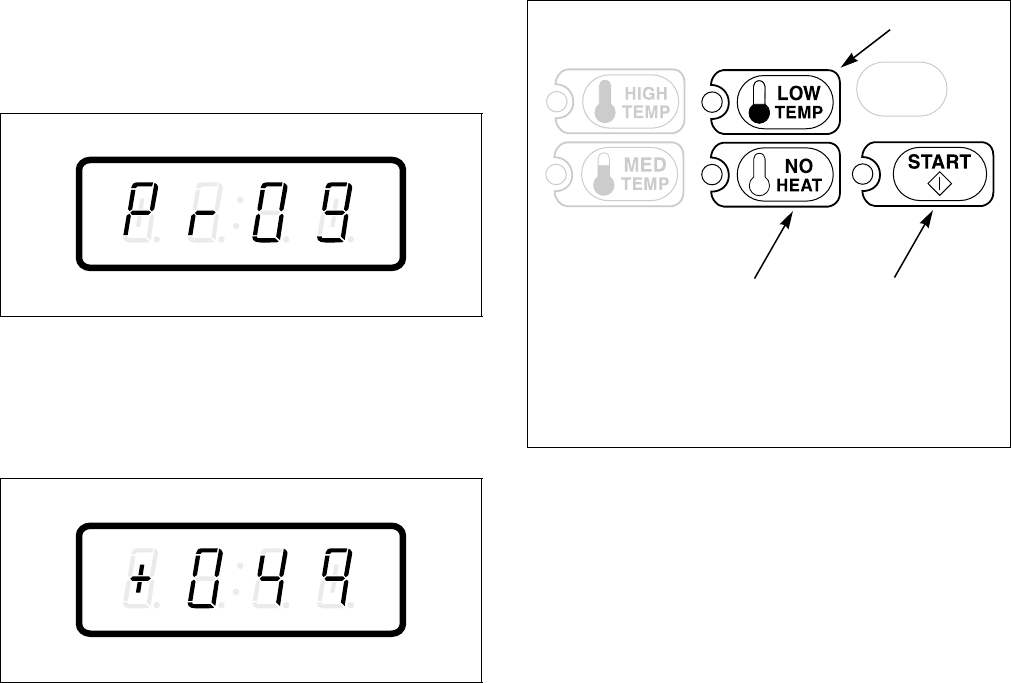

Figure 174
3. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to scroll through the programmable
options until “+049” appears in the VFD. Refer
to Figure 175.
Figure 175
4. When “+049” appears in the VFD, press the
START (enter) keypad. The current number of
minutes set for the Card TopOff Minutes will
appear in the VFD.
5. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to increase or decrease the current
number of minutes displayed in the VFD to the
desired number of minutes. Refer to Figure 176.
NOTE: The Card TopOff Minutes can be set from
one (1) to 60 minutes. The maximum amount of
time, including the topoff time, is 99 minutes.
Figure 176
6. Press the START (enter) keypad when the correct
number of minutes appears in the VFD. The next
option, “+050”, will appear in the VFD.
NOTE: To program “+050” (Card TopOff Seconds),
refer to option 50. To program other options, refer
to the appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option,
not a value.
2. While pressing and holding the MED TEMP
keypad with one hand, press the LOW TEMP
keypad with the other hand. The control will
revert back to the Ready Mode. Refer to Figure 2.
C762I
C810I
C810I
C848I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
C84
8
1
32
