48. Coin #2 TopOff Time (Seconds
Per Coin) “+048”
This option allows the owner to set the amount of
topoff time in seconds for the Coin #2 option.
How to Program Coin #2 TopOff Time
(Seconds Per Coin)
1. Control must be in Manual Mode. Refer to
Entering the Manual Mode.

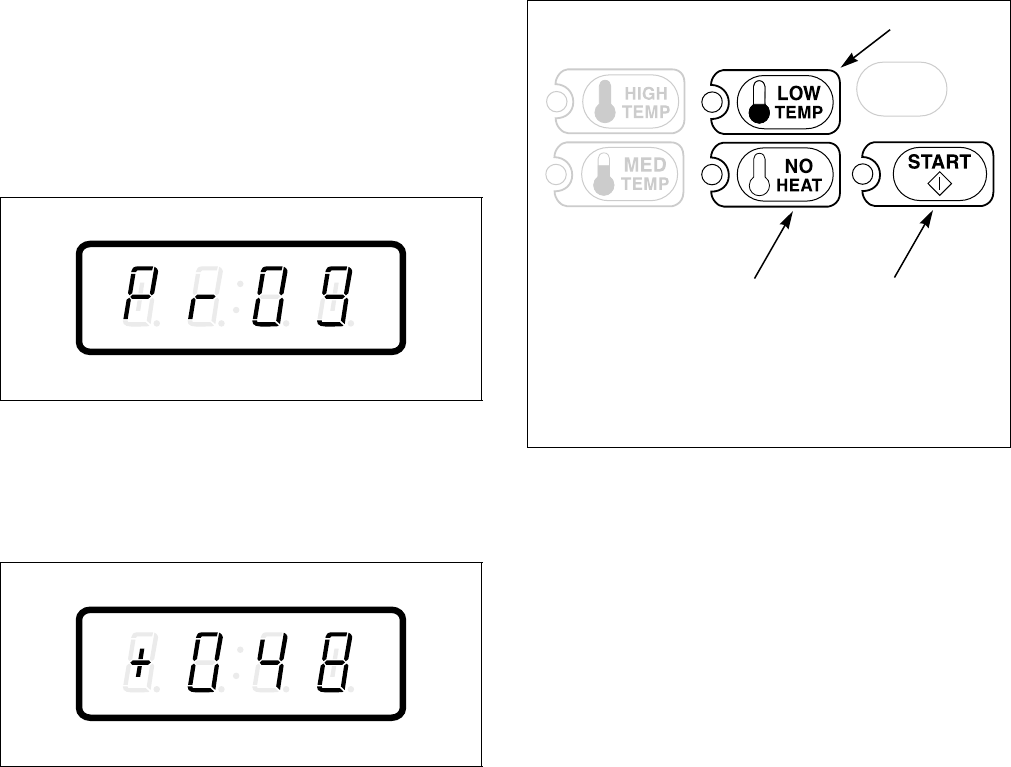

2. Press the LOW TEMP (+) or the NO HEAT (-)
keypad until “PrOg” appears in the VFD. Press
the START (enter) keypad and “+001” will
appear in the VFD.
Figure 171
3. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to scroll through the programmable
options until “+048” appears in the VFD. Refer
to Figure 172.
Figure 172
4. When “+048” appears in the VFD, press the
START (enter) keypad. The current number of
seconds set for the Coin #2 TopOff Time will
appear in the VFD.
5. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to increase or decrease the current
number of seconds displayed in the VFD to the
desired number of seconds. Refer to Figure 173.
NOTE: The Coin #2 TopOff Time can be set from
zero (0) to 59 seconds.
Figure 173
6. Press the START (enter) keypad when the correct
number of seconds appears in the VFD. The next
option, “+049”, will appear in the VFD.
NOTE: To program “+049” (Card TopOff
Minutes), refer to option 49. To program other
options, refer to the appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option,
not a value.
2. While pressing and holding the MED TEMP
keypad with one hand, press the LOW TEMP
keypad with the other hand. The control will
revert back to the Ready Mode. Refer to Figure 2.
C762I
C809I
C809I
C848I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
