NetMaster Identification

SELECT CYCLE Pads

(Refer to Figure 1)

SELECT CYCLE pads are used to select the specific

dryer cycle and temperature. These pads include

HIGH TEMP, MED TEMP, LOW TEMP, and NO

HEAT. The selection of one of these cycles will light

up the corresponding LED. The factory default cycle is

MED TEMP.

START Pad (Refer to Figure 1)

The START pad is used to start the dryer after the full

vend price has been satisfied and the dryer door is closed.

Both the START pad and the SELECT CYCLE pads are

used in various combinations for programming cycles,

retrieving audit information, running diagnostic tests,

and other hidden operations described in Entering the

Manual Mode. During an active cycle (card reader

equipped machines only), the START pad may be

pressed (with a card inserted) to add time to a cycle.

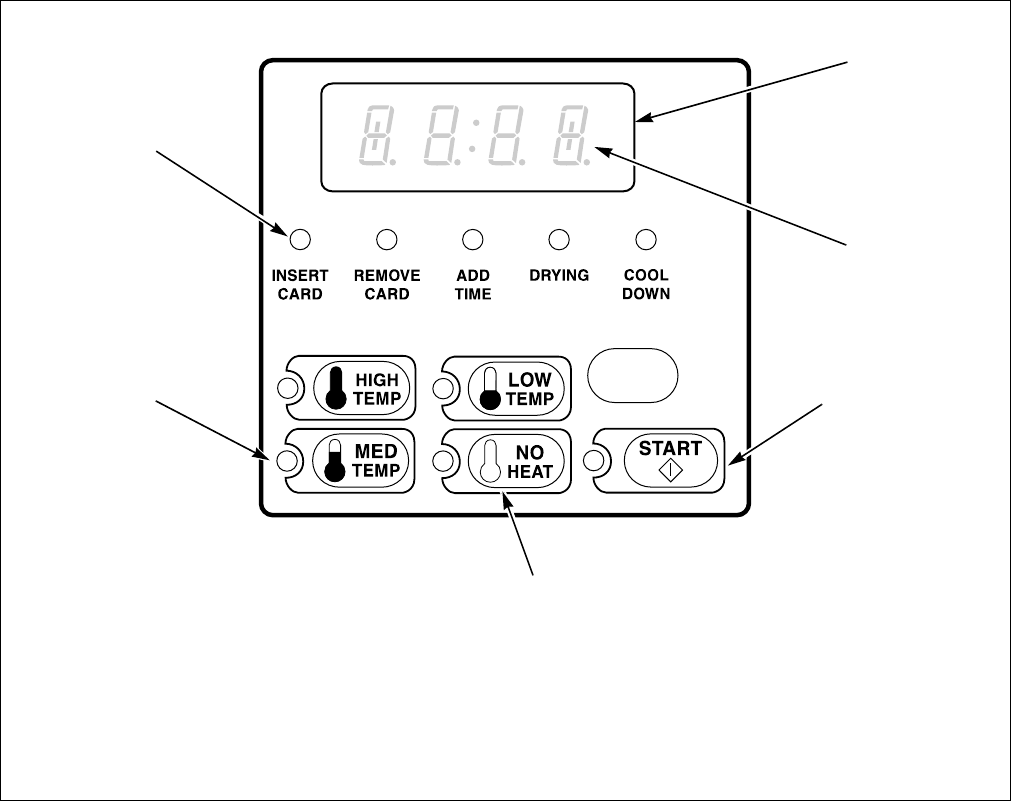

Figure 1

C841I

1 VFD Display

2 7-Segment Digit

3 START Pad

4 SELECT CYCLE Pads

5 LED Light

6 LED Status Lights

Electronic Control
