Instruction manual

Programming NetMaster
77
511210
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
45. Coin #1 TopOff Time (Minutes
Per Coin) “+045”
This option allows the owner to set the amount of
topoff time in minutes for the Coin #1 option.
How to Program Coin #1 TopOff Time
(Minutes Per Coin)
1. Control must be in Manual Mode. Refer to
Entering the Manual Mode.
2. Press the LOW TEMP (+) or the NO HEAT (-)
keypad until “PrOg” appears in the VFD. Press
the START (enter) keypad and “+001” will
appear in the VFD.

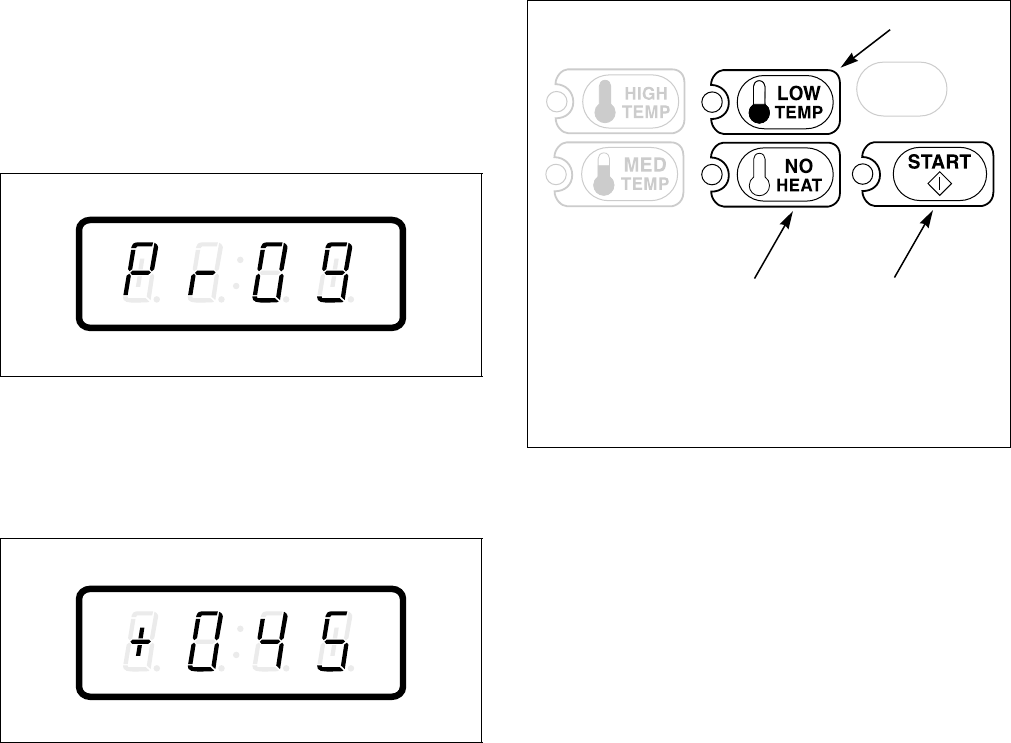

Figure 162
3. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to scroll through the programmable
options until “+045” appears in the VFD. Refer
to Figure 163.
Figure 163
4. When “+045” appears in the VFD, press the
START (enter) keypad. The current number of
minutes set for the Coin #1 TopOff Time will
appear in the VFD.
5. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to increase or decrease the current
number of minutes displayed in the VFD to the
desired number of minutes. Refer to Figure 164.
NOTE: The Coin #1 TopOff Time can be set from
one (1) to 60 minutes. The maximum amount of
time, including the topoff time, is 99 minutes.
Figure 164
6. Press the START (enter) keypad when the correct
number of minutes appears in the VFD. The next
option, “+046”, will appear in the VFD.
NOTE: To program “+046” (Coin #1 TopOff Time
[Seconds Per Coin]), refer to option 46. To program
other options, refer to the appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option,
not a value.
2. While pressing and holding the MED TEMP
keypad with one hand, press the LOW TEMP
keypad with the other hand. The control will
revert back to the Ready Mode. Refer to Figure 2.
C762I
C806I
C848I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
C84
8
1
32
