Instruction manual

Programming NetMaster
511210
76
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
44. Low Temp Cool Down Time
“+044”
This option allows the owner to set the amount of cool
down time in minutes for the Low Temp cycle.
How to Program Low Temp Cool
Down Time
1. Control must be in Manual Mode. Refer to
Entering the Manual Mode.
2. Press the LOW TEMP (+) or the NO HEAT (-)
keypad until “PrOg” appears in the VFD. Press
the START (enter) keypad and “+001” will
appear in the VFD.

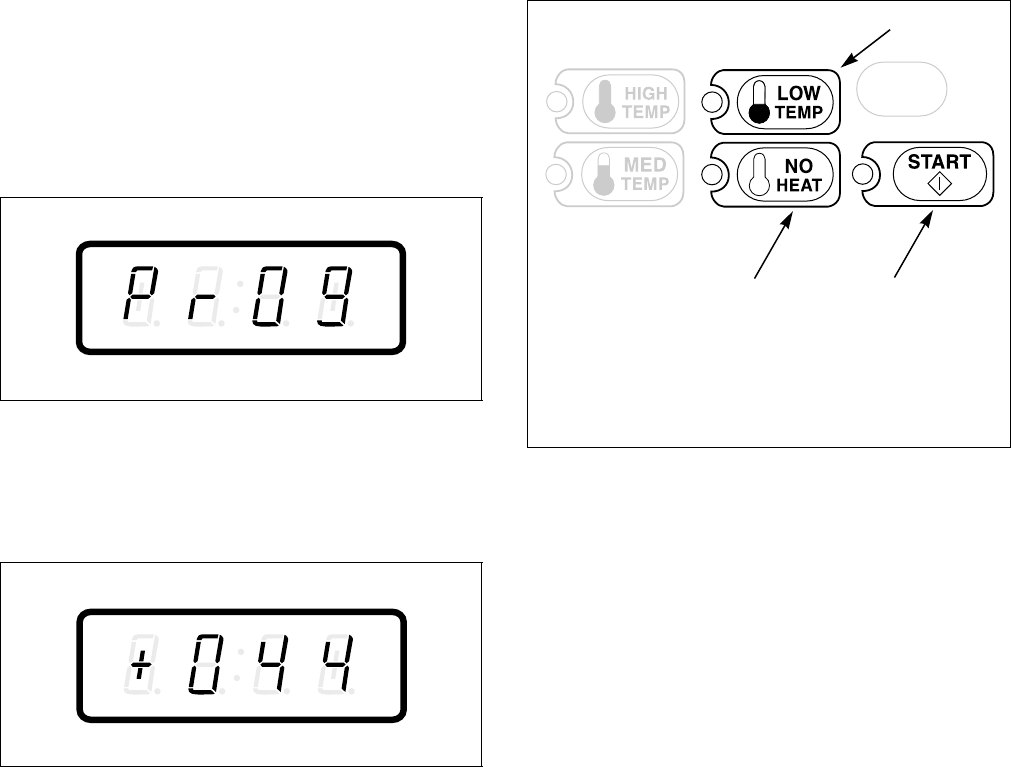

Figure 159
3. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to scroll through the programmable
options until “+044” appears in the VFD. Refer
to Figure 160.
Figure 160
4. When “+044” appears in the VFD, press the
START (enter) keypad. The current number of
minutes set for the Low Temp Cool Down Time
will appear in the VFD.
5. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to increase or decrease the current
number of minutes displayed in the VFD to the
desired number of minutes. Refer to Figure 161.
NOTE: The Low Temp Cool Down Time can be set
from one (1) to 15 minutes.
Figure 161
6. Press the START (enter) keypad when the correct
number of minutes appears in the VFD. The next
option, “+045”, will appear in the VFD.
NOTE: To program “+045” (Coin #1 TopOff Time
[Minutes Per Coin]), refer to option 45. To program
other options, refer to the appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option,
not a value.
2. While pressing and holding the MED TEMP
keypad with one hand, press the LOW TEMP
keypad with the other hand. The control will
revert back to the Ready Mode. Refer to Figure 2.
C762I
C805I
C848I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
C84
8
1
32
