43. Medium Temp Cool Down Time
“+043”
This option allows the owner to set the amount of cool
down time in minutes for the Medium Temp cycle.
How to Program Medium Temp Cool
Down Time
1. Control must be in Manual Mode. Refer to
Entering the Manual Mode.

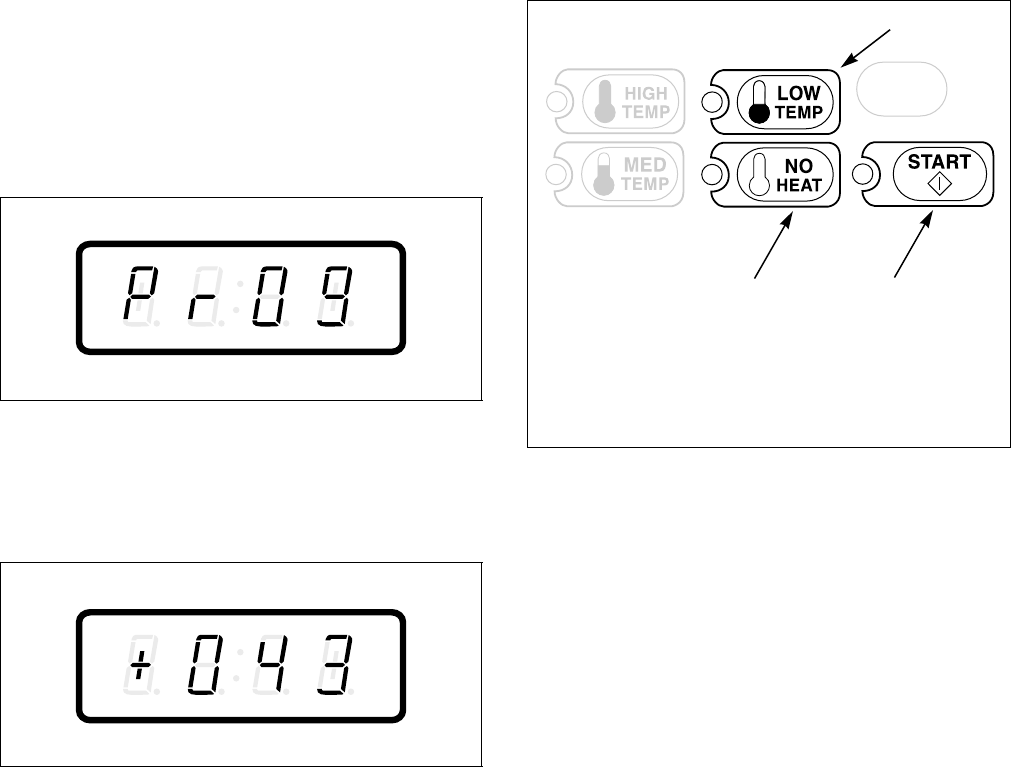

2. Press the LOW TEMP (+) or the NO HEAT (-)
keypad until “PrOg” appears in the VFD. Press
the START (enter) keypad and “+001” will
appear in the VFD.
Figure 156
3. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to scroll through the programmable
options until “+043” appears in the VFD. Refer
to Figure 157.
Figure 157
4. When “+043” appears in the VFD, press the
START (enter) keypad. The current number of
minutes set for the Medium Temp Cool Down
Time will appear in the VFD.
5. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to increase or decrease the current
number of minutes displayed in the VFD to the
desired number of minutes. Refer to Figure 158.
NOTE: The Medium Temp Cool Down Time can be
set from one (1) to 15 minutes.
Figure 158
6. Press the START (enter) keypad when the correct
number of minutes appears in the VFD. The next
option, “+044”, will appear in the VFD.
NOTE: To program “+044” (Low Temp Cool
Down Time), refer to option 44. To program other
options, refer to the appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option,
not a value.
2. While pressing and holding the MED TEMP
keypad with one hand, press the LOW TEMP
keypad with the other hand. The control will
revert back to the Ready Mode. Refer to Figure 2.
C762I
C804I
C848I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
