Instruction manual

Programming NetMaster
73
511210
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
41. No Heat Cycle Time Seconds
“+041”
This option allows the owner to set the amount of time
in seconds for the No Heat cycle.
How to Program No Heat Cycle Time
Seconds
1. Control must be in Manual Mode. Refer to
Entering the Manual Mode.
2. Press the LOW TEMP (+) or the NO HEAT (-)
keypad until “PrOg” appears in the VFD. Press
the START (enter) keypad and “+001” will
appear in the VFD.

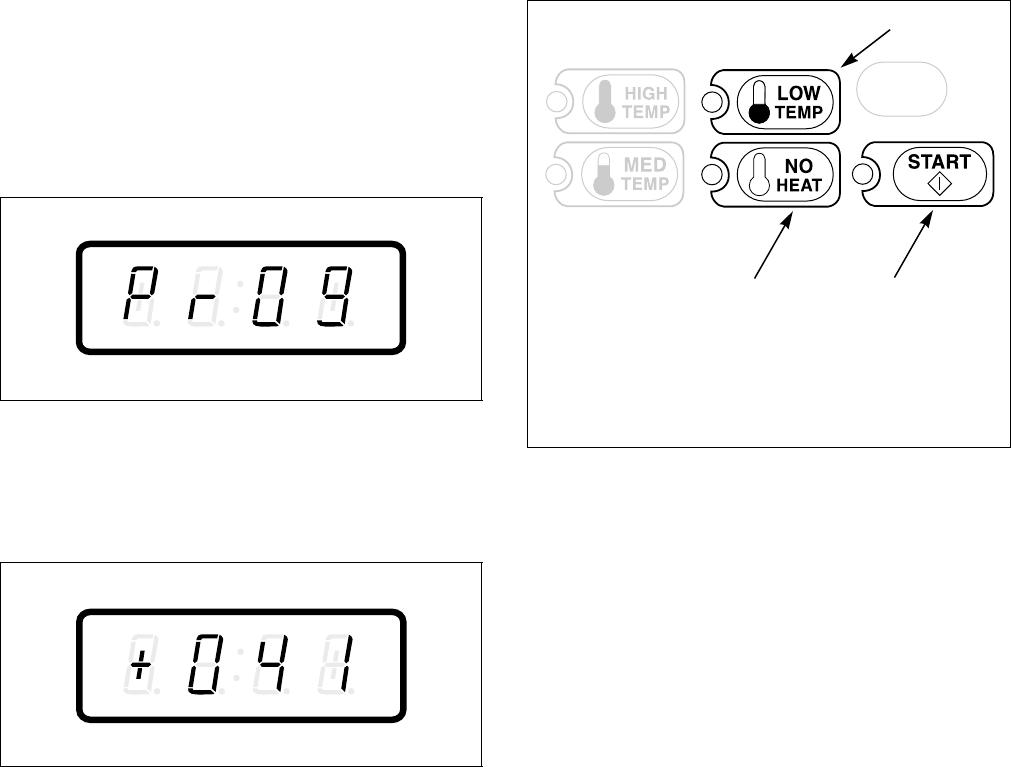

Figure 150
3. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to scroll through the programmable
options until “+041” appears in the VFD. Refer
to Figure 151.
Figure 151
4. When “+041” appears in the VFD, press the
START (enter) keypad. The current number of
seconds set for the No Heat Cycle Time Seconds
will appear in the VFD.
5. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to increase or decrease the current
number of seconds displayed in the VFD to the
desired number of seconds. Refer to Figure 152.
NOTE: The No Heat Cycle Time Seconds can be set
from zero (0) to 59 seconds.
Figure 152
6. Press the START (enter) keypad when the correct
number of minutes appears in the VFD. The next
option, “+042”, will appear in the VFD.
NOTE: To program “+042” (High Temp Cool
Down Time), refer to option 42. To program other
options, refer to the appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option,
not a value.
2. While pressing and holding the MED TEMP
keypad with one hand, press the LOW TEMP
keypad with the other hand. The control will
revert back to the Ready Mode. Refer to Figure 2.
C762I
C802I
C848I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
