38. Heat Cycle Time Minutes “+038”
This option allows the owner to set the amount of time
in minutes for the Heat cycles.
How to Program Heat Cycle Time Minutes
1. Control must be in Manual Mode. Refer to
Entering the Manual Mode.
2. Press the LOW TEMP (+) or the NO HEAT (-)
keypad until “PrOg” appears in the VFD. Press
the START (enter) keypad and “+001” will
appear in the VFD.

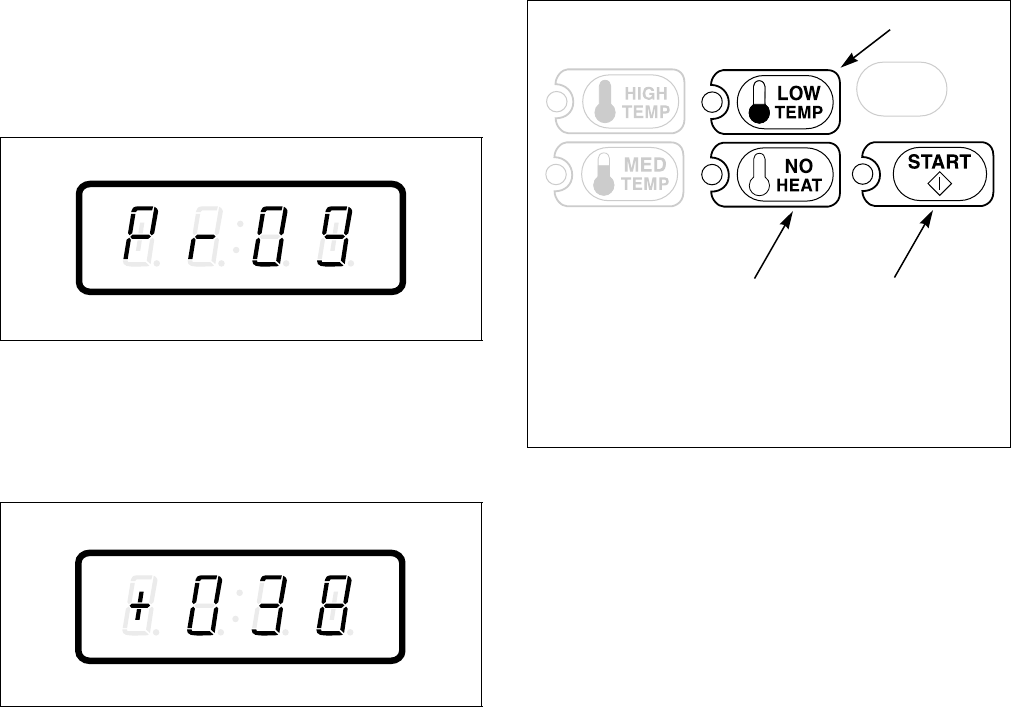

Figure 141
3. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to scroll through the programmable
options until “+038” appears in the VFD. Refer
to Figure 142.
Figure 142
4. When “+038” appears in the VFD, press the
START (enter) keypad. The current number of
minutes set for the Heat Cycle Time Minutes will
appear in the VFD.
5. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to increase or decrease the current
number of minutes displayed in the VFD to the
desired number of minutes. Refer to Figure 143.
NOTE: The Heat Cycle Time Minutes can be set
from one (1) to 99 minutes.
Figure 143
6. Press the START (enter) keypad when the correct
number of minutes appears in the VFD. The next
option, “+039”, will appear in the VFD.
NOTE: To program “+039” (Heat Cycle Time
Seconds), refer to option 39. To program other
options, refer to the appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option,
not a value.
2. While pressing and holding the MED TEMP
keypad with one hand, press the LOW TEMP
keypad with the other hand. The control will
revert back to the Ready Mode. Refer to Figure 2.
C762I
C799I
C848I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
