Instruction manual

Programming NetMaster
61
511210
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
30. Default Cycle “+030”
This option allows the owner to set the default cycle
the machine will enter when in the Ready Mode.
When programming the default cycle, refer to Table 4
on the following page.
How to Program Default Cycle
1. Control must be in Manual Mode. Refer to
Entering the Manual Mode.
2. Press the LOW TEMP (+) or the NO HEAT (-)
keypad until “PrOg” appears in the VFD. Press
the START (enter) keypad and “+001” will
appear in the VFD.

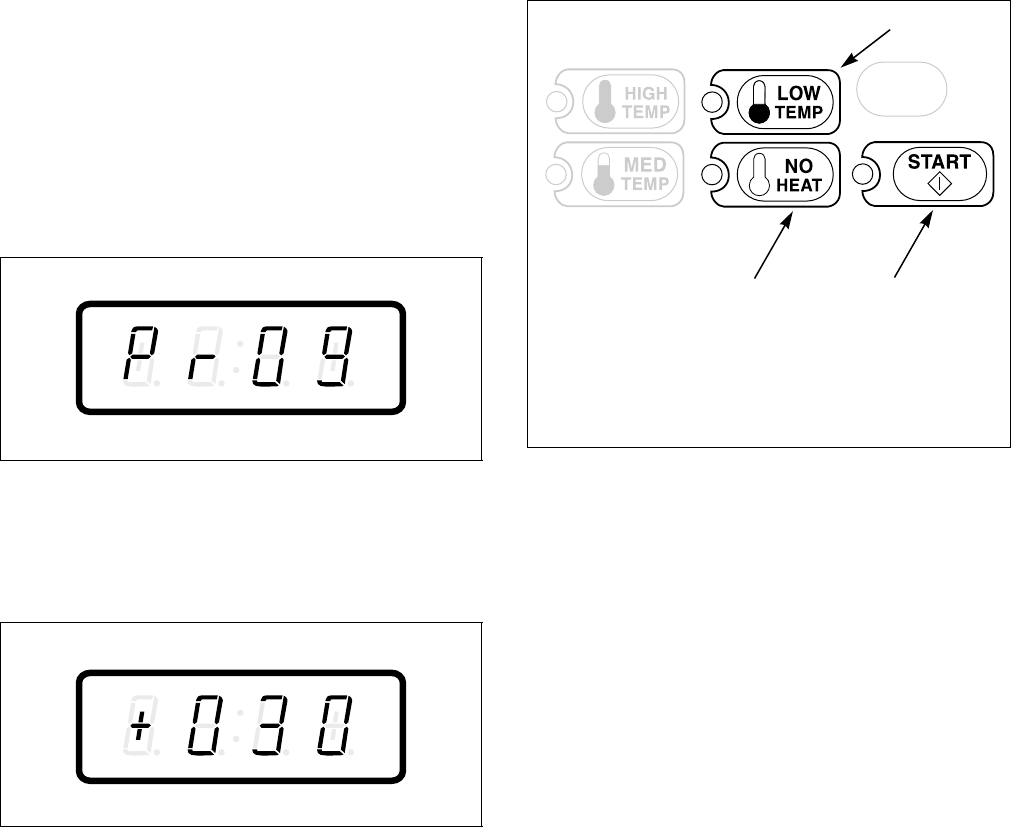

Figure 117
3. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to scroll through the programmable
options until “+030” appears in the VFD. Refer
to Figure 118.
Figure 118
4. When “+030” appears in the VFD, press the
START (enter) keypad. A number will appear in
the VFD. This number corresponds to the current
default cycle value.
5. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to increase or decrease the current number
to the desired number selected from Tab le 4 on
the following page. Refer to Figure 119.
Figure 119
6. Press the START (enter) keypad when the correct
number appears in the VFD. The next option,
“+031”, will appear in the VFD.
NOTE: To program “+031” (Set Real-Time Clock
Minutes), refer to option 31. To program other
options, refer to the appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option,
not a value.
2. While pressing and holding the MED TEMP
keypad with one hand, press the LOW TEMP
keypad with the other hand. The control will
revert back to the Ready Mode. Refer to Figure 2.
C762I
C782I
C848I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
