Instruction manual

Programming NetMaster
55
511210
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
27. Coin #2 Amount “+027”
This option allows the owner to set a specific
numerical value for a coin entered when using the dual
coin drop. For example, the coin value for a dollar coin
would be measured in cents (100). Therefore, the coin
amount entered for one dollar coin would be 00100.
If the Heat Vend Price (option 2) is set for “2.00”, and
the Coin Amount is set for “00100”, the vend price
displayed will decrease by 1.00 for each dollar coin
entered.
How to Program Coin #2 Amount
1. Control must be in Manual Mode. Refer to
Entering the Manual Mode.
2. Press the LOW TEMP (+) or the NO HEAT (-)
keypad until “PrOg” appears in the VFD. Press
the START (enter) keypad and “+001” will
appear in the VFD.

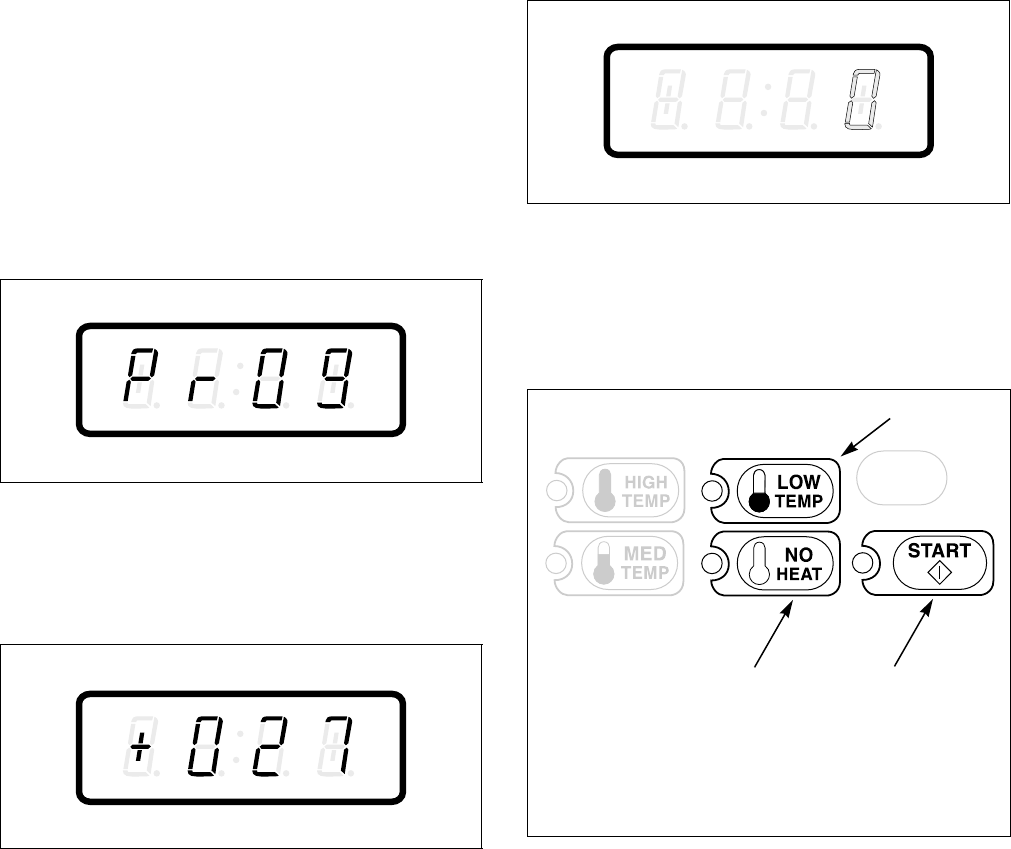

Figure 104
3. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to scroll through the programmable
options until “+027” appears in the VFD. Refer
to Figure 105.
Figure 105
4. When “+027” appears in the VFD, press the
START (enter) keypad. There are five digits in
the Coin #2 Amount. The fifth digit will appear
in the VFD and will flash one second on and one
second off. Refer to Figure 106.
NOTE: If coin amount is $100.00 or more, the fifth
digit is “1”. If coin amount is $99.99 or less, the
fifth digit is “0”.
Figure 106
5. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to increase or decrease the value of the
fifth digit. Refer to Figure 107.
NOTE: The coin amount can be set from 1 to 65,535.
Figure 107
C762I
C785I
C826I
C848I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
C826I
C84
8
1
32
