Instruction manual

Programming NetMaster
53
511210
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
26. Coin #1 Amount “+026”
This option allows the owner to set a specific
numerical value for a coin entered. For example, in the
United States the coin value for one quarter would be
measured in cents (25). Therefore, the coin amount
entered for one quarter would be 00025.
If the Heat Vend Price (option 2) is set for “.75”, and
the Coin Amount is set for “00025”, the vend price
displayed will decrease by .25 for each coin entered.
How to Program Coin #1 Amount
1. Control must be in Manual Mode. Refer to
Entering the Manual Mode.

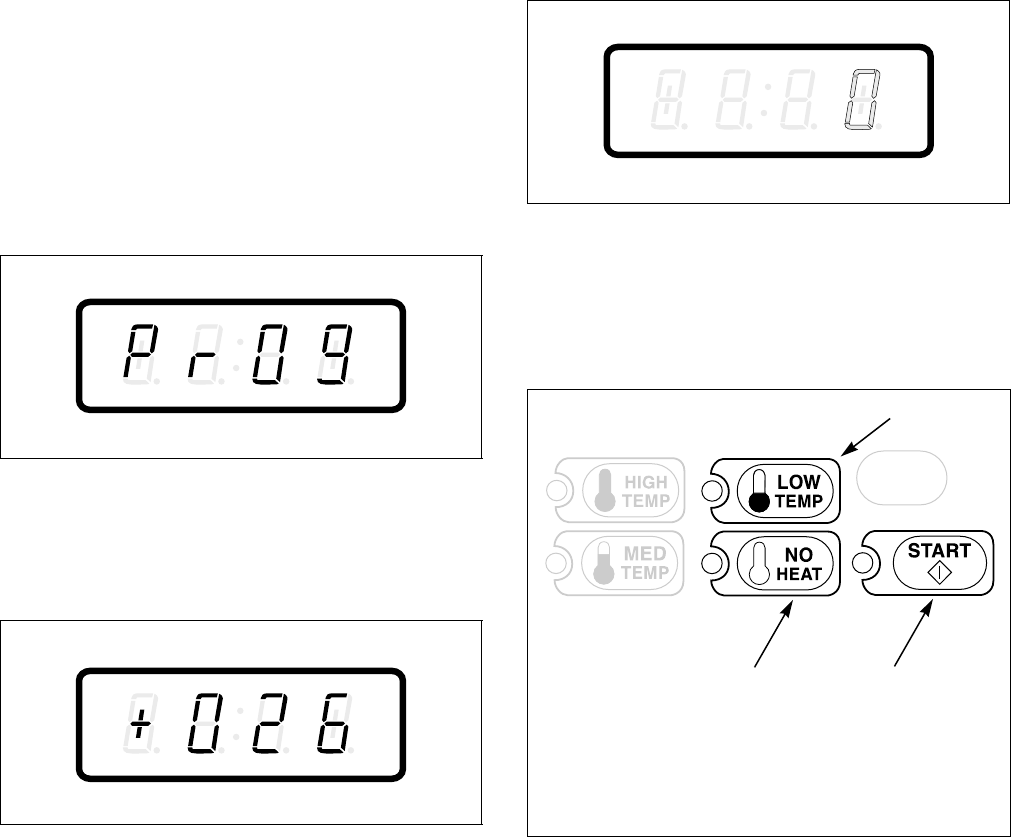

2. Press the LOW TEMP (+) or the NO HEAT (-)
keypad until “PrOg” appears in the VFD. Press
the START (enter) keypad and “+001” will
appear in the VFD.
Figure 99
3. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to scroll through the programmable
options until “+026” appears in the VFD. Refer
to Figure 100.
Figure 100
4. When “+026” appears in the VFD, press the
START (enter) keypad.There are five digits in the
Coin #1 Amount. The fifth digit will appear in
the VFD and will flash one second on and one
second off. Refer to Figure 101.
NOTE: If coin amount is $100.00 or more, the fifth
digit is “1”. If coin amount is $99.99 or less, the
fifth digit is “0”.
Figure 101
5. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to increase or decrease the value of the
fifth digit. Refer to Figure 102.
NOTE: The coin amount can be set from 1 to 65,535.
Figure 102
C762I
C786I
C826I
C848I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
