23. Special Vend A Coin #2 TopOff
Minutes “+023”
This option allows the owner to set the amount of
topoff time in minutes for the Special Vend A Coin #2
option.
How to Program Special Vend A
Coin #2 TopOff Minutes
1. Control must be in Manual Mode. Refer to
Entering the Manual Mode.

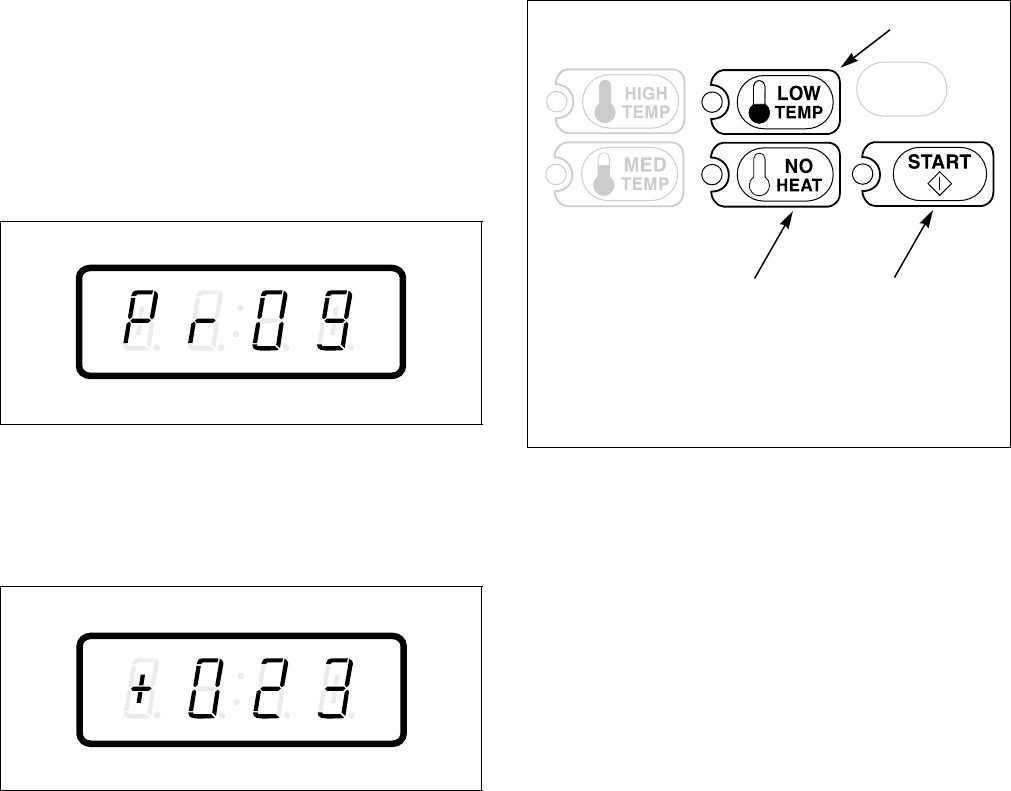

2. Press the LOW TEMP (+) or the NO HEAT (-)
keypad until “PrOg” appears in the VFD. Press
the START (enter) keypad and “+001” will
appear in the VFD.
Figure 90
3. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to scroll through the programmable
options until “+023” appears in the VFD. Refer
to Figure 91.
Figure 91
4. When “+023” appears in the VFD, press the
START (enter) keypad. The current number of
minutes set for Special Vend A Coin #2 TopOff
Minutes will appear in the VFD.
5. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to increase or decrease the current
number of minutes displayed in the VFD to the
desired number of minutes. Refer to Figure 92.
NOTE: Special Vend A Coin #2 TopOff Minutes
can be set from one (1) to 99 minutes.
Figure 92
6. Press the START (enter) keypad when the correct
number of minutes appears in the VFD. The next
option, “+024”, will appear in the VFD.
NOTE: To program “+024” (Special Vend A Coin #2
TopOff Seconds), refer to option 24. To program
other options, refer to the appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option,
not a value.
2. While pressing and holding the MED TEMP
keypad with one hand, press the LOW TEMP
keypad with the other hand. The control will
revert back to the Ready Mode. Refer to Figure 2.
C762I
C789I
C789I
C848I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
C84
8
1
