20. Special Vend A No Heat Time
Seconds “+020”
This option allows the owner to set the amount of time
in seconds for the no heat cycle in Special Vend A.
How to Program Special Vend A
No Heat Time Seconds
1. Control must be in Manual Mode. Refer to
Entering the Manual Mode.
2. Press the LOW TEMP (+) or the NO HEAT (-)
keypad until “PrOg” appears in the VFD. Press
the START (enter) keypad and “+001” will
appear in the VFD.

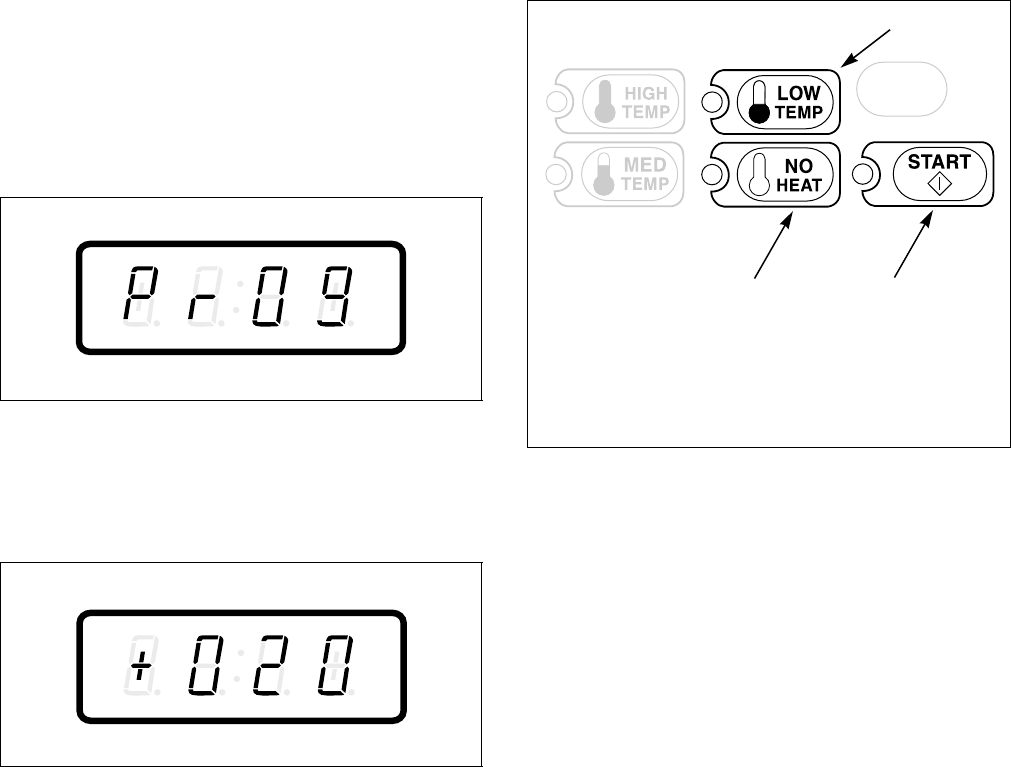

Figure 81
3. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to scroll through the programmable
options until “+020” appears in the VFD. Refer
to Figure 82.
Figure 82
4. When “+020” appears in the VFD, press the
START (enter) keypad. The current number of
seconds set for Special Vend A No Heat Time
Seconds will appear in the VFD.
5. Press the LOW TEMP (+) or the NO HEAT (-)
keypad to increase or decrease the current
number of seconds displayed in the VFD to the
desired number of seconds. Refer to Figure 83.
NOTE: Special Vend A No Heat Time Seconds can
be set from zero (0) to 59 seconds.
Figure 83
6. Press the START (enter) keypad when the correct
number of seconds appears in the VFD. The next
option, “+021”, will appear in the VFD.
NOTE: To program “+021” (Special Vend A Coin #1
TopOff Minutes), refer to option 21. To program
other options, refer to the appropriate section.
How to Exit Programming Feature
1. Be sure the control shows a programmable option,
not a value.
2. While pressing and holding the MED TEMP
keypad with one hand, press the LOW TEMP
keypad with the other hand. The control will
revert back to the Ready Mode. Refer to Figure 2.
C762I
C792I
C848I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
C84
8
1
32
