Instruction manual

511210

Entering the Manual Mode

For programming, testing, and retrieving information

from NetMaster, it is often necessary to enter the

Manual Mode by following the four simple steps below.

How to Enter the Manual Mode

1. Be sure the dryer is in the Ready Mode before

continuing to step 2. Refer to Figure 2. If the

dryer is in an active cycle, rapid advance through

the cycle. Refer to Rapid Advance Feature. If

coins have been entered, refer to Clear Vend

Feature.

2. Open the service door. Refer to Opening the

Service Door.

3. While pressing and holding the MED TEMP

keypad with one hand, press the LOW TEMP

keypad with the other hand.

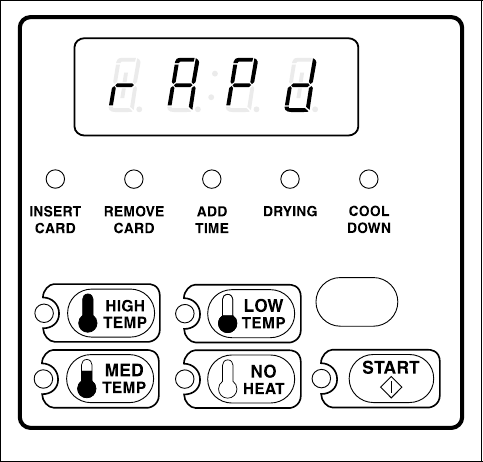

4. The VFD will show “rAPd”. Refer to Figure 7.

Figure 7

5. Press the LOW TEMP (+) or the NO HEAT (-)

keypad to scroll through the options until the

desired option appears in the VFD.

6. Press the START (enter) keypad.

The rest of this section describes the six special features

that Netmaster can enter.

1. Programming NetMaster

2. Collecting Audit Information

3. Testing Machine and NetMaster Functions

4. Sales Floor Feature

5. Rapid Advance Feature

6. Resetting programmable parameters to factory

defaults

Once in the manual mode, continue on into one of the

features described in detail on the following pages.

Instructions on how to exit each feature are found at

the end of each feature description.
