Instruction manual

13
511210
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Opening the Service Door
Stacked Washers and Dryers, Stacked
Dryers, Front Control Dryers, and
Coin Rear Control Dryers
Manually programming NetMaster requires the user to
open and close the service door. Opening and closing
the service door trips a switch allowing access to
various programming options, diagnostics, and audit
capabilities.
On stacked dryers, stacked washers and dryers, and
front control dryers, the service door is located in the
control panel. On rear control dryers, the service door is
located on the top of the meter case. Refer to Figure 6.
After opening and closing the service door, the
programmer has 4.25 minutes to begin programming.
If a SELECT CYCLE pad has not been pressed in that
time, the control will revert back to the Ready Mode.
Refer to Figure 6.
Rear Control Dryers with Card
Reader
Manually programming NetMaster requires the user to
open the service door and unplug the bullet connector
located between the “white/black” and “red/blue”
wires or to insert an appropriate card into the reader.
This will allow the user to access various
programming options, diagnostics and audit
capabilities. The service door is located on the top of
the meter case. Refer to Figure 6.

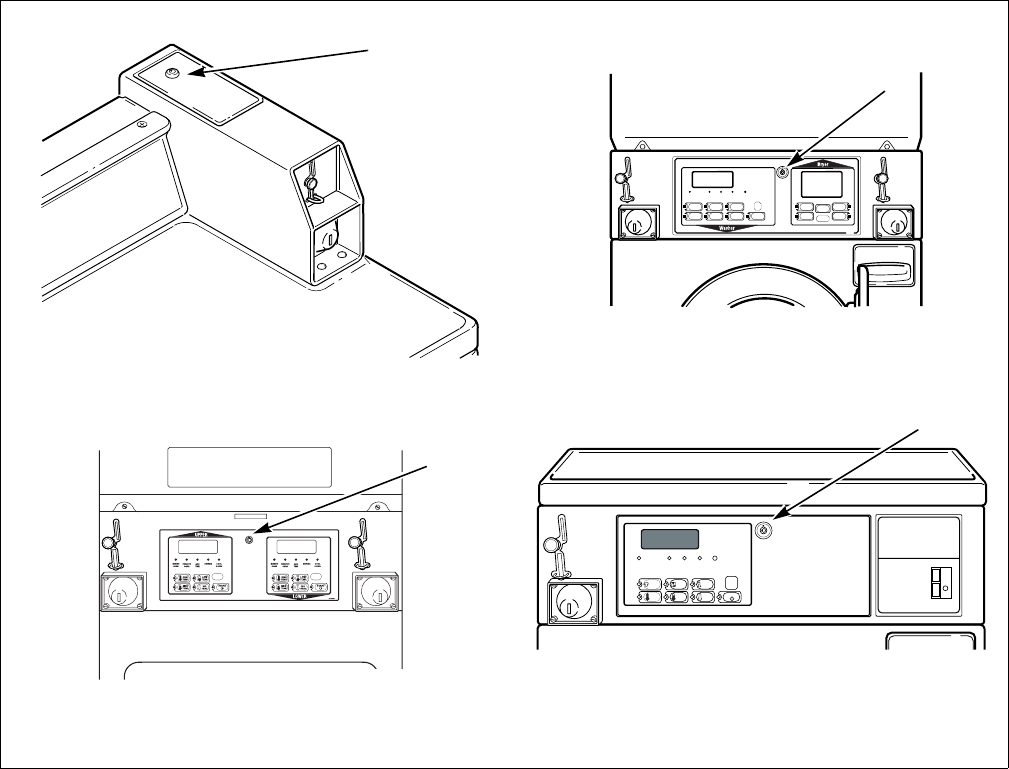

Figure 6
C846I C760I
1 Service Door
W521I
3
2
1
OPERATING INSTRUCTIONS
Select Wash Temperature
HOT, WARM, COLD.
Select Fabric Type
NORMAL, PERM PRESS, DELICATE.
Load Supply Dispenser (See Instructions Below).
Load Clothes.
Insert Coin(s) / Card.
To Start Washer-Close Door and Push Start.
1.
2.
3.
4.
5.
6.
Open Dispenser Door.
Load Supplies in Proper
Compartment (as Indicated).
Close Dispenser Door.
1.
2.
3.
Detergent
Liquid Bleach
Fabric Softener
1.
2.
3.
DISPENSER INSTRUCTIONS
685942
INSERT
COIN / CARD
DOOR
LOCKED
WASH
RINSE SPIN
HOT
WARM
PERM
PRESS
COLD
START
NORMAL
DELICATES
NORMAL
HOT
PERM
PRESS
WARM
DELICATES
COLD
DOOR
LOCKED
SPINRINSEWASHINSERT
COIN / CARD
START
START
NORMAL
PERM
PRESS
HIGH TEMP
MED TEMP
DELICATES
LOW TEMP
TUMBLE
NO HEAT
505617
D
1
1
Coin Rear Control Dryer Stacked Washer and Dryer
Stacked Dryer Front Control Dryer
1
1
W521I
D763I
