Instruction manual

Dryer Operation

511210

Opening the Dryer Door

Opening the dryer door in a running cycle will

automatically stop the cycle. When the dryer door is

opened, the DRYING LED or COOL DOWN LED is

turned off.

NOTE: When the door is opened during an active

cycle, the time will continue to count down and the

VFD will display “

dOOr” for five seconds on and

off. Refer to Figure 5.

Once the dryer door is closed, the START pad LED

flashes at one-second intervals until the START pad is

pushed. Pressing the start pad will start or resume the

active cycle.

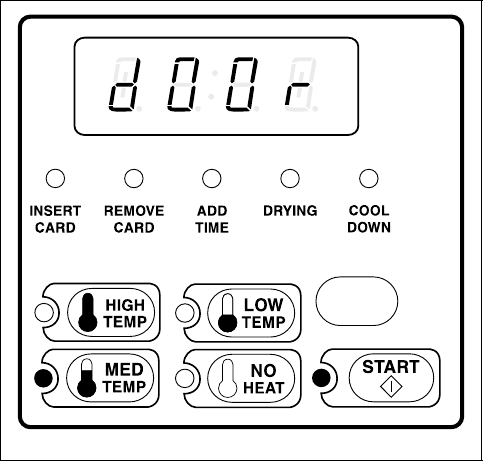

Figure 5

Signals

There are four options where a signal may sound during

the dryer operation. The owner may program when the

signals will sound. These four options are listed below:

1. End of Cycle Signal

By default, this signal is turned off. If enabled, the

signal will sound for three (3) seconds at the end

of a cycle.

2. Keypad Depression Signal

By default, this signal is turned on and will sound

for .25 seconds. The signal will sound each time a

keypad is pressed.

3. Coin/Card Input Signal

By default, this signal is turned on and will sound

for .25 seconds each time a coin or card is

entered.

4. Remove Card Signal

By default, this signal is turned on and will sound

one second on and one second off when the

REMOVE CARD LED flashes.

NOTE: Refer to Programming NetMaster, option 1,

to program signal options.

C845I
