Instruction manual

Dryer Operation
9
511210
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

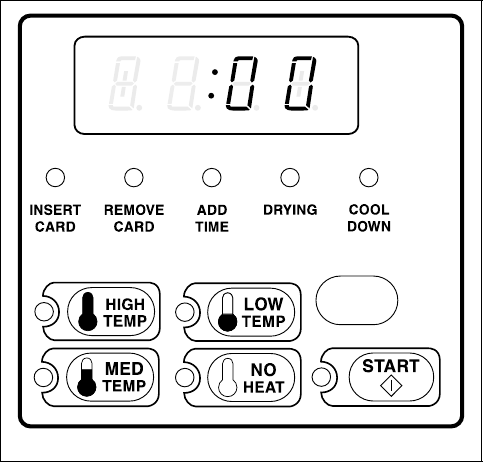

When a cycle is complete, the VFD will display “00”
until the door is opened, a key is pressed, or a coin or
card is entered. Refer to Figure 4. When the door is
opened, the VFD display will revert back to the Ready
Mode. Refer to Figure 2.
Figure 4
Entering Coins
Coins are entered to satisfy the programmed vend
price for a selected cycle. Coins may be entered before
selecting a cycle or during an active cycle. When
coins are entered during an active cycle, the time
remaining is increased by the amount programmed by
the owner (refer to Programming NetMaster).
The owner may choose to add additional time for each
coin entered, may require an additional full vend price
to add time once a cycle has begun, or may award
bonus times for each coin entered. If coins are entered
to an active heated cycle currently in the COOL
DOWN mode, more than one coin may be required to
push the cycle back into the DRYING mode. The
maximum time for any cycle is 99 minutes.
Entering Cards
A card is entered to satisfy the programmed vend price
for a selected cycle. The card may be entered before
selecting a cycle or during an active cycle. When the
card is entered during an active cycle and the START
pad is pressed, the time remaining is increased by the
amount programmed by the owner. Refer to
Programming NetMaster section.
The owner may choose to add additional time by
deducting a vend from the card or may require an
additional full vend price be deducted from the card. If
vend is deducted during an active heated cycle that is
currently in the COOL DOWN mode, the additional
time added may put the cycle back into the heated
mode. The maximum time for any cycle is 99 minutes.
Additional time cannot be added if it exceeds the
99 minute limit on a drying cycle and the REMOVE
CARD LED will flash on and off every second.
Changing Active Cycles
An active cycle may be changed at any time during
dryer operation. However, changing from one cycle to
another may require additional vend. If a newly
selected cycle requires additional vend, the additional
vend must be entered within 60 seconds of selecting
the new cycle. If the vend price is not satisfied within
that time, the dryer will go back to the original cycle
and the time remaining will be increased by the
amount of any vend that was entered.
Changing between heated cycles is allowed at any time
during the active DRYING portion of a heated cycle.
However, if the vend price is greater for a heated cycle
than a NO HEAT cycle, changing to a heated cycle
from a NO HEAT cycle is only allowed during the first
5 and the final 5 minutes of the cycle. In this case, the
cycle will require additional vend.
During the first 5 minutes, if the vend price is greater,
additional vend is required. If cycle times differ
between the two cycles, the time will be adjusted.
During the last 5 minutes, changes can be made
regardless of vend prices. No adjustments will be
made to cycle time.
C844I
