Collecting Audit Information
This feature allows the owner to retrieve audit
information stored in the dryer by pressing a sequence
of pads on the control. For an explanation of the audit
options available, see the Audit Options List on this page.
How to Enter Audit Feature
1. Control must be in Manual Mode to start. Refer
to Entering the Manual Mode.
2. Press the LOW TEMP (+) or the NO HEAT (-)
keypad until “AUdT” appears. Refer to
Figure 229.

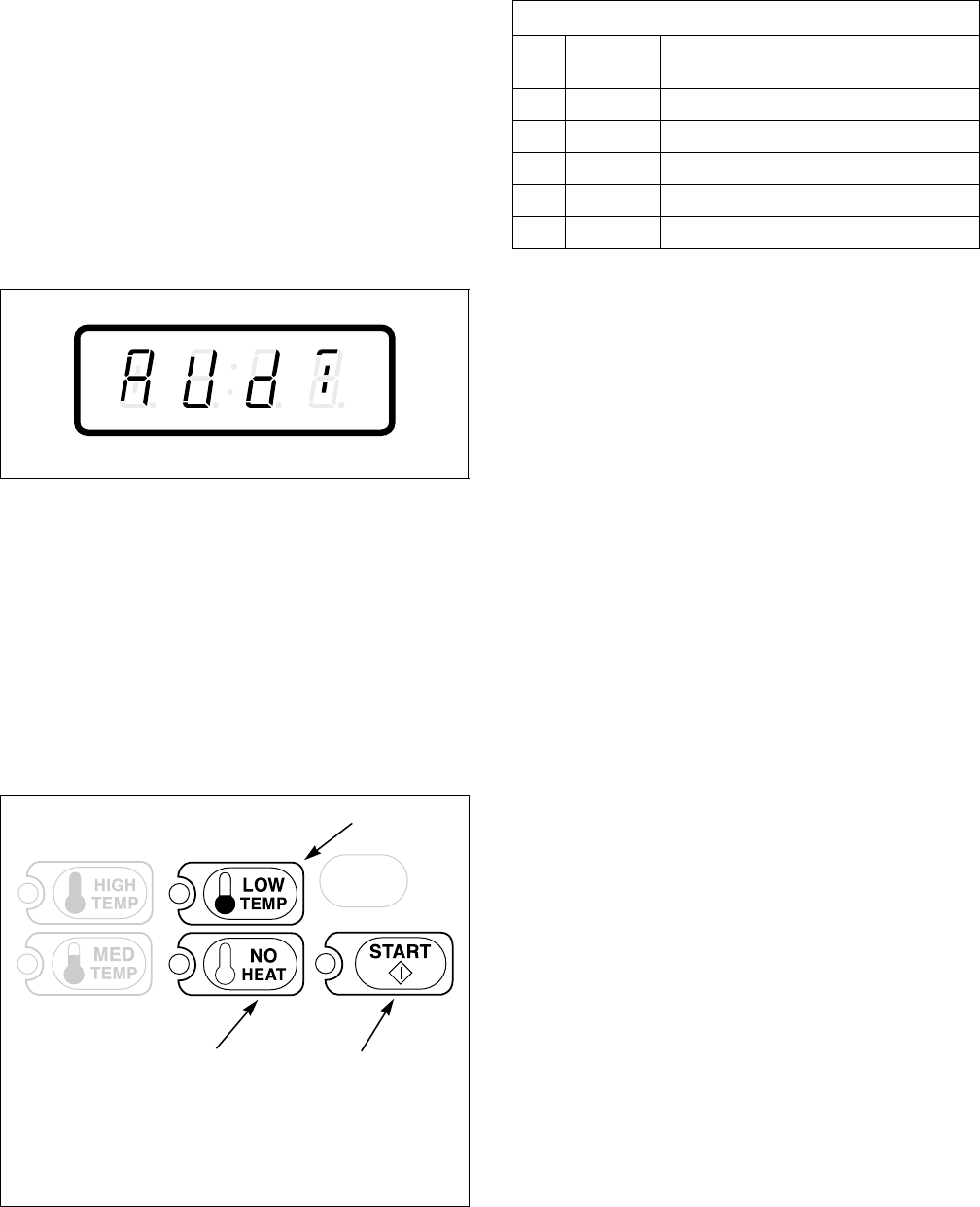

Figure 229
3. Press the START keypad. “CyC-” will appear.
If the procedure did not work, the control will return to
the Ready Mode. Refer to Figure 2.
How to Read Audit Data
1. Use the LOW TEMP (+) or the NO HEAT (-)
keypad to scroll through various options until the
desired option is displayed in the VFD. Refer to
the Audit Options List, Table 11, for an explanation
of the audit options available. Refer to Figure 230.
Figure 230
2. Once the desired option appears in the VFD,
press the START (enter) keypad once to start the
audit count. At this point, the display will show
the first four-digit segment of the audit value.
Press the START (enter) keypad again to view the
last four digits of the number.
NOTE: The VFD can display up to 4 digits at one
time. All audit counts are separated into two 4-digit
segments. Each time the START (enter) keypad is
pressed in step 2, the VFD will show the next 4-digit
segment in the audit value.
For Example: In the Total Number of Coins #1 option
with “COI1” displayed in the VFD, the audit has
counted 10,009 coins. Pressing the START (enter)
keypad one time will show “_ _ _ 1” to represent ten
thousand. Pressing the START (enter) keypad a second
time will display “0009” meaning nine. The total
equals “00010009” or 10,009.
3. Press the START (enter) keypad again. The
control will go to the next audit option in the
Audit Options List.
4. To select other audit options, repeat steps 1 – 4.
How to Exit Audit Feature
1. Be sure the control shows an audit option, not a
value.
2. While pressing and holding the MED TEMP
keypad with one hand, press the LOW TEMP
keypad with the other hand. The control will
return to the Ready Mode. Refer to Figure 2.
C823I
C848I
1 Press this pad (+) to scroll forward or increase a value
2 Press this pad (enter) to choose a selected value or
option
3 Press this pad (-) to scroll back or decrease a value
C823I
C84
8
1
3
2
Audit Options List
#
VFD
Display
Description
1
“CyC-”
Total # of machine cycles
2
“COI1”
Total # of coins #1
3
“COI2”
Total # of coins #2
4
“PLSE”
Total # of Start Pulses
5
“CArd”
Card Firmware Version Number
Table 11
