Dryer Operation

Start Up

When power is applied to the dryer, NetMaster

becomes active and lights the default cycle LED

(MED TEMP). In addition, the VFD will display the

vend price of the default cycle and the INSERT

COINS/CARD LED will be lit. This is referred to as

the Ready Mode. Refer to Figure 2.

The customer may select a different cycle if desired.

The VFD display will show the current vend price for

each cycle chosen. A customer may select the cycle

before entering coins. The vending transaction may be

satisfied by adding coins, inserting a card, or by

receiving a start pulse from a central pay point.

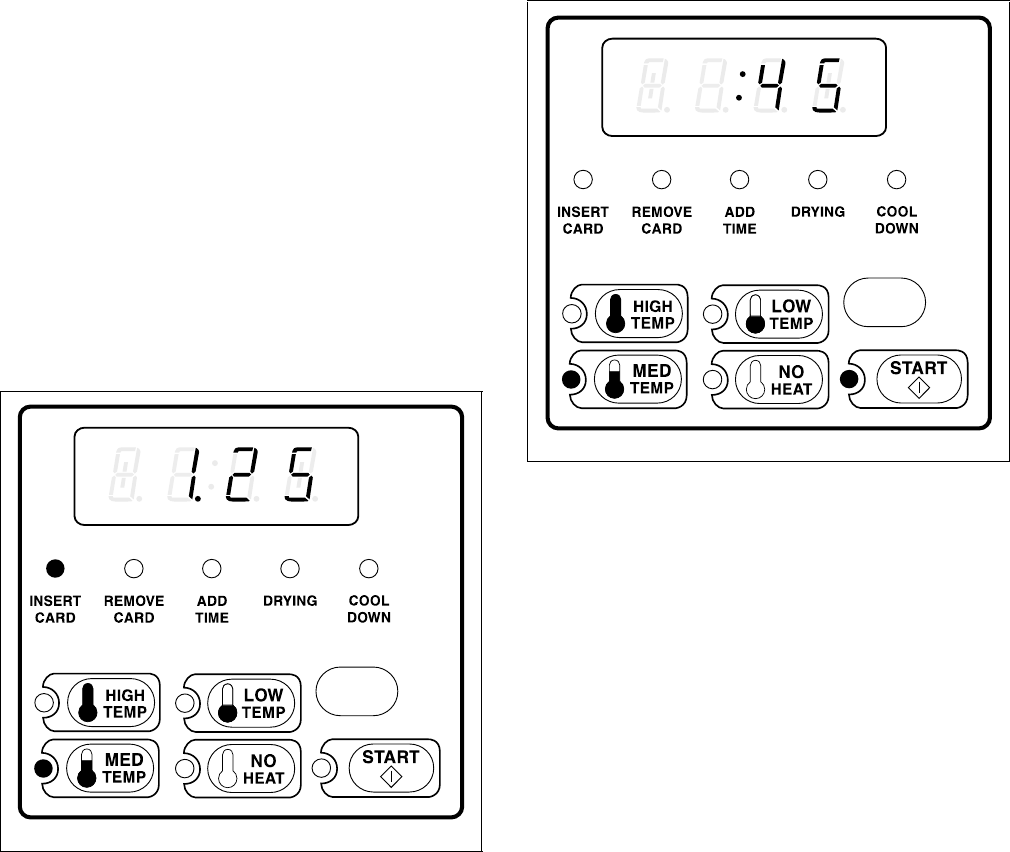

Ready Mode

Figure 2

If a coin drop is used, coins are entered into the

machine and the vend price remaining to be satisfied

gets smaller. Once the full vend price is satisfied, the

INSERT COINS/CARD LED is turned off and the

START LED will begin to flash.

When a card reader is used, the INSERT COINS/CARD

LED is lit until a card is inserted into the reader. The

VFD will display “bAL” followed by the balance of the

card. Next, the VFD will display the vend price, and the

START pad will flash.

Figure 3

After the START pad is pushed, the control will start

the dryer.

If a coin drop is used, the START LED will turn off

and the DRYING LED or COOL DOWN LED will be

lit after the START pad is pressed. The VFD will

display the cycle time counting down.

If a card reader is used, the VFD will display “WAIT”

for 2-3 seconds after the START pad is pressed. The

START LED will turn off and the REMOVE CARD

LED will be lit. The VFD will display the cycle time

counting down. When the card is removed, the

REMOVE CARD LED will turn off. The VFD will

display “bAL” followed by the card balance. The VFD

will then display the cycle time counting down.

The DRYING LED will remain lit until the COOL

DOWN cycle begins. When the COOL DOWN cycle

begins, the COOL DOWN LED is lit, the DRYING

LED is turned off, and the heater is turned off.

When a cycle is complete, a signal will sound for three

seconds (if selected). Dryers shipped from the factory

have the signal turned off. The signal (if selected) will

sound at the end of each cycle, when SELECT CYCLE

pads are pushed, when coins or cards are entered, or

when the REMOVE CARD LED is flashing. Each of

these signals can be turned on or off separately (refer

to Programming NetMaster, option 1, to program

signal options).
