Model Identification Information in this manual is applicable to these dryer models: HDEB07 HDEF07 HDGB09 HDGF09 HFEB07 HFEF07 HFGB09 HFGF09 HSEB17 HSEF17 HSGB19 HSGF19 HTEB17 4 HTEB77 HTEF17 HTGB19 HTGB79 HTGF19 SDEA07 SDEB07 SDEC07 SDEF07 SDEH07 SDGA09 SDGB09 SDGC09 SDGF09 SDGH09 SFEA07 SFEB07 SFEF07 SFGB09 SFGF09 SSEA07 SSEA17 SSEB07 SSEB17 SSEC07 SSEF07 SSEF17 SSEH07 SSGA19 SSGB09 SSGB19 SSGC09 SSGF09 SSGF19 SSGH09 STEA17 STEA77 STEB17 STEB77 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY
Preliminary Information About the Control NetMaster on the commercial dryer is an advanced, programmable computer that lets the owner control most machine features by pressing sequences of SELECT CYCLE pads. Refer to Figure 1. mode (START pad flashes) indicating that the user may press the START pad to resume the cycle. The POWER FAIL RESET may be set between 5 and 127 minutes. The factory default setting is 5 minutes and is turned off.

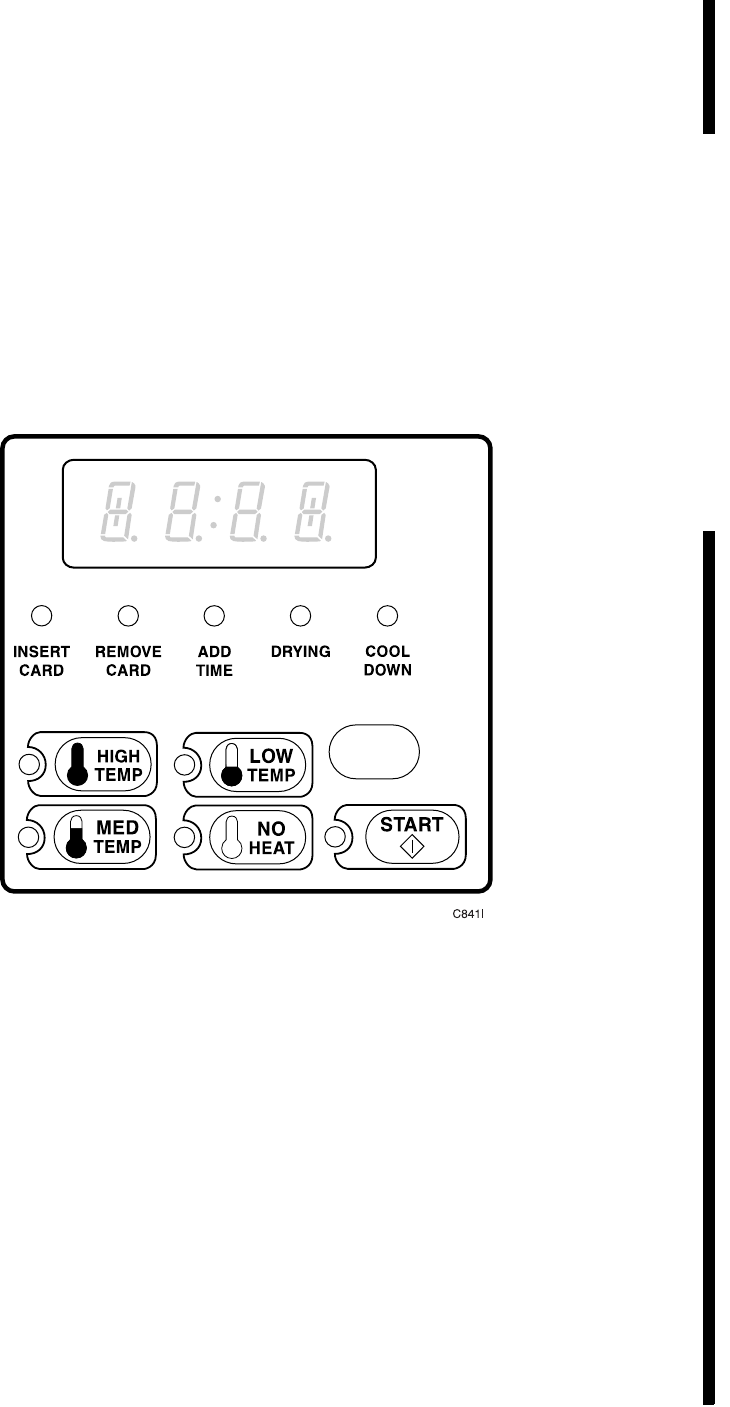

NetMaster Identification SELECT CYCLE Pads (Refer to Figure 1) START Pad (Refer to Figure 1) SELECT CYCLE pads are used to select the specific dryer cycle and temperature. These pads include HIGH TEMP, MED TEMP, LOW TEMP, and NO HEAT. The selection of one of these cycles will light up the corresponding LED. The factory default cycle is MED TEMP. The START pad is used to start the dryer after the full vend price has been satisfied and the dryer door is closed.
VFD Display Identification Light Emitting Diodes (LEDs) (Refer to Figure 1) LIGHT EMITTING DIODES (LEDs) are used to indicate the chosen temperature and cycle status. See below for information on each LED. INSERT COINS/CARD LED The INSERT COINS/CARD LED is lit to prompt the user to insert coins or a card to satisfy the vend price for the chosen cycle. The LED is lit during the “Ready” mode. During Partial and Additional Vend, the LED flashes one second on and one second off.
Dryer Operation Start Up When power is applied to the dryer, NetMaster becomes active and lights the default cycle LED (MED TEMP). In addition, the VFD will display the vend price of the default cycle and the INSERT COINS/CARD LED will be lit. This is referred to as the Ready Mode. Refer to Figure 2. The customer may select a different cycle if desired. The VFD display will show the current vend price for each cycle chosen. A customer may select the cycle before entering coins.
Dryer Operation When a cycle is complete, the VFD will display “00” until the door is opened, a key is pressed, or a coin or card is entered. Refer to Figure 4. When the door is opened, the VFD display will revert back to the Ready Mode. Refer to Figure 2. Entering Cards A card is entered to satisfy the programmed vend price for a selected cycle. The card may be entered before selecting a cycle or during an active cycle.
Dryer Operation Opening the Dryer Door Signals Opening the dryer door in a running cycle will automatically stop the cycle. When the dryer door is opened, the DRYING LED or COOL DOWN LED is turned off. There are four options where a signal may sound during the dryer operation. The owner may program when the signals will sound. These four options are listed below: 1. End of Cycle Signal By default, this signal is turned off. If enabled, the signal will sound for three (3) seconds at the end of a cycle.
NetMaster Special Features Programming NetMaster Sales Floor Feature NetMaster allows the dryer owner to program special features with the use of the keypad. Audit, diagnostic, cycle and vend information may be programmed and retrieved by pressing keypad combinations. The NetMaster dryer has a built-in sales floor feature used to display all the LED lights, the status words, and the four digits with the colon and decimal point.
NetMaster Special Features Start Pulse Operation Special Vend The control will accept pulses from a central card reader system. The machine can be programmed to receive a single start pulse or multiple start pulses, or the Start Pulse Option can be turned off. The Start Pulse Mode allows the machine to go from the Ready Mode to the “START” mode after a single pulse or multiple pulses are received.
Opening the Service Door Stacked Washers and Dryers, Stacked Dryers, Front Control Dryers, and Coin Rear Control Dryers Manually programming NetMaster requires the user to open and close the service door. Opening and closing the service door trips a switch allowing access to various programming options, diagnostics, and audit capabilities. On stacked dryers, stacked washers and dryers, and front control dryers, the service door is located in the control panel.
Entering the Manual Mode For programming, testing, and retrieving information from NetMaster, it is often necessary to enter the Manual Mode by following the four simple steps below. How to Enter the Manual Mode The rest of this section describes the six special features that Netmaster can enter. 1. Programming NetMaster 2. Collecting Audit Information 1. Be sure the dryer is in the Ready Mode before continuing to step 2. Refer to Figure 2.
Programming NetMaster What Can Be Programmed? This feature allows the owner to program cycle parameters, standard vend pricing, special vends, and other features by using the keypads. The control must have the Manual Programming Mode enabled, which is the factory default. This mode can only be turned OFF and ON by using the Micro-Wand IIIE, the Network, or a programming card. Refer to this section when programming NetMaster.
Programming NetMaster 1. Audio Signal “+001” This option allows the owner to program when the signal will sound. There are four occasions when a signal may sound during the dryer operation. These four occasions are listed below: 1. End of Cycle Signal By default, the signal is turned off. If turned on, the signal will sound for three seconds at the end of a cycle. 2. Keypad Depression Signal By default, this signal is turned on and will sound for a quarter of a second.
Programming NetMaster How to Exit Programming Feature 1. Be sure the control shows a programmable option, not a value. Signal Value Remove Coin/Card Card Input End of Cycle Key Pressed 0 OFF OFF OFF OFF 1 OFF OFF OFF ON 2 OFF OFF ON OFF 3 OFF OFF ON ON 4 OFF ON OFF OFF How to Read Table 1 5 OFF ON OFF ON To determine the correct number required to program the Audio Signal, use the following table. The Signal Value column contains the number required in step 5.
Programming NetMaster 2. Heat Vend Price “+002” This option allows the owner to set the vend price for a heated cycle. This vend price will be displayed in the VFD when in the Ready Mode. The vend price programmed in this option is used for all cycles except the NO HEAT cycle unless Special Vend or Site Code pricing is active. 4. When “+002” appears in the VFD, press the START (enter) keypad. There are five digits in the Heat Vend Price.
Programming NetMaster 6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 15. How to Exit Programming Feature 1. Be sure the control shows a programmable option, not a value. 2. While pressing and holding the MED TEMP keypad with one hand, press the LOW TEMP keypad with the other hand. The control will revert back to the Ready Mode. Refer to Figure 2. C827I C827I Figure 15 7.
Programming NetMaster 3. No Heat Vend Price “+003” This option allows the owner to set the vend price for a NO HEAT cycle. This vend price will be displayed in the VFD when NO HEAT is selected. How to Program the No Heat Vend Price 1. Control must be in Manual Mode. Refer to Entering the Manual Mode. 4. When “+003” appears in the VFD, press the START (enter) keypad. There are five digits in the No Heat Vend Price. The fifth digit will appear in the VFD and will flash one second on, one second off.
Programming NetMaster 6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 20. How to Exit Programming Feature 1. Be sure the control shows a programmable option, not a value. 2. While pressing and holding the MED TEMP keypad with one hand, press the LOW TEMP keypad with the other hand. The control will revert back to the Ready Mode. Refer to Figure 2. C827I C827I Figure 20 7.
Programming NetMaster 4. Card TopOff Price “+004” This option allows the owner to set the vend price for topoffs of drying time when using cards. This vend price will be displayed in the VFD. How to Program the Card TopOff Price 4. When “+004” appears in the VFD, press the START (enter) keypad. There are five digits in the Card TopOff Price. The fifth digit will appear in the VFD and will flash one second on, one second off. Refer to Figure 23. NOTE: If vend price is $100.
Programming NetMaster 6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 25. How to Exit Programming Feature 1. Be sure the control shows a programmable option, not a value. 2. While pressing and holding the MED TEMP keypad with one hand, press the LOW TEMP keypad with the other hand. The control will revert back to the Ready Mode. Refer to Figure 2. C827I C827I Figure 25 7.
Programming NetMaster 5. Site Code #1 Heat Vend Price “+005” This option allows the owner to set the vend price for heated cycles when cards with a special site code are used by specific groups or individuals. How to Program the Site Code #1 Heat Vend Price 4. When “+005” appears in the VFD, press the START (enter) keypad. There are five digits in the Site Code #1 Heat Vend Price. The fifth digit will appear in the VFD and will flash one second on, one second off. Refer to Figure 28.
Programming NetMaster 6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 30. How to Exit Programming Feature 1. Be sure the control shows a programmable option, not a value. 2. While pressing and holding the MED TEMP keypad with one hand, press the LOW TEMP keypad with the other hand. The control will revert back to the Ready Mode. Refer to Figure 2. C827I C827I Figure 30 7.
Programming NetMaster 6. Site Code #1 No Heat Vend Price “+006” This option allows the owner to set the vend price for no heat cycles when cards with a special site code are used by specific groups or individuals. How to Program the Site Code #1 No Heat Vend Price 4. When “+006” appears in the VFD, press the START (enter) keypad. There are five digits in the Site Code #1 No Heat Vend Price. The fifth digit will appear in the VFD and will flash one second on, one second off. Refer to Figure 33.
Programming NetMaster 6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 35. How to Exit Programming Feature 1. Be sure the control shows a programmable option, not a value. 2. While pressing and holding the MED TEMP keypad with one hand, press the LOW TEMP keypad with the other hand. The control will revert back to the Ready Mode. Refer to Figure 2. C827I C827I Figure 35 7.
Programming NetMaster 7. Special Vend A On/Off, A Day(s) of Week “+007” This option allows the owner to set the day or days of a special vend. Special Vend A is used to change the standard vend prices for special occasions or to turn the machine off. The special vend can be programmed to start and end on a specific day or days of the week. The owner may also turn the Special Vend A option on or off if desired. 4. When “+007” appears in the VFD, press the START (enter) keypad.
Programming NetMaster How to Read Table 2 To determine the correct number required to program the Special Vend A On/Off, A Day(s) of Week, use the following table. The “SPA” Value column contains the number required in step 6. The other columns correspond to individual days. Each column of days contains a unique combination of the words “ON” and “OFF” that indicates if that column’s day is turned on or off when the “SPA” value is entered.
Programming NetMaster “+007” (continued) “SPA” VALUE 79 81 83 85 87 89 91 93 95 97 99 101 103 105 107 109 111 113 115 117 119 121 123 125 127 129 131 133 135 137 139 141 143 145 147 149 151 153 155 157 159 161 163 165 167 169 SAT OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON FRI ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON OFF OFF OFF OFF OFF OFF OFF OFF OFF OF
Programming NetMaster “+007” (continued) “SPA” VALUE 171 173 175 177 179 181 183 185 187 189 191 193 195 197 199 201 203 205 207 209 211 213 215 217 219 221 223 225 227 229 231 233 235 237 239 241 243 245 247 249 251 253 255 SAT ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON FRI OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON THUR ON
Programming NetMaster 8. Special Vend A Start Hour “+008” 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the start hour to the desired hour. Refer to Figure 41. This option allows the owner to set the hour that Special Vend A will begin. 1 How to Program Special Vend A Hour 1. Control must be in Manual Mode. Refer to Entering the Manual Mode. 2. Press the LOW TEMP (+) or the NO HEAT (-) keypad until “PrOg” appears in the VFD.
Programming NetMaster 9. Special Vend A Length of Time “+009” This option allows the owner to set the length of time in hours for Special Vend A. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current length of time to the desired length of time. Refer to Figure 44. 1 How to Program Special Vend A Length of Time 1. Control must be in Manual Mode. Refer to Entering the Manual Mode. 2. Press the LOW TEMP (+) or the NO HEAT (-) keypad until “PrOg” appears in the VFD.
Programming NetMaster 10. Special Vend A Start Month “+010” 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the start month to the desired month. Refer to Figure 47. This option allows the owner to set the month that Special Vend A will begin. If “0” is selected and Special Vend A is on, Special Vend A will occur at the time and days of week selected, regardless of the month.
Programming NetMaster 11. Special Vend A Start Date “+011” 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the start date to the desired date. Refer to Figure 50. This option allows the owner to set the date that Special Vend A will begin. If “0” is selected and Special Vend A is on, Special Vend A will occur at the time or days of week selected, regardless of the date. How to Program Special Vend A Start Date 1. Control must be in Manual Mode.
Programming NetMaster 12. Special Vend A End Month “+012” 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the end month to the desired month. Refer to Figure 53. This option allows the owner to set the month that Special Vend A will end. If “0” is selected and Special Vend A is on, Special Vend A will occur at the time or day of week selected, regardless of the month. How to Program Special Vend A End Month 1 1. Control must be in Manual Mode.
Programming NetMaster 13. Special Vend A End Date “+013” This option allows the owner to set the date that Special Vend A will end. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the end date to the desired date. Refer to Figure 56. If “0” is selected and Special Vend A is on, Special Vend A will occur at the time or days of week selected, regardless of the date. How to Program Special Vend A End Date 1. Control must be in Manual Mode. Refer to Entering the Manual Mode.
Programming NetMaster 14. Special Vend A Site Code #1 “+014” This option allows the owner to program the machines to accept site codes for Special Vend A that are specific to select groups or individuals when using cards. It also allows the owner to only give Special Vend A pricing for a card with this site code. If Special Vend A site code #1 is zero, then Special Vend A pricing will apply to all cards. 4. When “+014” appears in the VFD, press the START (enter) keypad.
Programming NetMaster 7. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit. 8. Press the START (enter) keypad with the last active digit. The next option, “+015”, will appear in the VFD. How to Exit Programming Feature 1. Be sure the control shows a programmable option, not a value. 2.
Programming NetMaster 15. Special Vend A Heat Price “+015” This option allows the owner to set the vend price for a heated cycle in Special Vend A. The vend price programmed in this option is used for all cycles except the NO HEAT cycle. How to Program Special Vend A Heat Price 4. When “+015” appears in the VFD, press the START (enter) keypad. There are five digits in the Special Vend A Heat Price. The fifth digit will appear in the VFD and will flash one second on and one second off. Refer to Figure 64.
Programming NetMaster 6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 66. How to Exit Programming Feature 1. Be sure the control shows a programmable option, not a value. 2. While pressing and holding the MED TEMP keypad with one hand, press the LOW TEMP keypad with the other hand. The control will revert back to the Ready Mode. Refer to Figure 2. C828I C828I Figure 66 7.
Programming NetMaster 16. Special Vend A Heat Time Minutes “+016” This option allows the owner to set the amount of time in minutes for the heated cycles in Special Vend A. How to Program Special Vend A Heat Time Minutes 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 69. NOTE: Special Vend A Heat Time Minutes can be set from one (1) to 99 minutes. 1 1.
Programming NetMaster 17. Special Vend A Heat Time Seconds “+017” This option allows the owner to set the amount of time in seconds for the heated cycles in Special Vend A. How to Program Special Vend A Heat Time Seconds 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of seconds displayed in the VFD to the desired number of seconds. Refer to Figure 72. NOTE: Special Vend A Heat Time Seconds can be set from zero (0) to 59 seconds. 1 1.
Programming NetMaster 18. Special Vend A No Heat Price “+018” This option allows the owner to set the vend price for a no heat cycle in Special Vend A. 4. When “+018” appears in the VFD, press the START (enter) keypad. There are five digits in the Special Vend A No Heat Price. The fifth digit will appear in the VFD and will flash one second on and one second off. Refer to Figure 75. NOTE: If vend price is $100.00 or more, the fifth digit is “1”. If vend price is $99.99 or less, the fifth digit is “0”.
Programming NetMaster 6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 77. How to Exit Programming Feature 1. Be sure the control shows a programmable option, not a value. 2. While pressing and holding the MED TEMP keypad with one hand, press the LOW TEMP keypad with the other hand. The control will revert back to the Ready Mode. Refer to Figure 2. C828I C828I Figure 77 7.
Programming NetMaster 19. Special Vend A No Heat Time Minutes “+019” This option allows the owner to set the amount of time in minutes for the no heat cycle in Special Vend A. How to Program Special Vend A No Heat Time Minutes 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 80. NOTE: Special Vend A No Heat Time Minutes can be set from one (1) to 99 minutes. 1 1.
Programming NetMaster 20. Special Vend A No Heat Time Seconds “+020” This option allows the owner to set the amount of time in seconds for the no heat cycle in Special Vend A. How to Program Special Vend A No Heat Time Seconds 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of seconds displayed in the VFD to the desired number of seconds. Refer to Figure 83. NOTE: Special Vend A No Heat Time Seconds can be set from zero (0) to 59 seconds. 1 1.
Programming NetMaster 21. Special Vend A Coin #1 TopOff Minutes “+021” This option allows the owner to set the amount of topoff time in minutes for the Special Vend A Coin #1 option. How to Program Special Vend A Coin #1 TopOff Minutes 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 86. NOTE: Special Vend A Coin #1 TopOff Minutes can be set from one (1) to 59 minutes.
Programming NetMaster 22. Special Vend A Coin #1 TopOff Seconds “+022” This option allows the owner to set the amount of topoff time in seconds for the Special Vend A Coin #1 option. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of seconds displayed in the VFD to the desired number of seconds. Refer to Figure 89. NOTE: Special Vend A Coin #1 TopOff Seconds can be set from zero (0) to 59 seconds. How to Program Special Vend A Coin #1 TopOff Seconds 1 1.
Programming NetMaster 23. Special Vend A Coin #2 TopOff Minutes “+023” This option allows the owner to set the amount of topoff time in minutes for the Special Vend A Coin #2 option. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 92. NOTE: Special Vend A Coin #2 TopOff Minutes can be set from one (1) to 99 minutes. How to Program Special Vend A Coin #2 TopOff Minutes 1 1.
Programming NetMaster 24. Special Vend A Coin #2 TopOff Seconds “+024” This option allows the owner to set the amount of topoff time in seconds for the Special Vend A Coin #2 option. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of seconds displayed in the VFD to the desired number of seconds. Refer to Figure 95. NOTE: Special Vend A Coin #2 TopOff Seconds can be set from zero (0) to 59 seconds. How to Program Special Vend A Coin #2 TopOff Seconds 1 1.
Programming NetMaster 25. Special Vend A Auto-Shutdown Enable “+025” This option, when turned on, will force the control to shutdown during the Programmed Special Vend A time period, preventing customers from starting a new cycle after a selected time. “OFF” is displayed on the VFD when Auto-Shutdown is active. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current value displayed in the VFD to the desired value. Refer to Figure 98.
Programming NetMaster 26. Coin #1 Amount “+026” This option allows the owner to set a specific numerical value for a coin entered. For example, in the United States the coin value for one quarter would be measured in cents (25). Therefore, the coin amount entered for one quarter would be 00025. If the Heat Vend Price (option 2) is set for “.75”, and the Coin Amount is set for “00025”, the vend price displayed will decrease by .25 for each coin entered. 4.
Programming NetMaster 6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 103. How to Exit Programming Feature 1. Be sure the control shows a programmable option, not a value. 2. While pressing and holding the MED TEMP keypad with one hand, press the LOW TEMP keypad with the other hand. The control will revert back to the Ready Mode. Refer to Figure 2. C829I C829I Figure 103 7.
Programming NetMaster 27. Coin #2 Amount “+027” This option allows the owner to set a specific numerical value for a coin entered when using the dual coin drop. For example, the coin value for a dollar coin would be measured in cents (100). Therefore, the coin amount entered for one dollar coin would be 00100. If the Heat Vend Price (option 2) is set for “2.00”, and the Coin Amount is set for “00100”, the vend price displayed will decrease by 1.00 for each dollar coin entered. 4.
Programming NetMaster 6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 108. How to Exit Programming Feature 1. Be sure the control shows a programmable option, not a value. 2. While pressing and holding the MED TEMP keypad with one hand, press the LOW TEMP keypad with the other hand. The control will revert back to the Ready Mode. Refer to Figure 2. C827I C827I Figure 108 7.
Programming NetMaster 28. Start Pulse Value “+028” This option allows the owner to program the value of the Start Pulse if used for multiple pulses with an aftermarket central card reader or pay system. Refer to option 65 for additional information. How to Program Start Pulse Value 1. Control must be in Manual Mode. Refer to Entering the Manual Mode. 4. When “+028” appears in the VFD, press the START (enter) keypad. There are five digits in the Start Pulse Value.
Programming NetMaster 6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 113. How to Exit Programming Feature 1. Be sure the control shows a programmable option, not a value. 2. While pressing and holding the MED TEMP keypad with one hand, press the LOW TEMP keypad with the other hand. The control will revert back to the Ready Mode. Refer to Figure 2. C827I C827I Figure 113 7.
Programming NetMaster 29. Power Fail Reset “+029” This option allows the owner to set the amount of time NetMaster will store active cycle information in the event of a power failure. The default setting for Power Fail Reset is OFF. If Power Fail Reset is turned OFF, the cycle will be saved for up to six years. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number to the desired number selected from Table 3. Refer to Figure 116.
Programming NetMaster How to Read Table 3 Use this table to set the amount of time for Power Fail Reset. The table range begins at 0 and ends at 255. Numbers entered between 0 and 127 turn the option OFF. If a number in this range is entered, the current cycle status will be saved for up to six years. When power is restored, the cycle will begin where it was interrupted. If 133 is entered, the current cycle will be saved for up to five minutes.
Programming NetMaster 30. Default Cycle “+030” This option allows the owner to set the default cycle the machine will enter when in the Ready Mode. When programming the default cycle, refer to Table 4 on the following page. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number to the desired number selected from Table 4 on the following page. Refer to Figure 119. 1 How to Program Default Cycle 1. Control must be in Manual Mode. Refer to Entering the Manual Mode.
Programming NetMaster How to Read Table 4 To determine the correct number required to program Default Cycle, use the following table. The Default Value column contains the number required in step 5. The other columns correspond to individual options. Each column of options contains a unique combination of the words “ON” and “OFF” that indicates if that column’s option is turned on or off when the Default Value is entered.
Programming NetMaster 31. Set Real-Time Clock Minutes “+031” 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the minutes to the correct time. Refer to Figure 122. This option allows the owner to set NetMaster’s internal clock to the correct time in minutes. 1 How to Program the Clock Minutes 1. Control must be in Manual Mode. Refer to Entering the Manual Mode. 2. Press the LOW TEMP (+) or the NO HEAT (-) keypad until “PrOg” appears in the VFD.
Programming NetMaster 32. Set Real-Time Clock Hours “+032” 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the hours to the correct time. Refer to Figure 125. This option allows the owner to set NetMaster’s internal clock to the correct time in hours. 1 How to Program the Clock Hours 1. Control must be in Manual Mode. Refer to Entering the Manual Mode. 2. Press the LOW TEMP (+) or the NO HEAT (-) keypad until “PrOg” appears in the VFD.
Programming NetMaster 33. Set Real-Time Clock Day “+033” This option allows the owner to set NetMaster’s internal clock to the correct day of the week. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the day until correct. Refer to Figure 128. NOTE: Sunday is considered day one (001), Monday is day two (002) and so on. How to Program the Clock Day 1. Control must be in Manual Mode. Refer to Entering the Manual Mode. 1 2.
Programming NetMaster 34. Set Real-Time Clock Date “+034” 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the day of the month until correct. Refer to Figure 131. This option allows the owner to set NetMaster’s internal clock to the correct day of the month. 1 How to Program the Clock Date 1. Control must be in Manual Mode. Refer to Entering the Manual Mode. 2. Press the LOW TEMP (+) or the NO HEAT (-) keypad until “PrOg” appears in the VFD.
Programming NetMaster 35. Set Real-Time Clock Month “+035” 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the month until correct. Refer to Figure 134. This option allows the owner to set NetMaster’s internal clock to the correct month. 1 How to Program the Clock Month 1. Control must be in Manual Mode. Refer to Entering the Manual Mode. 2. Press the LOW TEMP (+) or the NO HEAT (-) keypad until “PrOg” appears in the VFD.
Programming NetMaster 36. Set Real-Time Clock Year “+036” 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the year until correct. Refer to Figure 137. This option allows the owner to set NetMaster’s internal clock to the correct year. NOTE: The year 2000 is 00, the year 2001 is 01 and so on. How to Program the Clock Year 1 1. Control must be in Manual Mode. Refer to Entering the Manual Mode. 2.
Programming NetMaster 37. Set Real-Time Clock Century “+037” 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the century until correct. Refer to Figure 140. This option allows the owner to set NetMaster’s internal clock to the correct century. NOTE: The digits 20 are used for century. How to Program the Clock Century 1 1. Control must be in Manual Mode. Refer to Entering the Manual Mode. 2. Press the LOW TEMP (+) or the NO HEAT (-) keypad until “PrOg” appears in the VFD.
Programming NetMaster 38. Heat Cycle Time Minutes “+038” This option allows the owner to set the amount of time in minutes for the Heat cycles. How to Program Heat Cycle Time Minutes 1. Control must be in Manual Mode. Refer to Entering the Manual Mode. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 143. NOTE: The Heat Cycle Time Minutes can be set from one (1) to 99 minutes.
Programming NetMaster 39. Heat Cycle Time Seconds “+039” This option allows the owner to set the amount of time in seconds for the Heat cycles. How to Program Heat Cycle Time Seconds 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of seconds displayed in the VFD to the desired number of seconds. Refer to Figure 146. NOTE: The Heat Cycle Time Seconds can be set from zero (0) to 59 seconds. 1. Control must be in Manual Mode. Refer to Entering the Manual Mode.
Programming NetMaster 40. No Heat Cycle Time Minutes “+040” This option allows the owner to set the amount of time in minutes for the No Heat cycle. How to Program No Heat Cycle Time Minutes 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 149. NOTE: The No Heat Cycle Time Minutes can be set from one (1) to 99 minutes. 1 1. Control must be in Manual Mode.
Programming NetMaster 41. No Heat Cycle Time Seconds “+041” This option allows the owner to set the amount of time in seconds for the No Heat cycle. How to Program No Heat Cycle Time Seconds 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of seconds displayed in the VFD to the desired number of seconds. Refer to Figure 152. NOTE: The No Heat Cycle Time Seconds can be set from zero (0) to 59 seconds. 1 1. Control must be in Manual Mode.
Programming NetMaster 42. High Temp Cool Down Time “+042” This option allows the owner to set the amount of cool down time in minutes for the High Temp cycle. How to Program High Temp Cool Down Time 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 155. NOTE: The High Temp Cool Down Time can be set from one (1) to 15 minutes. 1 1. Control must be in Manual Mode.
Programming NetMaster 43. Medium Temp Cool Down Time “+043” This option allows the owner to set the amount of cool down time in minutes for the Medium Temp cycle. How to Program Medium Temp Cool Down Time 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 158. NOTE: The Medium Temp Cool Down Time can be set from one (1) to 15 minutes. 1 1. Control must be in Manual Mode.
Programming NetMaster 44. Low Temp Cool Down Time “+044” This option allows the owner to set the amount of cool down time in minutes for the Low Temp cycle. How to Program Low Temp Cool Down Time 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 161. NOTE: The Low Temp Cool Down Time can be set from one (1) to 15 minutes. 1 1. Control must be in Manual Mode.
Programming NetMaster 45. Coin #1 TopOff Time (Minutes Per Coin) “+045” This option allows the owner to set the amount of topoff time in minutes for the Coin #1 option. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 164. NOTE: The Coin #1 TopOff Time can be set from one (1) to 60 minutes. The maximum amount of time, including the topoff time, is 99 minutes.
Programming NetMaster 46. Coin #1 TopOff Time (Seconds Per Coin) “+046” This option allows the owner to set the amount of topoff time in seconds for the Coin #1 option. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of seconds displayed in the VFD to the desired number of seconds. Refer to Figure 167. NOTE: The Coin #1 TopOff Time can be set from zero (0) to 59 seconds. How to Program Coin #1 TopOff Time (Seconds Per Coin) 1 1.
Programming NetMaster 47. Coin #2 TopOff Time (Minutes Per Coin) “+047” This option allows the owner to set the amount of topoff time in minutes for the Coin #2 option. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 170. NOTE: The Coin #2 TopOff Time can be set from one (1) to 60 minutes. The maximum amount of time, including the topoff time, is 99 minutes.
Programming NetMaster 48. Coin #2 TopOff Time (Seconds Per Coin) “+048” This option allows the owner to set the amount of topoff time in seconds for the Coin #2 option. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of seconds displayed in the VFD to the desired number of seconds. Refer to Figure 173. NOTE: The Coin #2 TopOff Time can be set from zero (0) to 59 seconds. How to Program Coin #2 TopOff Time (Seconds Per Coin) 1 1.
Programming NetMaster 49. Card TopOff Minutes “+049” 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 176. This option allows the owner to set the amount of topoff time in minutes for Card Reader machines. How to Program Card TopOff Minutes NOTE: The Card TopOff Minutes can be set from one (1) to 60 minutes. The maximum amount of time, including the topoff time, is 99 minutes.
Programming NetMaster 50. Card TopOff Seconds “+050” 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of seconds displayed in the VFD to the desired number of seconds. Refer to Figure 179. This option allows the owner to set the amount of topoff time in seconds for Card Reader machines. How to Program Card TopOff Seconds NOTE: The Card TopOff Seconds can be set from zero (0) to 59 seconds. 1. Control must be in Manual Mode.
Programming NetMaster 51. Coin #1 Bonus Time (Minutes Per Coin) “+051” This option allows the owner to set the amount of bonus time in minutes when using Coin #1 option. How to Program Coin #1 Bonus Time (Minutes Per Coin) 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 182. NOTE: The Coin #1 Bonus Time can be set from one (1) to 60 minutes. 1 1.
Programming NetMaster 52. Coin #1 Bonus Time (Seconds Per Coin) “+052” This option allows the owner to set the amount of bonus time in seconds when using Coin #1 option. How to Program Coin #1 Bonus Time (Seconds Per Coin) 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of seconds displayed in the VFD to the desired number of seconds. Refer to Figure 185. NOTE: The Coin #1 Bonus Time can be set from zero (0) to 59 seconds. 1 1.
Programming NetMaster 53. Coin #2 Bonus Time (Minutes Per Coin) “+053” This option allows the owner to set the amount of bonus time in minutes when using Coin #2 option. How to Program Coin #2 Bonus Time (Minutes Per Coin) 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 188. NOTE: The Coin #2 Bonus Time can be set from one (1) to 60 minutes. 1 1.
Programming NetMaster 54. Coin #2 Bonus Time (Seconds Per Coin) “+054” This option allows the owner to set the amount of bonus time in seconds when using Coin #2 option. How to Program Coin #2 Bonus Time (Seconds Per Coin) 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of seconds displayed in the VFD to the desired number of seconds. Refer to Figure 191. NOTE: The Coin #2 Bonus Time can be set from zero (0) to 59 seconds. 1 1.
Programming NetMaster 55. Configuration #1 “+055” This option allows the owner to turn ON or turn OFF preprogrammed capabilities within NetMaster. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number to the desired number selected from Table 5. Refer to Figure 194. How to Program Configuration #1 1 1. Control must be in Manual Mode. Refer to Entering the Manual Mode. 2. Press the LOW TEMP (+) or the NO HEAT (-) keypad until “PrOg” appears in the VFD.
Programming NetMaster Configuration #1 Programming Use the table on the following page (Table 5) to turn on or turn off the preprogrammed daylight savings option, infra-red access option, decimal point option, and the manual access option in NetMaster. To change any or all of these configuration options, review the following descriptions carefully and choose the appropriate configuration value from Table 5. Enter the appropriate value in step 5 on the previous page.
Programming NetMaster “+055” Config Value Manual Access Decimal Point Infra-red Access Daylight Savings 0 OFF OFF OFF OFF 1 OFF OFF OFF ON 4 OFF OFF ON OFF 5 OFF OFF ON ON 8 OFF ON OFF OFF 9 OFF ON OFF ON 12 OFF ON ON OFF 13 OFF ON ON ON 16 ON OFF OFF OFF 17 ON OFF OFF ON 20 ON OFF ON OFF 21 ON OFF ON ON 24 ON ON OFF OFF 25 ON ON OFF ON 28 ON ON ON OFF 29 ON ON ON ON Table 5 511210 © Copyright, Alliance Laundry Systems L
Programming NetMaster 56. Configuration #2 “+056” This option allows the owner to turn ON or turn OFF preprogrammed capabilities within NetMaster. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number to the desired number selected from Table 6. Refer to Figure 197. How to Program Configuration #2 1 1. Control must be in Manual Mode. Refer to Entering the Manual Mode. 2. Press the LOW TEMP (+) or the NO HEAT (-) keypad until “PrOg” appears in the VFD.
Programming NetMaster Configuration #2 Programming Use the table on the following page (Table 6) to turn on or turn off access for OPL mode and TopOff and to change Fahrenheit/Celsius, TopOff Vend/Card and minutes/seconds. Minutes or Min/Sec This option determines if minutes or minutes and seconds will be displayed in the VFD. MIN/SEC = Turns on the minutes and seconds display. MIN = Turns on the minutes only display.
Programming NetMaster “+056” Config #2 Value 0 1 2 3 8 9 10 11 16 17 18 19 24 25 26 27 32 33 34 35 40 41 42 43 48 49 50 51 56 57 58 59 Minutes/ Min/Sec MIN/SEC MIN/SEC MIN/SEC MIN/SEC MIN/SEC MIN/SEC MIN/SEC MIN/SEC MIN/SEC MIN/SEC MIN/SEC MIN/SEC MIN/SEC MIN/SEC MIN/SEC MIN/SEC MIN MIN MIN MIN MIN MIN MIN MIN MIN MIN MIN MIN MIN MIN MIN MIN TopOff Enable/Disable OFF OFF OFF OFF OFF OFF OFF OFF ON ON ON ON ON ON ON ON OFF OFF OFF OFF OFF OFF OFF OFF ON ON ON ON ON ON ON ON TopOff Type All Cards All Card
Programming NetMaster 57. Configuration #3 “+057” This option allows the owner to turn ON or turn OFF preprogrammed capabilities within NetMaster. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number to the desired number selected from Table 7. Refer to Figure 200. How to Program Configuration #3 1 1. Control must be in Manual Mode. Refer to Entering the Manual Mode. 2. Press the LOW TEMP (+) or the NO HEAT (-) keypad until “PrOg” appears in the VFD.
Programming NetMaster Configuration #3 Programming Use the table below (Table 7) to turn on or turn off access for Manual Rapid Advance and to change Available Output Mode. Manual Rapid Advance This option turns on or off the Manual Rapid Advance feature. OFF = Turns off Manual Rapid Advance. ON = Turns on Manual Rapid Advance. NOTE: Selecting “Ready Mode” for the available output will turn off the available output after the first pulse is received.
Programming NetMaster 58. High Temperature “+058” This option allows the owner to set the temperature of the High Temperature cycle. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of degrees displayed in the VFD to the desired number of degrees. Refer to Figure 203. How to Program High Temperature 1 1. Control must be in Manual Mode. Refer to Entering the Manual Mode. 2. Press the LOW TEMP (+) or the NO HEAT (-) keypad until “PrOg” appears in the VFD.
Programming NetMaster 59. Medium Temperature “+059” This option allows the owner to set the temperature of the Medium Temperature cycle. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of degrees displayed in the VFD to the desired number of degrees. Refer to Figure 206. How to Program Medium Temperature 1 1. Control must be in Manual Mode. Refer to Entering the Manual Mode. 2.
Programming NetMaster 60. Low Temperature “+060” This option allows the owner to set the temperature of the Low Temperature cycle. 5. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number of degrees displayed in the VFD to the desired number of degrees. Refer to Figure 209. How to Program Low Temperature 1 1. Control must be in Manual Mode. Refer to Entering the Manual Mode. 2. Press the LOW TEMP (+) or the NO HEAT (-) keypad until “PrOg” appears in the VFD.
Programming NetMaster 61. Lucky Option “+061” This option allows the owner to program the machine to provide a free vend cycle to customers after a certain number of machine cycles have occurred. For coin models, “FrEE” will be displayed five minutes after the completion of the programmed number of cycles has occurred. The cycle can then be started by pressing the START (enter) pad. For card models, when a card is inserted, the VFD will display “bAL” followed by the card balance.
Programming NetMaster 62. Smart Card Maximum Value “+062” This option allows the owner to set the maximum card balance that will be accepted. If a cash value card is inserted with a balance greater than this value, it will not be accepted. How to Program Smart Card Maximum Value 4. When “+062” appears in the VFD, press the START (enter) keypad. There are five digits in the Smart Card Maximum Value. The fifth digit will appear in the VFD and will flash one second on, one second off. Refer to Figure 215.
Programming NetMaster 6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 217. How to Exit Programming Feature 1. Be sure the control shows a programmable option, not a value. 2. While pressing and holding the MED TEMP keypad with one hand, press the LOW TEMP keypad with the other hand. The control will revert back to the Ready Mode. Refer to Figure 2. C868I Figure 217 7.
Programming NetMaster 63. Site Code #1 “+063” This option allows the owner to program a site code to correspond with the Site Code #1 pricing. This allows different pricing for a specific site code. 4. When “+063” appears in the VFD, press the START (enter) keypad. There are five digits in Site Code #1. The fifth digit will appear in the VFD and will flash one second on and one second off. Refer to Figure 220. How to Program Site Code #1 1. Control must be in Manual Mode.
Programming NetMaster 6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 222. How to Exit Programming Feature 1. Be sure the control shows a programmable option, not a value. 2. While pressing and holding the MED TEMP keypad with one hand, press the LOW TEMP keypad with the other hand. The control will revert back to the Ready Mode. Refer to Figure 2. C828I C828I Figure 222 7.
Programming NetMaster 64. Error Code Programming Parameter “+064” 6. Press the LOW TEMP (+) or the NO HEAT (-) keypad to increase or decrease the current number until correct. Refer to Figure 225. This option allows the owner to turn on or turn off certain errors in the control. 1 How to Program Error Code Programming Parameter 1. Control must be in Manual Mode. Refer to Entering the Manual Mode. 2. Press the LOW TEMP (+) or the NO HEAT (-) keypad until “PrOg” appears in the VFD.
Programming NetMaster How to Read Table 9 To determine the correct number required to program Error Code Programming Parameter, use the following table. The Error Code Value column contains the number required in step 6. The other column corresponds to Coin Error. The Coin Error column of options contains the words “ON” or “OFF” that indicate if that column’s option is turned on or off when the Error Code Value is entered. Select the option and enter the number found in the Error Code Value column.
Programming NetMaster 65. Start Pulse Mode “+065” This option allows the owner to program the Start Pulse Input. The Start Pulse Mode can be used for after-market central pay or card systems. The central system sends the start pulse to the Start Pulse Input of the control to start the cycle. If set for single pulse, one start pulse from the central system will start the cycle.
Collecting Audit Information This feature allows the owner to retrieve audit information stored in the dryer by pressing a sequence of pads on the control. For an explanation of the audit options available, see the Audit Options List on this page. Audit Options List # 1 How to Enter Audit Feature 2 1. Control must be in Manual Mode to start. Refer to Entering the Manual Mode. 2. Press the LOW TEMP (+) or the NO HEAT (-) keypad until “AUdT” appears. Refer to Figure 229.
Manual Reset This feature allows the owner to reset the dryer control’s programming data to the factory default settings by pressing a sequence of pads on the control. For an explanation of the Factory Default Settings, refer to Default Dryer Settings. How to Enter Manual Reset 1. Control must be in Manual Mode to start. Refer to Entering the Manual Mode. 2. Press the LOW TEMP (+) or the NO HEAT (-) keypad until “rSET” appears. Refer to Figure 231. DRY569R DRY569R Figure 231 3.
Testing Machine and NetMaster Functions This feature allows the owner to run diagnostic tests on various dryer operations without servicing the dryer. The following tests are available: How to Enter Testing Feature 1. Control must be in Manual Mode. Refer to Entering the Manual Mode.
Testing Machine and NetMaster Functions Diagnostic Test Descriptions Dryer Software Version Coin Drop #1 Test This option displays the control software version number. To start test, control must be in the Testing Mode. Refer to How to Start Tests at the beginning of this section. This option tests coin drop #1. To start test, control must be in the Testing Mode. Refer to How to Start Tests at the beginning of this section. To enter, press the START (enter) keypad.
Testing Machine and NetMaster Functions Dryer-on Temperature Test Machine Config Display This option tests the temperature inside the cylinder while running a cycle. To start test, control must be in the Testing Mode. Refer to How to Start Tests at the beginning of this section. This option shows the machine configuration values. VFD display “+009” shows configuration value #1, “+010” shows configuration value #2, and “+011” shows configuration value #3.
Error Codes Following is a list of possible error codes. Errors beginning with “EI” refer to NetMaster Infra-red communication errors. Errors beginning with “EC” Display Information refer to NetMaster card reader errors. All other errors refer to electronic control errors. Cause/ Corrective Action Description EI:01 Transmission Failure Communication failure. Re-aim Micro-Wand and try again. EI:02 Device Timeout Communication failure. Re-aim Micro-Wand and try again.
Error Codes Table 13 (Continued) Display Information Cause/ Corrective Action Description EC:22 Site Code Mismatch Incorrect card. Use card with correct site code. EC:23 Card Maximum Value Exceeded Value on card over max. Use a card which does not exceed maximum value. EC:24 Insufficient Memory on Card Card memory is full. Download card contents to PC and clear card for re-use. EC:25 Card Reader Malfunction Faulty card reader. Replace card reader. EC:26 Card Write Error Try card again.
Error Codes Table 13 (Continued) Display Information Cause/ Corrective Action Description Err Coin Error Invalid coin pulse or inoperative coin sensor. Check coin drop area and remove obstructions. If error persists, tampering may have occurred. Evaluate security procedures. OP Open Thermistor Physical open in the thermistor circuit. Replace thermistor. SH Shorted Thermistor Dead short in the thermistor circuit. Replace thermistor.
Sales Floor Feature The Sales Floor feature is used on a sales floor to allow the owner to turn on the entire VFD display and all LEDs. This feature is only available if the Manual Rapid Advance/Diagnostics Access is enabled. How to Enter Sales Floor Feature 1. Control must be in Manual Mode to start. Refer to Entering the Manual Mode. How to Exit Sales Floor Feature 1. Be sure service door is open. 2.
Rapid Advance Feature The Rapid Advance feature allows the owner to quickly advance through active cycles or advance into a cycle from the Ready Mode. NOTE: This feature is only available if the Manual Rapid Advance/Diagnostic Access is enabled. How to Enter Rapid Advance from Ready Mode 1. If control is in Ready Mode, control must be put into Manual Mode. Refer to Entering the Manual Mode. 2. Press the MED TEMP (+) or the LOW TEMP (-) keypad until “rAPd” appears in the display. 3.
Clear Vend Feature The Clear Vend feature allows the owner to clear a control which is in the middle of satisfying a vend price, and set it back to the Ready Mode. How to Clear Vend 1. Open the service door. Refer to Opening the Service Door. 2. Close the dryer loading door. 3. While pressing and holding the HIGH TEMP keypad with one hand, press the MED TEMP keypad with the other hand. The control will reset to the Ready Mode. Refer to Figure 2.
Power Fail Recovery The Power Fail Recovery feature allows the cycle status to be saved in memory in the event of a power failure. If the power failure lasted less than two (2) seconds, the cycle will resume without requiring the user to press the START (enter) keypad to restart. If the power failure lasted longer than two (2) seconds, the operation at power up will depend on the setting of the Power Fail Reset option.
Communications Mode Infra-red Communications The Infra-red Communications feature allows the dryer control to communicate with the Micro-Wand IIIE. The dryer control can be programmed and have its data read without using the keypad. It may also be used to start and stop various diagnostic tests. When using Infra-red Communications, the control will go blank and the VFD will display “-C-” until the communication is complete. The display will return to the previous mode.
Default Dryer Settings Default Settings Cycle Heat Time Cycle No Heat Time cycle HIGH TEMP COOL DOWN Time MED TEMP COOL DOWN Time LOW TEMP COOL DOWN Time HIGH TEMP MED TEMP LOW TEMP Coin #1 TopOff Time Coin #2 TopOff Time Card TopOff time Power Fail Reset Special Vend A, B, C, D Coin #1 Value Coin #2 Value Start Pulse Value Smart Card Maximum Value Start Pulse Mode Heat Vend Price No Heat Vend Price 511210 Default MED TEMP 45 min 45 min 3 min 3 min 3 min 155° F 145° F 115° F 15 min 60 min 15 min OFF (5 mi
