User Manual

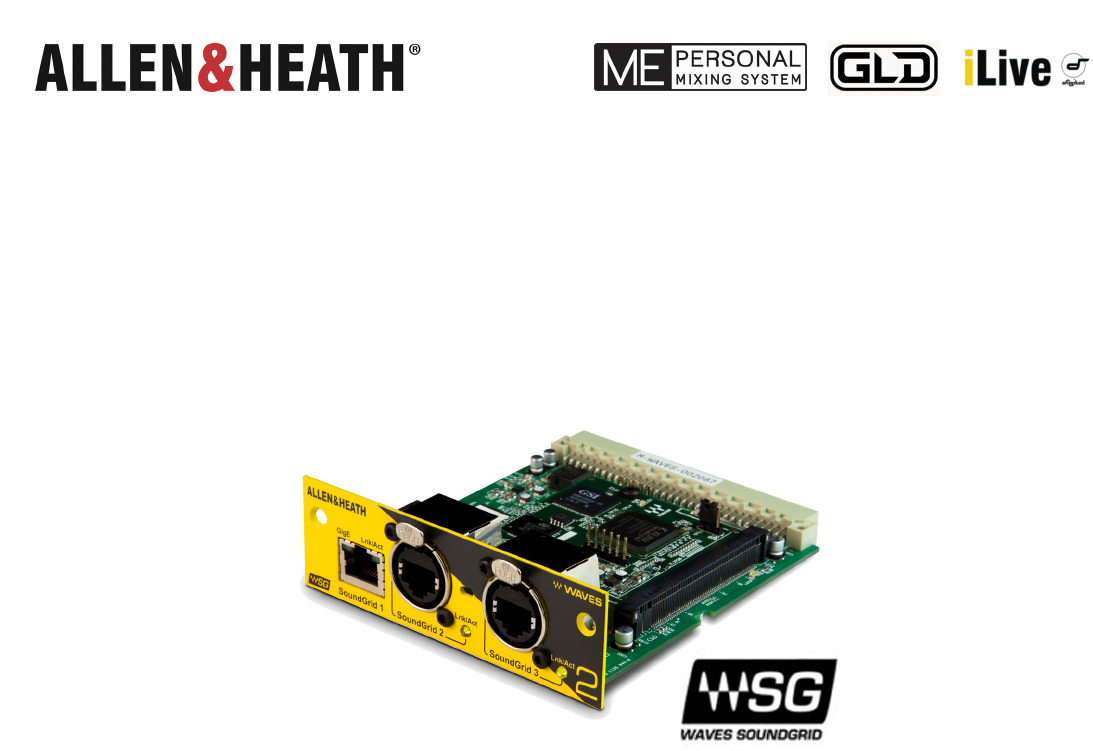

M-WAVES V2 is one of several audio networking card options available from Allen &

Heath that may be fitted to Allen & Heath digital mixing systems such as iLive, GLD and

ME. It uses the Audio-over-Ethernet SoundGrid networking and processing platform

developed by Waves to transport multi-channel audio to and from a computer for

processing using popular Waves plugins or for direct to computer multitrack recording

and playback.

Real-time audio processing can also be performed on low latency standard Intel-based

SoundGrid plugin servers, running a Waves-customized real-time version of Linux.

Key Benefits:

 64 channel bi-directional audio plus control over CAT5

 Extremely low latency SoundGrid networking

 Redundancy and Recovery options

 Runs on standard Intel CPUs and 1Gbps Ethernet networks

 Uses standard computers, switches, and servers

 Built-in 3-port Gigabit switch for connection to multiple devices

 Direct connection to computer for multitrack recording/playback

 Works with SoundGrid Studio software for ASIO or Core Audio

 Works with MultiRack software for multiple plug-in control

M-WAVES V2

Fitting Instructions

PAGE 1
M-WAVES V2 Fitting Instructions M-WAVES V2 is one of several audio networking card options available from Allen & Heath that may be fitted to Allen & Heath digital mixing systems such as iLive, GLD and ME. It uses the Audio-over-Ethernet SoundGrid networking and processing platform developed by Waves to transport multi-channel audio to and from a computer for processing using popular Waves plugins or for direct to computer multitrack recording and playback.
PAGE 2
Step 1 – Check the firmware version To use the M-WAVES V2 card please ensure you have the correct firmware version installed: iLive firmware version 1.90 or higher GLD firmware version 1.40 or higher ME-U firmware version 1.02 or higher To take advantage of new features and improvements we recommend that you check our site regularly and always keep your system up to date www.allen-heath.com/downloads/ Step 2 – Fit into the option slot Before starting switch off your system and unplug the mains cable.
PAGE 3
Step 3 – Power up the system With the M-WAVES V2 card fitted, connect and power up the system. The iLive/GLD will automatically detect the type of option card fitted. Check that this is displayed on the Status screen. Step 4 – Download and install the Waves software Go to the Waves web site to learn more about Waves for the Allen & Heath platform: http://www.waves.
