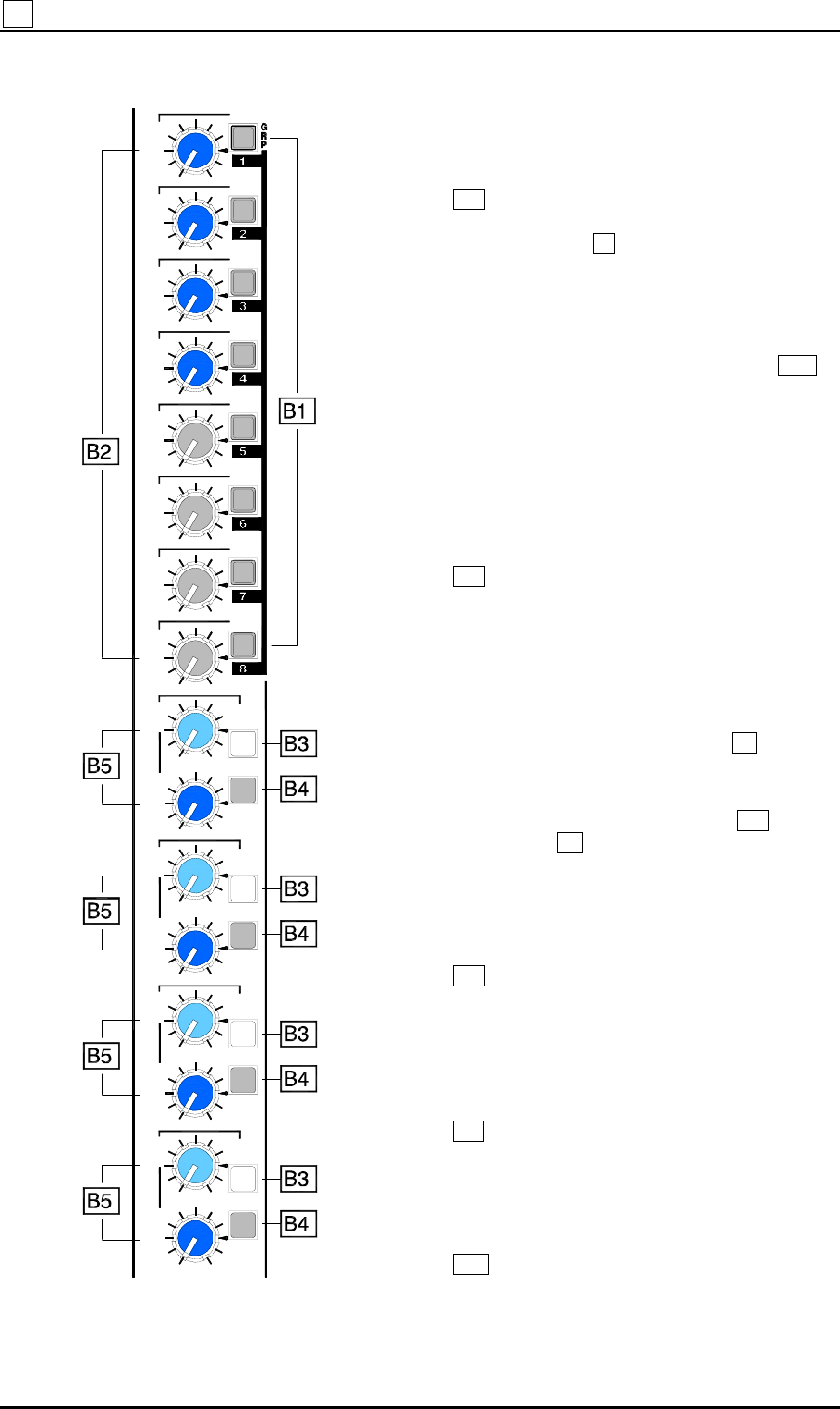

B GROUP / AUXILIARY SENDS
These controls send the channel signal to the audio
groups 1-8 and aux sends 1-16. They are the same
for both the mono and stereo channels.
B1 GRP/PRE. The function of these switches is
determined by the setting of the mode switches in
the master section F .
With the mode switch in its up position this
becomes the channel routing switch to the related
audio group. The level is not affected by the
associated rotary control. The signal is sourced
pre-pan unless the GRP PAN ON switch C4 is
pressed in which case it is post-pan. This allows
mono or stereo grouping.
With the mode switch in its down position this
becomes the pre/post switch for the related aux
send. The pre-fade source follows the setting of the
internal jumper links.
B2 AUX SEND 1-8. These rotary controls adjust
how much channel signal is sent to the auxiliary
outputs 1-8. For the stereo channels the left and
right signals are combined to provide a mono feed.
The 0dB position is marked at 3 o’clock. An extra
+6dB boost is available.
With the master mode switch in its up position it
affects the level to the rotary master H only. The
source is post-fade.
With the mode switch in its down position it affects
the level to both the rotary master H and the
fader master F . In this case the source is post-
fade to the rotary master and pre or post to the
fader master according to the position of its
associated PRE switch.
B3 STEREO. These configure aux 9-16 in pairs
for mono or stereo operation. In the up position
they become independent mono sends. In the
down position they become stereo pairs with
separate level and pan controls.
B4 PRE. Switches the channel pre-fade signal to
aux 9-16 in pairs. In the up position the source is
post-fade. The pre-fade source follows the setting
of the internal jumper links.
B5 AUX SEND 9-16. These rotary controls
adjust how much channel signal is sent to the
auxiliary outputs 9-16. They function according to
the position of the STEREO switches described
above. An extra +6dB boost is available.
OO +6
OO +6
STEREO
9
LEV
9-10
10
PAN
OO +6
OO +6
STEREO
LEV
11-12
12
PAN
OO +6
OO +6
STEREO
LEV
13-14
14
PAN
OO +6
OO +6
STEREO
LEV
15-16
16
PAN
11
13
15
PRE
PRE
PRE
PRE
1
OO +6
AUX
2
OO +6
AUX
3
OO +6
AUX
4
OO +6
AUX
5
OO +6
AUX
6
OO +6
AUX
7
OO +6
AUX
8
OO +6
AUX
PRE
PRE
PRE
PRE
PRE
PRE
PRE
PRE
