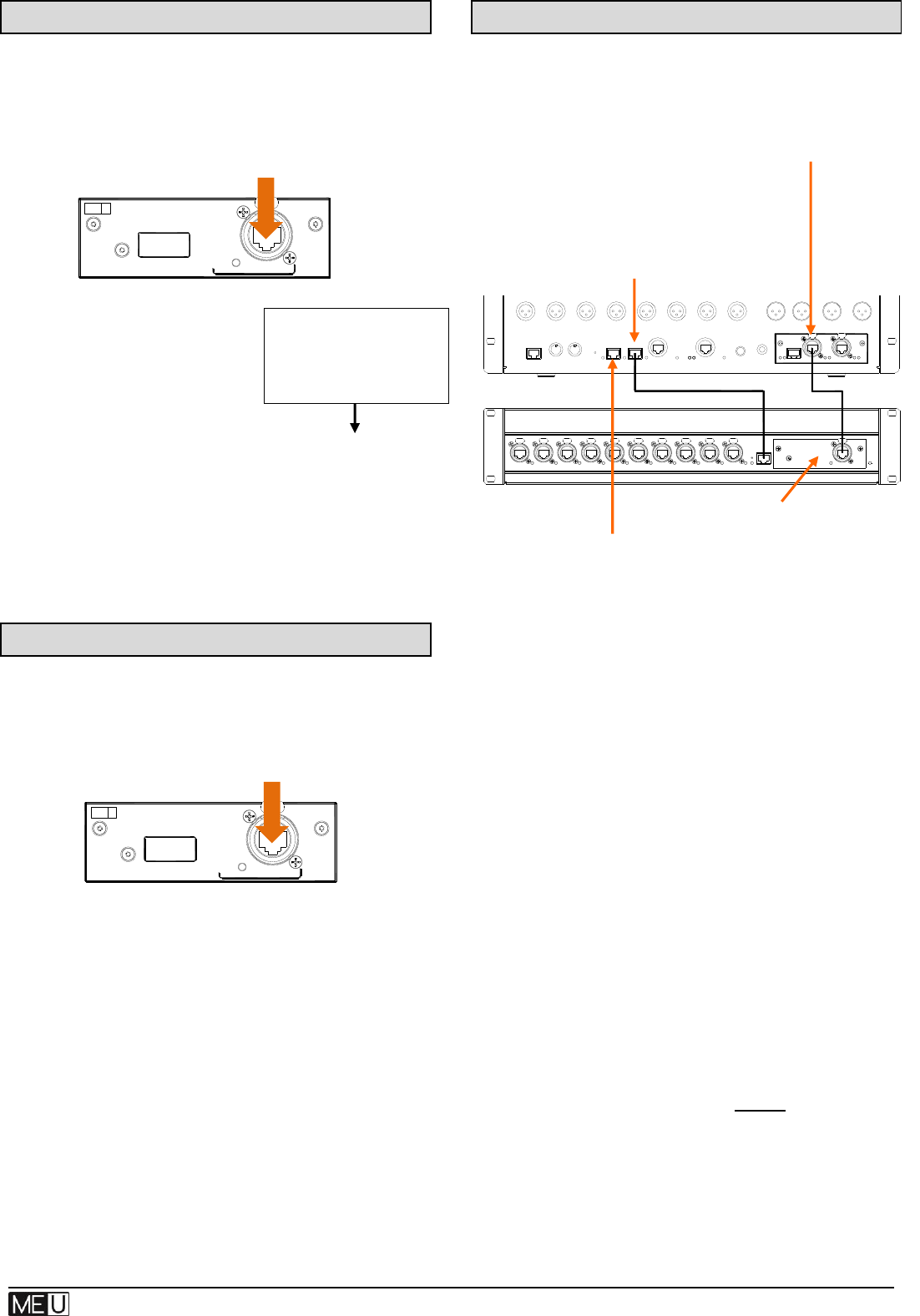

6.6 Input source – GLD mixer
Plug any GLD dSNAKE into the ME-D:
GLD mixer dSNAKE port
EXPANDER port
AR2412 rack MONITOR port
AR2412 / AB168 EXPANDER port
GLD can send:
 40 audio channels
 Channel names
 Stereo link information
Use the ME-U Setup Application:
Received names and stereo links 
Manual names and stereo links 
iLive Source Mode  (turn this off)
Use the GLD I/O / Monitor screen to select
‘ME-1 Mode’ and assign the 40 channel
sources and stereo links.
6.7 Input source – Qu mixer
Plug Qu dSNAKE into the ME-D:
Qu mixer dSNAKE port
AR2412 rack MONITOR port
AR2412 / AB168 EXPANDER port
Qu can send:
 40 audio channels
 Channel names
 Stereo link information
Use the ME-U Setup Application:
Received names and stereo links 
Manual names and stereo links 
iLive Source Mode  (turn this off)
Use the Qu Setup / Output Patch / Monitor
screen to assign the 40 channel sources.
Stereo sources and linked Input channels are
automatically linked and presented to the
ME-1 as stereo pairs.
6.8 Input source – iLive mixer ACE
Using the standard ME-D input card.
Plug iLive ACE from the MixRack Port B.
 Do not use the MixRack surface link ACE.
Plug your ME-U setup computer into any iLive
Network port.
Using 1 cable only - ACE:
 40 audio channels
No channel names and link information
Using 2 cables – ACE and Network:
 40 audio channels
 Channel names
 Stereo link information
Use the ME-U Setup Application:
Received names and stereo links 
Manual names and stereo links 
iLive Source Mode  (turn this on)
Select iLive MixRack from list
Use the iLive Outputs / Port B screen to
assign the 40 channel sources.
 Map Port B ACE outputs 21-60 to ME
channels 1-40:
Port B Ch21 = ME Ch1
Port B Ch22 = ME Ch2
Port B Ch23 = ME Ch3
-------
Port B Ch60 = ME Ch40
RX TX RX TX RX TX
IN
OUT
ES CONTROL PORT
IN 1 OUT AUX IN 2 OUT
IN1 thru
MADI 64
Lnk/Act Error Lnk/Act Error
OUT1 mirror
wclk OUT
wclk IN
ALLEN&HEATH
ALLEN&HEATH
ES V2
Control Network
Primary
Secondary
Lnk/Act
GigE
Lnk/Act
ALLEN
Lnk/Act
&
HEATH
Lnk/Act
Digital Input
Compatible with:
GLD dSNAKE
iLive ACE
Aviom 16
TM
ALLEN&HEATH
ME D
RX TX RX TX RX TX
IN
OUT
ES CONTROL PORT
IN 1 OUT AUX IN 2 OUT
IN1 thru
MADI 64
Lnk/Act Error Lnk/Act Error
OUT1 mirror
wclk OUT
wclk IN
ALLEN&HEATH
ALLEN&HEATH
ES V2
Control Network
Primary
Secondary
Lnk/Act
GigE
Lnk/Act
ALLEN
Lnk/Act
&
HEATH
Lnk/Act
Digital Input
Compatible with:
GLD dSNAKE
iLive ACE
Aviom 16
TM
ALLEN&HEATH
ME D
iLive MixRack Port B ACE
 Do not use the MixRack surface link ACE.
To receive channel names you
need to connect a second Cat5
cable from an iLive Network port
into the ME-U Network port.
ME-D standard card
ACE
Key:

= Available
 = Not available
