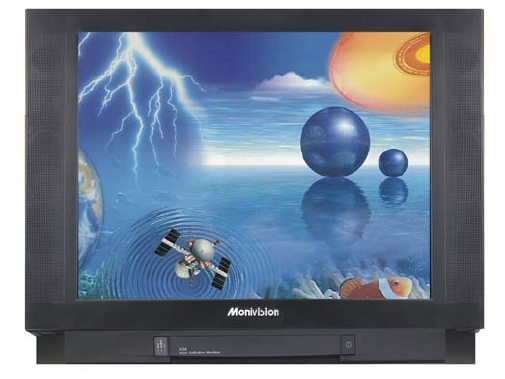

USER MANUAL High Definition Multimedia Pure Flat Monitor DM-5952KF / DM-6952KF A73110002790
1. FCC STATEMENT TABLE OF CONTENTS 1. FCC STATEMENT................................................................................. 1 2. SAFETY INSTRUCTIONS..................................................................... 2 3. README FIRST .................................................................................... 4 4. WITHOUT VISION CONVERTER ......................................................... 6 5. WITH【CT-1871】VISION CONVERTER ............................................ 7 6.
. Follow all warnings and instructions marked on the product. 12. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a frisk of fire or electric shock. Never spill liquid of any kind on the product. 13. Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel. 4.
3. README FIRST USING WITH A LAPTOP These easy start-up tips will guide you in making the connections to get you up and running. If you are using Notebook；Press Fn. + F5 (or Fn. + F3) to output the display to CRT only (CRT output combination key might be different on every notebook), or press combination key again to show on both CRT and LCD display. USING WITH A DESKTOP PC OR LAPTOP 1.
4. WITHOUT VISION CONVERTER 5. WITH【CT-1871】VISION CONVERTER Note：Only for Rev.K-1 or higher.
. WITH【CT-1890∕CT-1892】VISION CONVERTER 7. INSTALLATION Precautions Note：Only for Rev.K-1 or higher. Monitor shall be placed at least 6 inches away from the obstructer. a. Monitor will work well when connect with computer and any high definition receiver. With a high definition resolution, Monitor is designed without video converter with it. To work as a TV or using with VCR and DVD, you must to connect with a video converter. b.
6. Connect the Left and the Right audio channel to monitor. 7. Start the VCR. 8. Press the TV∕PC∕AV button or press S-VHS button by remote control until S-VHS appears on the screen. DVD player 1. Connect the Video input with Left and Right speaker on DVD. 2. Start the DVD player. 3. Press the TV ∕ PC ∕ AV button or press VIDEO button by Remote control until VIDEO appears on the screen. 4. If using the S-Video output of the DVD, connect an S cable from the DVD with monitor. 5.
. USING THE MONITOR This section describes how to use and make adjustments to the monitor. It also provides a reference to the control panel and the remote control. POWER (Toggle) Starts or stops the monitor function. DEGAUSS This is a dual function key: (PC⁄TV⁄AV) a. Switch the input source through TV∕PC∕VIDEO∕SVideo ∕COMPONENT∕TV while connect with a vision converter. Using the Control Panel Using control panel to control the monitor instead of the remote control.
. Using the Remote Control Using remote control instead of the control panel is convenient to operate the monitor. Some of the keys must to work by connect with MATE, and these are DISP, SLEEP, MTS, JUMP, ADD ∕ ERASE, AUTO, TV, VIDEO, S-VHS, COMPONENT, TV∕PC∕AV, TV∕CATA, PIC-STD, PIC∕PAGE, PIC-SEL, SYSTEM, FINE TUNING, CH-LOCK, FIELD, LANG, CAP∕TXT, CCD. Note: The mute function will automatically unlock if any adjusts are made related to audio (i.e., volume, bass, etc.
Note：Volume control function will effect while connect with Vision Converter. SET Through DM RS232 V0.9 (Serial Transmission Communication interface) to remote control the device. To identify the monitor, you must to set an ID number (ID=1~99) to each of the monitor under DM RS232 V0.9 Control page. SYSTEM Changes the video system on TV, Video, and S-VHS. System types are PAL, PAL-M, PAN-N, and SECAM. FINE TUNING Allows for fine-tuning of channels. CH-LOCK For Parental Control.
10. ACCESSING THE MAIN MENU Following lists the function keys on the OSD: Access the OSD Menu by control panel on the monitor or the remote control to make the operation. Note: Screen-1 Screen-2 Screen-3 Press the Menu button on the control panel or the remote control to display the main menu. Press the SEL +/- buttons on the control panel or remote control to scroll through the menu. Press the VOL +/-buttons on the control panel or the remote control to adjust the setting values.
Special Menu Fine tunes and sets the special functions manually: ID-NUMBER （ 1~99 ） 、 INSTANT-ON 、 DEGAUSS 、 AUTO-SAVING 、 AUTO DEGAUSS 、 AUTO SHIFT 、 OSD BACKGROUND、OSD CONTRAST、AND OSD H ∕V-POSITION、MOIRE、 KEY LOCK、PASSWORD. a. ID Number Through DM RS232 V0.9 (Serial Transmission Communication interface) to remote control the device. To identify the monitor, you must to set an ID number (ID=1~99) to each of the monitor under DM RS232 V0.9 Control page. 1. Select the ID number (1~99) by tab. g.
11. ENERGY SAVING 12. REAR CONNECTORS【CT-1871】 All monitor is Energy Star compliant. It contains special hardware that provides energy saving, automatic Stand By and Shut OFF features. After a period of time, the monitor will be in power-saving status automatically until the mouse or use the keyboard. Automatic Stand By and Shut OFF are set through a software program on your computer. Model DM-6952KF DM-5952KF MAX.
13. REAR CONNECTORS【CT-1890∕CT-1892】 1. AC in 2. VGA out 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. Video out Audio out (Left) Audio out (Right) Video in Audio in (Left) Audio in (Right) Audio in (Left) Audio in (Right) S-Video in VGA1 in Audio in Antenna in Y in 16. Pb∕Cb in 17. Pr∕Cr in 18. 19. 20. 21. Audio in (Left) Audio in (Right) RS-232 In RS-232 Out Connect the power source to the monitor. Video signal connector Output the signal to another monitor. Composite Video output to another device.
. Model：DM-6952KF SPECIFICATIONS 16. Model：DM-5952KF SPECIFICATIONS CRT Size∕Type 32V Pure flat square screens with 104-degree magnetic deflection, dynamic focus forming, and 75% transmission. CRT Size∕Type 27V Pure flat square screens with 108-degree magnetic deflection, dynamic focus forming, and 53.5% transmission. Dot Pitch（mm） 0.9mm Dot Pitch（mm） 0.
17. VGA CONNECTOR ASSIGNMENT 18. RS-232 CONNECTOR ASSIGNMENT 1 5 5 1 6 9 6 10 11 15 1. --------------------------- Red 2. --------------------------- Green 3. --------------------------- Blue 4. --------------------------- Ground 5. --------------------------- No Connection 6. --------------------------- R-Ground 7. --------------------------- G-Ground 8. --------------------------- B-Ground 9.
19. FACTORY PRESET AND COMPATIBLE MODE Mode Resolution H freq (kHz) V freq (Hz) H polarity V polarity Remarks 1 640×480 31.469 59.941 － － VGA 2 720×400 31.469 70.087 － ＋ VGA 3 640×350 31.469 70.087 ＋ － VGA 4 800×600 37.879 60.317 ＋ ＋ VESA 5 800×600 48.077 72.188 ＋ ＋ VESA 6 1024×768 48.363 60.004 － － VESA 7 480P 31.469 60.000 N/A N/A DTV 8 1080I 33.750 60.000 N/A N/A DTV 9 720P 45.000 60.000 N/A N/A DTV 10 800×600 35.150 56.
21. DM RS232 QUICK INSTALLATION Enjoy your new DM RS232 V0.9! ★ The version mow is V0.9 and will be updated in the future if necessary. Before install DM RS232 V0.9 software, you must to follow the steps below: 1. Make sure the monitors and computer is turned OFF. 2. Connect the Monitor (COM1/COM2 port) with your computer by DM RS232 V0.9 cable. Starting Setup Turn ON the monitor, and turn ON the computer. Before you can start Setup, the DM RS232 V0.
STATUS CONTROL There are 6 control entries under status control, the following statements are related to each Control function:（See Figure A） While without setting ID, （ ID=NO ） the Power 、 VGA 、 Instant 、 AutoSaving、Auto- Degauss、Auto- Shift modes and select mate signal can be controlled to ALL devices. Power VGA Instant Auto-Saving Auto-Degauss Auto-Shift Background Moiré 1. In general, select On to start the multi monitors’ functions by DM RS232 V0.9 control. 2.
Moire. Degauss Control: Picture Control: Select Moire. Degauss tab to adjust the H moire / V moire by drag the H scroll in the scroll bar. 1. Select any label on the picture frame to adjust the picture quality。 2. To adjust the color contrasts by drag the Scroll Bar or input an applicable value in each textbox on the control page. 3. Press Recall to restore the pre-set picture quality。 Color Control: 1. In the Color frame, select a direct label what you want to adjust to. 2.
