Operation
High Speed Doors
Electrical Operation Instructions
When the over-travel mechanism has been engaged, the power to the control system will be
disabled. The following procedure will reset the electrical system:
1. Turn the power off (wait 20 seconds) and then back on using the
main panel disconnect switch.

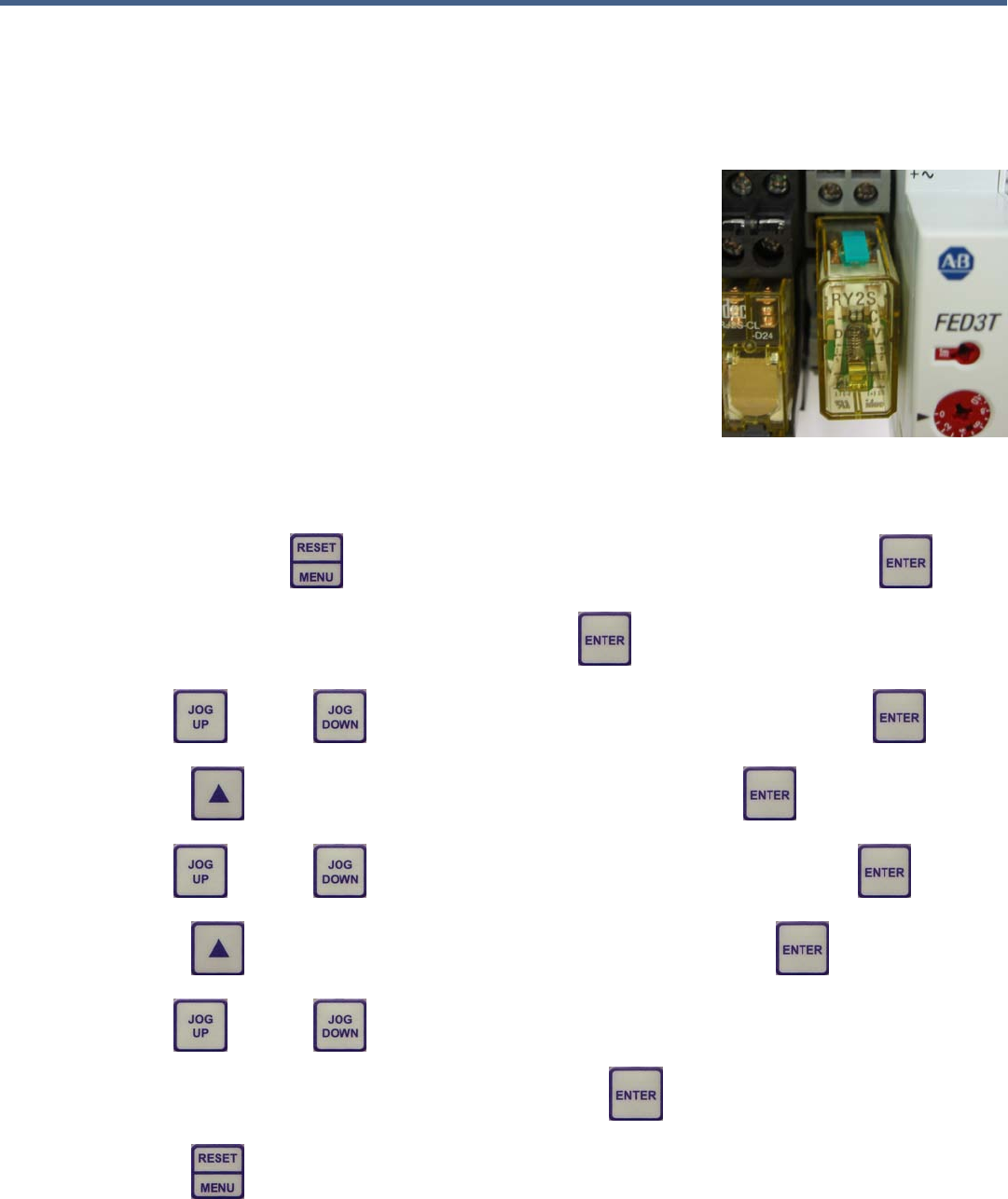

2. With the power on, open the control panel and locate the over-travel
sensor relay (shown here with teal override button).
3. Press and hold the teal override switch on the sensor relay and jog
the door down using the ―Emergency Jog Down‖ button on the face
of the C-Module.
4. Once the door has been lowered below the normal open position,
stop.
5. Reset the door limits as follows:
1) Press and hold until ―LIMIT SETUP‖ is shown on the display; Press
2) ―CLOSED LIMIT‖ should be displayed; Press
3) Use and/or to bring the door to the full closed position; Press
4) Press ―FULL OPEN LIMIT‖ should be displayed; Press
5) Use and/or to bring the door to the full open position; Press
6) Press ―PARTIAL OPEN LIMIT‖ should be displayed; Press
7) Use and/or to bring the door to the partial open position or set the
same as the full open position if not used; Press
8) Press until ―DOOR READY‖ is displayed
